Assembly Instruction - Cortex Omega CEM-10 CA Owner's Manual

NOTE: It is well suggested that two or more people to assemble this machine to avoid
any possible injury.
Remove all the security tape and wrapping before the installation.
Please refer the individual steps for the installation and pay attention to the preinstalled
hardware.
STEP 1

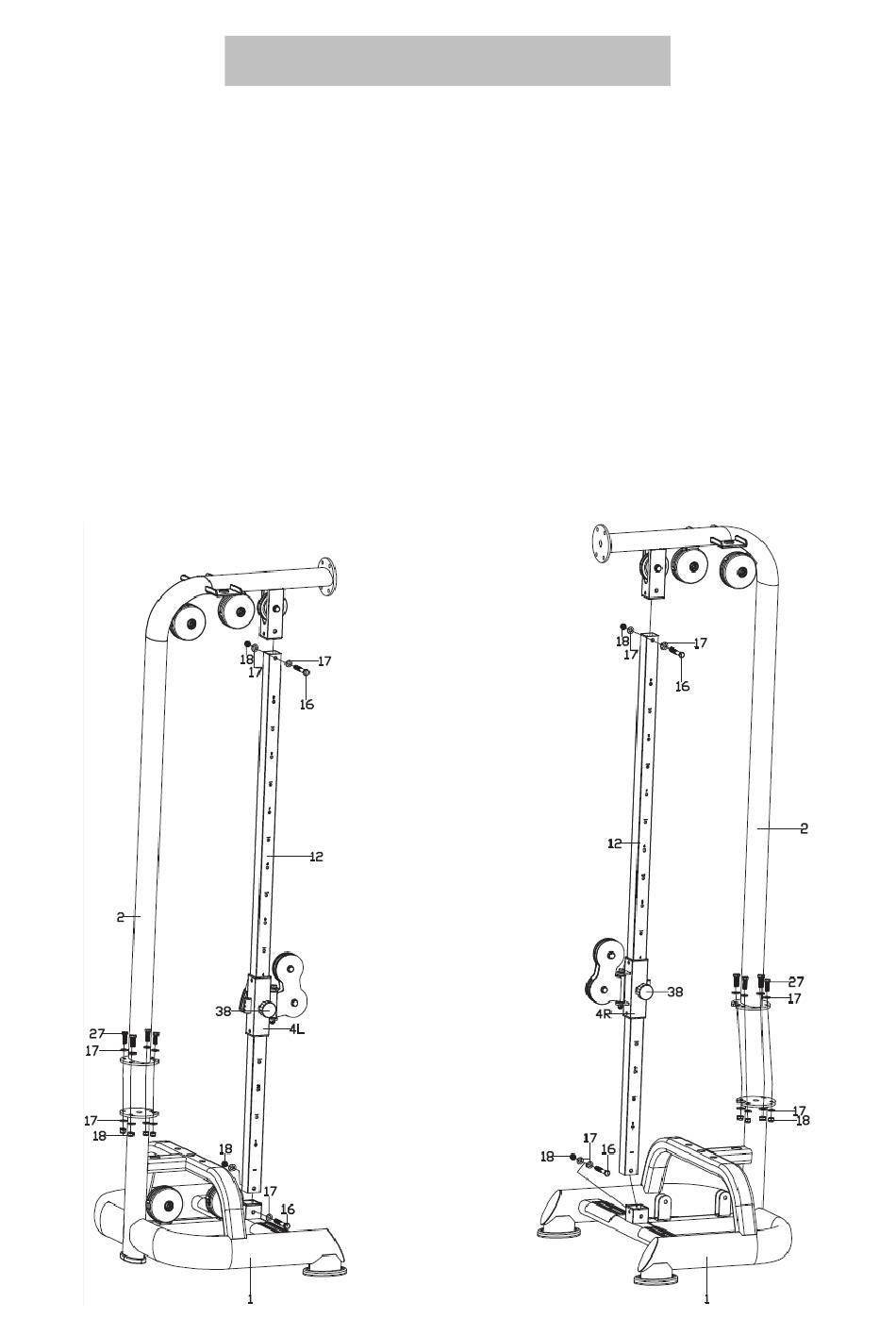

A: Insert the Slide Guide Joint (4L/R) to the Slide Guide Posts (12) and fasten with the Pop-pin
knob (38), then insert the Slide Guide Posts (12) to the Stabilizers (1) & Upright Frames (2),
secure with the Hex bolts (16), Flat washers (17) & Nylon nuts (18) as shown.
B: Fix the Upright Frames (2) onto the Stabilizers (1) with the Hex bolts (27), Flat washers (17) &
Nylon nuts (18).

ASSEMBLY INSTRUCTION

- 5 -
