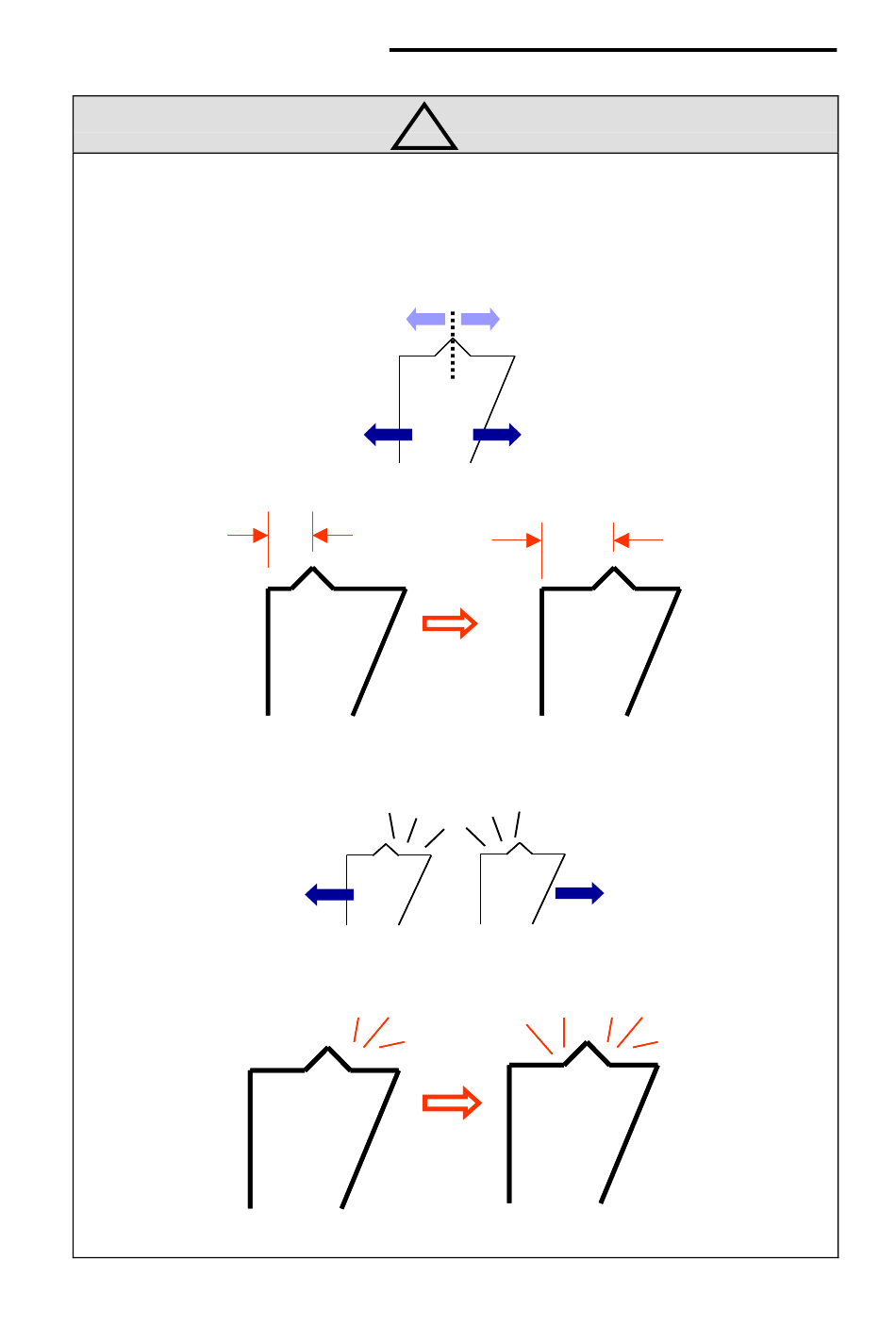

• Follow the next instructions to adjust the incorrect beveling.
a. The movement of beveled position
b. The effect of adding (-) value for the beveled position
c. The movement of polishing in bevel process
d. The effect of adding (-) for the polished position in bevel process
!
Bevel
Position
+
+
Front
-
-
Lens
Position
After adding (-) Bevel Position Value
Lens
-
-
Position
Front
After adding (-) Polish Bevel Value
NOTE
-
-
Rear
+
+
Lens
+
+
Position
Rear
