3. System Configurations

3.1 Main Body

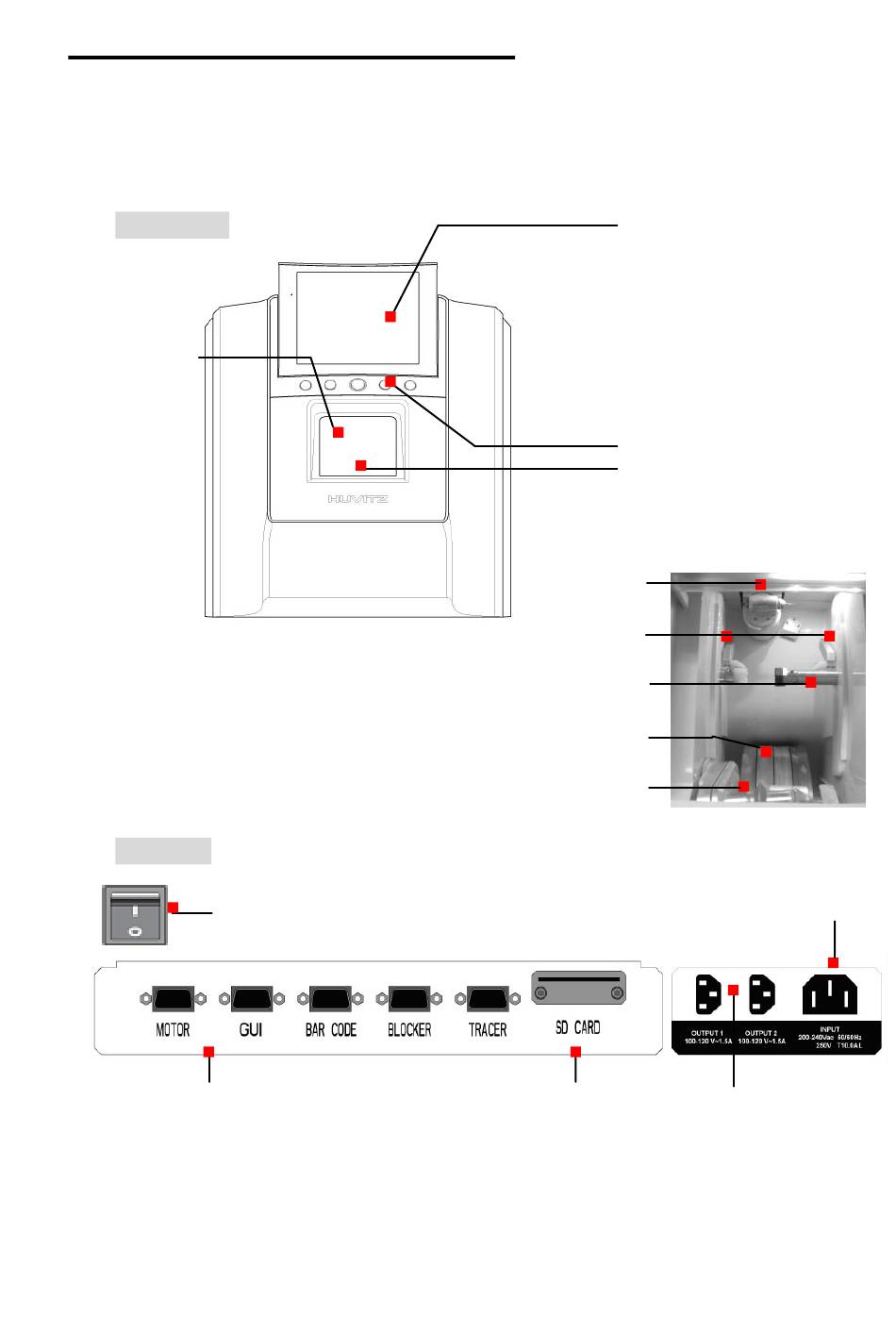

Front View
Edging
Room
Cover
(Auto)
Top View
Main Switch
Interface Terminal
• MOTOR/GUI : maintenance • BLOCKER : Auto Blocker
• BAR CODE: Barcode Reader • TRACER : Frame Reader
Wheel for Safety Beveling and Grooving
Excelon XD Operator's Manual
Drill
Lens Feeler
Clamp
Main Wheel
휠
Main power inlet and Fuse
Holder
SD memory card slot
Display window
(Touch Screen)
Operating Buttons
Edging Room
Power outlet for Pump I, II
