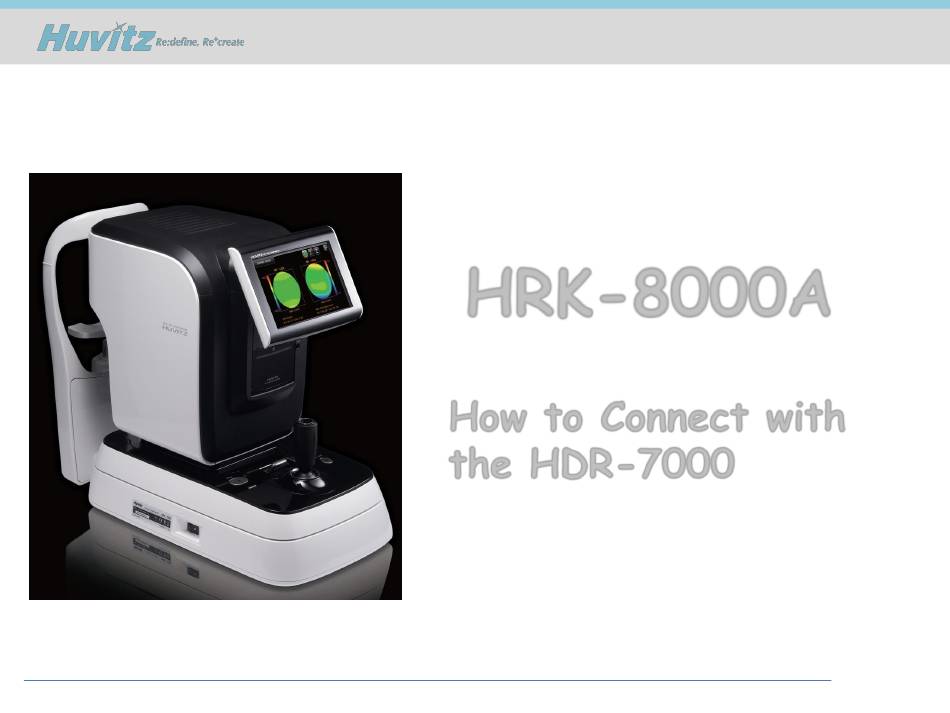

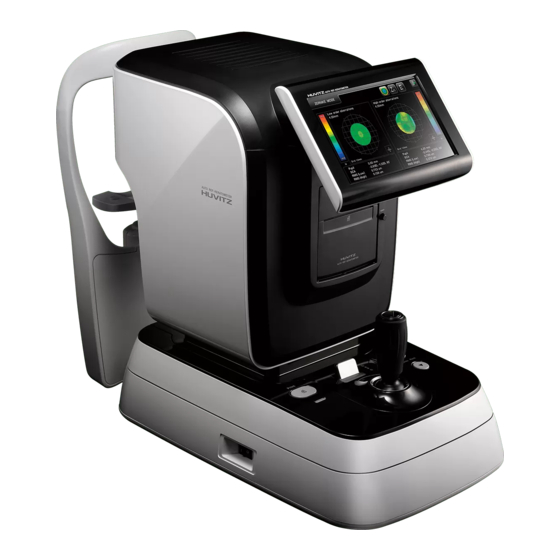

- Page 1 HRK-8000A How to Connect with the HDR-7000 HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 2 [HRK-8000A] How to Connect with the HDR-7000 2) Networked System 1) Stand-alone System with RK/LM (Direct Channel) HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 3 [HRK-8000A] How to Connect with the HDR-7000 1) Stand-alone System with RK/LM 2) Networked System (Direct Channel) Connect the both units using the Can Box. Use the 9-pin cable for direct channel for HRK HLM. 2) Use the 4-pin cable with Converter box...
-
Page 4: System Setup
[HRK-8000A] How to Connect with the HDR-7000 System Setup(1) First, please enter the Setup Mode of HRK-8000A And then, go to the page 3 for the “Communication” menu. * Set the BPS to 9600 * Set the RS232 to V2 or V1. - Page 5 [HRK-8000A] How to Connect with the HDR-7000 System Setup(2) Engineer Menu of Operation Panel Press SHIFT + MENU for entering the Engineer Menu HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 6 [HRK-8000A] How to Connect with the HDR-7000 System Setup(3) Engineer Menu of Operation Panel System Setting “Printer To Serial” to Set the HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 7 [HRK-8000A] How to Connect with the HDR-7000 System Setup(4) Engineer Menu of Operation Panel System Setting “Chart Connection” to Set the Serial HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 8 [HRK-8000A] How to Connect with the HDR-7000 After checking, measure an eye on the HRK-8000A. And press the PRINT button, HRK transmit the data to HDR. HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
- Page 9 [HRK-8000A] How to Connect with the HDR-7000 LOAD RK RK-000023 Please click the LOAD button And when click the button on the OP on the Operation panel(OP). you can see the data of HRK-8000A. HUVITZ Co.,Ltd Customer Service Department 2012. 10. 26...
