- Page 1 ----------------------------------------------------------------- Smart Blocker Operator’s Manual Operator’s Manual Smart Blocker HBK-7000...
- Page 2 HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.
-
Page 3: Table Of Contents
----------------------------------------------------------------- Smart Blocker Operator’s Manual CONTENTS Safety Information ....................5 1.1. Introduction ......................5 1.2. Safety Symbols ....................6 1.3. Environment Factors ..................7 1.4. Safety Precaution ....................9 Features ......................12 Notes for Using the Instrument................. 14 Configurations ....................15 Main Body – front view ..................15 4.1. - Page 4 Smart Blocker Operator’s Manual ----------------------------------------------------------------- 6.2. Designing Layout ..................... 28 6.2.1. Selecting layout options ................28 6.2.2. Inputting layout data ................. 29 6.2.3. Shape and drilling layout design .............. 30 6.3. Setting Edging Options ..................31 6.4. Other functions ....................33 Troubleshooting....................
-
Page 5: Safety Information
----------------------------------------------------------------- Smart Blocker Operator’s Manual Safety Information 1.1. Introduction Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install, use, clean, service or adjust this equipment and any associated accessories. -
Page 6: Safety Symbols
Smart Blocker Operator’s Manual ----------------------------------------------------------------- 1.2. Safety Symbols The International Electro technical Commission (IEC) has established a set of symbols for medical electronic equipment, which classify a connection or warn of any potential hazard. The classifications and symbol s are shown below. Save this instruction I and O on power switch represent ON and OFF respectively. -
Page 7: Environment Factors
----------------------------------------------------------------- Smart Blocker Operator’s Manual 1.3. Environment Factors Avoid the following environments for operation or storage: Where the equipment is exposed to water vapor. Don’t operate equipment with a wet hand. Where the equipment is exposed to direct sunlight. Where the temperature changes extremely. Normal operating temperature range is from 10℃... - Page 8 Smart Blocker Operator’s Manual ----------------------------------------------------------------- Where equipment is exposed to chemical material or explosive gas. Be careful not to be inserted dust, especially, metal. Don’t disassemble the product or open. We aren’t responsible for it for nothing. Be careful not to close the fan located on the lateral or rear side of the equipment.
-
Page 9: Safety Precaution
Installation and modifications of this equipment may only be carried out by Huvitz’s service technicians or other authorized persons by Huvitz. Customer maintenance of this equipment may only be performed as stated in the Operator’s Manual. Any additional maintenance may only be performed by Huvitz’s service technicians or other authorized persons. - Page 10 Such tampering will forfeit any right to claim under warranty. This equipment may only be used together with accessories supplied by Huvitz. If the customer makes use of other accessories, use them only if their safe usability under technical aspect has been proved and confirmed by Huvitz or the manufacturer of the accessory.
- Page 11 ----------------------------------------------------------------- Smart Blocker Operator’s Manual not installed and used in accordance with the instructions, may cause harmful interference to other instruments in the vicinity. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to other instruments, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
-
Page 12: Features

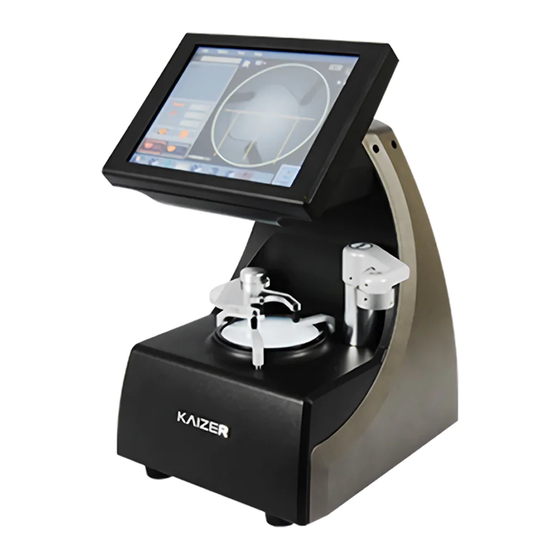

Smart Blocker Operator’s Manual ----------------------------------------------------------------- Features The Huvitz Smart Blocker HBK-7000 is a blocking instrument used to attach a lens cup on a lens to edge in the lens edger such as CPE-4000 and HPE-7000. In the meantime it provides interfaces for data communication to receive frame shape data from the Frame Reader and to transmit edging job data to the Lens Edger for edging. - Page 13 ----------------------------------------------------------------- Smart Blocker Operator’s Manual In addition to blocking function, the operator can easily adjust the viewing angle of the display by pushing and pulling the display panel.
-
Page 14: Notes For Using The Instrument
Smart Blocker Operator’s Manual ----------------------------------------------------------------- Notes for Using the Instrument Do not hit or drop the hardware instrument. The hardware instrument may be damaged if it receives a strong impact. The impact can damage the function of the instrument. So handle it with care. Install the hardware instrument on a level, stabilized table with no vibration to keep it normal state. -
Page 15: Configurations
----------------------------------------------------------------- Smart Blocker Operator’s Manual Configurations Main Body – front view 4.1. ① Display Panel ③ Blocking Arm ② Lens Holder ⑤ Block Holder ④ Lens Leveler ① Display Panel Color LCD panel along with touch interface. Displays live images of the working stage and various menu icons and input fields for designing en edging job. -
Page 16: Main Body - Rear View
Smart Blocker Operator’s Manual ----------------------------------------------------------------- Holds the lens on the lens leveler for blocking. ③ Blocking Arm Provides the block holder and the handle for blocking. ④ Lens Leveler Balances the lens level with three level foots. ⑤ Block Holder Holds the lens block to be attached on the lens. - Page 17 ----------------------------------------------------------------- Smart Blocker Operator’s Manual ① SD Card Socket Inserts SD card memory. ② Communication Ports Provides connection ports for other instruments or devices. Edger1 port for the first lens edger Edger2 port for the second lens edger ...
-
Page 18: Displays
Smart Blocker Operator’s Manual ----------------------------------------------------------------- 4.3. Displays Below screen shows the main display for designing an edging job. Menu Bar Job Number R-side Selection L-side Selection Preview R/L Sync. Layout Menu Touch Lock Live Image Area Edging Option Men Transmission Button ... - Page 19 ----------------------------------------------------------------- Smart Blocker Operator’s Manual ecuting display control functions. Help menu provides the system infor mation. Job Number The job number field shows the job number of current job data. Touching the field area executes the dialog window for inputting a new job number for a newly created job.
- Page 20 The digital pattern function allows the operator to modify or change the frame shape. The hole & notch design function allows the operator to add drilling job information if the Smart Blocker is connected to the Huvitz HPE- 7000 lens edger.
-
Page 21: Installation
----------------------------------------------------------------- Smart Blocker Operator’s Manual Installation Before proceeding to install a HBK-7000 blocker with a lens-edging system, check the package components listed in chapter 8 of this manual. It is strongly required to pay attention to every instruction or information on the package and handle with care for every part when opening and pulling out the contents in the package. -
Page 22: Interfacing With Frame Reader
Smart Blocker Operator’s Manual ----------------------------------------------------------------- responding at all, check if the “Touch Lock” button is enabled. In that case touch the button once to unlock the touch screen. Edger-2 Edger-1 Barcode Tracer Console 5.1.1. Interfacing with Frame Reader Step 1, Turn the power of instruments off, both the Frame Reader and the Smart Blocker. -
Page 23: Interfacing With Lens Edger
----------------------------------------------------------------- Smart Blocker Operator’s Manual Step 6, Turn the power of the Smart Blocker on and wait until it displays the main screen. Step 7, Put a frame on the grippers of the Frame Reader and press the button “BOTH” for reading it. -
Page 24: System Configuration
The other type is to interface is with one Frame Reader and two sets of Lens Edger. NOTE Any model of Huvitz lens edger is allowed to be interfaced with other than CPE- 3000. And any model of Huvitz Frame Reader is allowed to be interfaced with other... -
Page 25: Using The Instrument
----------------------------------------------------------------- Smart Blocker Operator’s Manual Using the Instrument 6.1. Starting a Job There are two ways of starting a job for blocking. One is to start with a frame shape data newly received from the Frame Reader. The other is to start with a job data in the memory, either in the internal memory or in the external SD memory. -
Page 26: Starting A Job With A Memory Data
Smart Blocker Operator’s Manual ----------------------------------------------------------------- 6.1.2. Starting a job with a memory data The Smart Blocker not only provides preset frame shape data in its internal memory but also supports saving and loading job data from the external memory interface. The Job menu in the menu bar provides all the job related functions such as saving a job, loading a job and etc. - Page 27 ----------------------------------------------------------------- Smart Blocker Operator’s Manual Blocker if available. Loading a job data button on the bottom of the “Job Manager” dialog, it loads Touch the selected job data and opens it.
-
Page 28: Designing Layout
Smart Blocker Operator’s Manual ----------------------------------------------------------------- 6.2. Designing Layout Layout design can be viewed as three different works, selecting layout options, inputting layout data, shape and drilling layout design. 6.2.1. Selecting layout options Frame PD inputs frame PD value. It’s automatically input when a frame is traced on both sides by the Frame Reader. -
Page 29: Inputting Layout Data
----------------------------------------------------------------- Smart Blocker Operator’s Manual inputs monocular PD value. inputs binocular PD value. Blocking Mode selects the boxing center mode. selects the optical center mode. Lens Type selects the type for a single vision lens marked by a lensmeter. Other types of lens are also can be blocked by this type if the operator is to block a lens by marking on the blocking position with a lensmeter. -
Page 30: Shape And Drilling Layout Design
Smart Blocker Operator’s Manual ----------------------------------------------------------------- 6.2.3. Shape and drilling layout design The Smart Blocker allows the operator changes the frame shape to edge by using the Digital Pattern function in case the operator is determined that frame-fitting is not affected by it. In case the Smart Blocker is interfaced with a lens edger that supports drilling function, the operator can design and add layout info for drilling by using the “Hole &... -
Page 31: Setting Edging Options
----------------------------------------------------------------- Smart Blocker Operator’s Manual 6.3. Setting Edging Options Edging options are provided to allow the operator sets edging condition for each job. Edging conditions selected in the Smart Blocker are transmitted to the lens edger with other job information and set automatically on the edger’s LCD screen when it’s loaded. Those options are also able to be re-edited on the edger’s LCD screen before starting edging. - Page 32 Smart Blocker Operator’s Manual ----------------------------------------------------------------- Polishing selects polishing option on. selects polishing option off. Safety Bevel – Front selects no safety bevel. selects normal safety bevel. Safety Bevel – Rear selects no safety bevel. ...
-
Page 33: Other Functions
----------------------------------------------------------------- Smart Blocker Operator’s Manual 6.4. Other functions There are some other functions that are not used for designing layout and setting edging options. R/L Selection selects right side for designing and blocking. selects left side for designing blocking. ... -
Page 34: Troubleshooting
Smart Blocker Operator’s Manual ----------------------------------------------------------------- Troubleshooting 7.1. The Smart Blocker does not start Check if the power cord is connected correctly. Pull out the fuse holder and check if any of the fuses is burned. If any of them is burned, replace it with the same type. -
Page 35: The Lens Edger Doesn't Receive Any Data From The Smart Blocker
----------------------------------------------------------------- Smart Blocker Operator’s Manual interface cable with the same type provided by Huvitz. The Lens Edger doesn’t receive any data from the Smart 7.4. Blocker Check if the serial interface cable is connected and fixed firmly. Check if the port of the Lens Edger where the Smart Blocker is connected is either “Tracer”... -
Page 36: Components List
Smart Blocker Operator’s Manual ----------------------------------------------------------------- Components List 8.1. Standard Components Main Body 1 EA Touch Pen 1 EA SD Memory Card 1 EA Extra Lens Support (for frame change) 1 EA Power Cord 1 EA Interface Cable (9-pin DSub Serial, 2m) 1 EA Spare Fuse (250Vac T3.15AL) 2 EA... -
Page 37: Service Information
Descriptions of Problem: In detail Date of Purchase: Dealer’s Name: Dealer Address: Dealer Phone No.: Version No.: Serial No.: ( Huvitz recommends customers to fill up the above form after purchase and retain this manual as a permanent record of purchase.) - Page 38 Smart Blocker Operator’s Manual ----------------------------------------------------------------- Write us at: Tel: +82-31-442-8868 HUVITZ Co., Ltd. Fax: +82-31-442-8619 Huvitz B/D, 689-3 Geumjeong-dong http://www.huvitz.com Gunpo-si Gyeonggi-do, 435-862, e-mail: service@huvitz.com Republic of Korea...
-
Page 39: Appendix A. Specifications
----------------------------------------------------------------- Smart Blocker Operator’s Manual Appendix A. Specifications Layout Ranges Lens Size Max. 80 mm Frame PD 30 ~ 99.5 mm 30 ~ 99.5 mm (Monocular PD : 15 ~ 49.75 mm) ±15 mm Optical Height Layout Options FPD Frame PD ... - Page 40 Smart Blocker Operator’s Manual ----------------------------------------------------------------- Edging Options Plastic Poly-carbonate High Index Lens Material Glass (Mineral) Trivex Bevel Grooving Edging Type Flat Supported Polishing Front (Single level) Safety Bevel Rear (2 levels) ...
- Page 41 ----------------------------------------------------------------- Smart Blocker Operator’s Manual Frame Reader 1 channel 2 channels Lens Edger 1 channels Barcode Reader Power Input AC 100-240V~ Frequency 50 / 60 Hz Consumption 35 W Dimensions & Weight Dimension 220(W) * 250(D) * 377(H) Weight 7.5 Kg...
- Page 42 Smart Blocker Operator’s Manual -----------------------------------------------------------------...
