STEVAL-PCC012V1 key features

2 STEVAL-PCC012V1 key features
● 1 x Ethernet RJ45 connectors (ST802RT1A)
●
USB-OTG with 0.5 A onboard power supply
●
General purpose extension connector with GPIOs, ADC, I
●
DC/DC converter L7986A (+24 V / +5 V)
●
MicroSD Card™ socket
●
Two positions for optional Wi-Fi modules
●
4 + 2 LEDs, 5-way general purpose joystick and system reset button
●
Digital/analog extension connectors compatible with STEVAL-MKI0xxV1
●
Digital/analog extension connectors compatible with STEVAL-CCA021V1
●
Extension connector for ST7590 "PRIME" board - narrow-band OFDM power line
networking PRIME compliant system-on-chip.

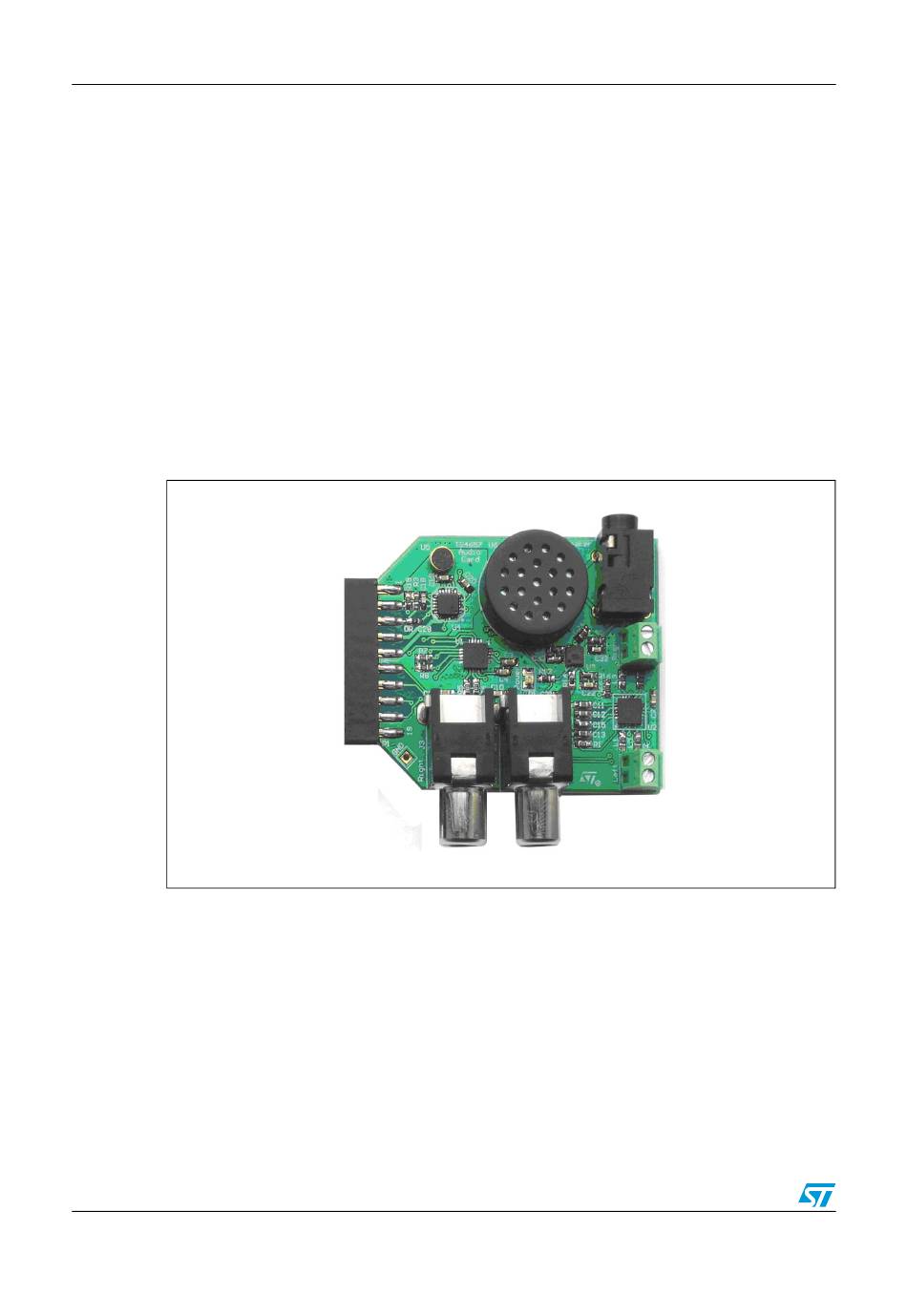

Figure 2.
