Connectors

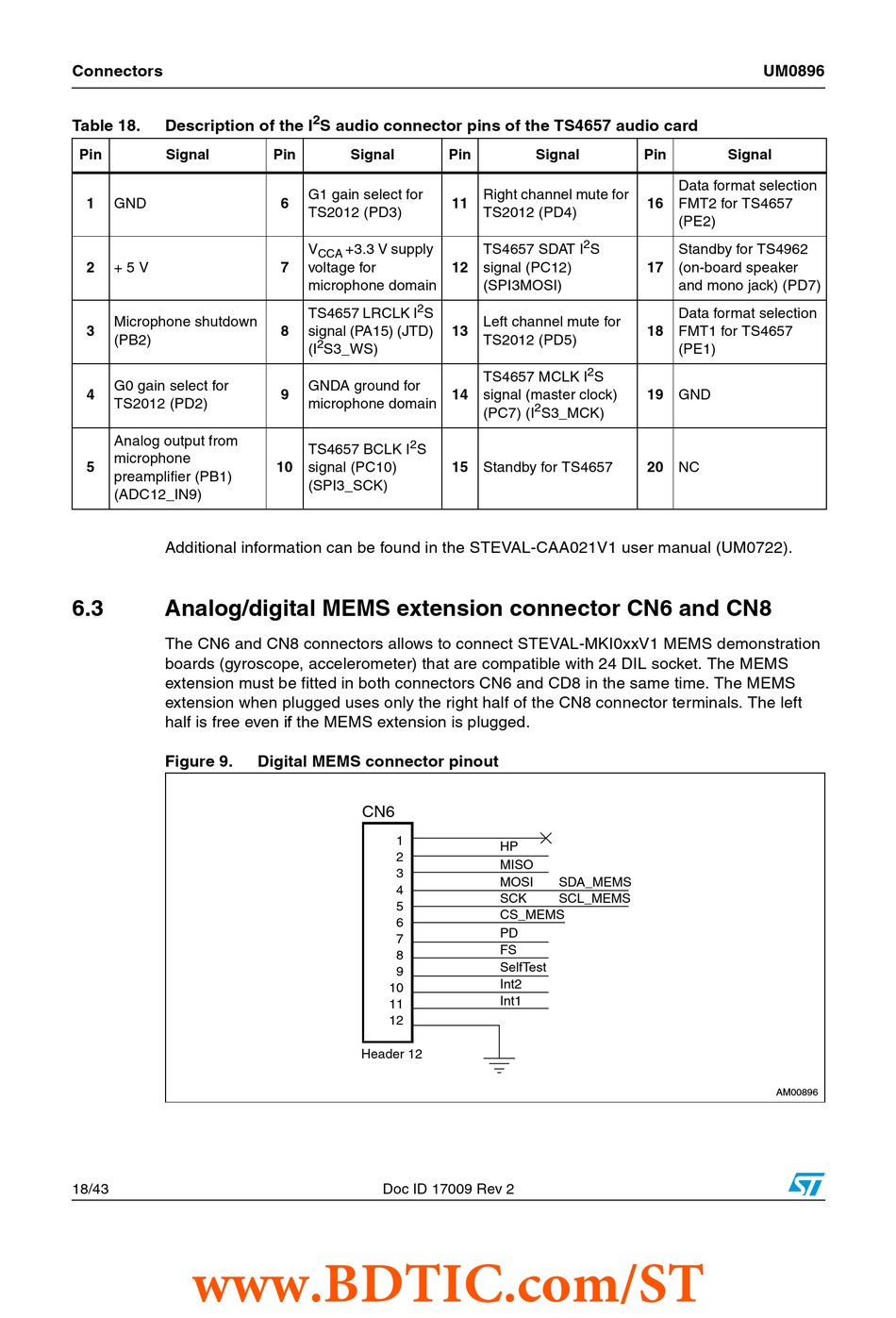

Table 18. Description of the I
Pin Signal
1 GND
2 + 5 V
Microphone shutdown
3
(PB2)
G0 gain select for
4
TS2012 (PD2)
Analog output from
microphone
5
preamplifier (PB1)
(ADC12_IN9)
Additional information can be found in the STEVAL-CAA021V1 user manual (UM0722).
6.3

Analog/digital MEMS extension connector CN6 and CN8

The CN6 and CN8 connectors allows to connect STEVAL-MKI0xxV1 MEMS demonstration
boards (gyroscope, accelerometer) that are compatible with 24 DIL socket. The MEMS
extension must be fitted in both connectors CN6 and CD8 in the same time. The MEMS
extension when plugged uses only the right half of the CN8 connector terminals. The left
half is free even if the MEMS extension is plugged.
Figure 9.
18/43
www.BDTIC.com/ST
2
S audio connector pins of the TS4657 audio card
Pin Signal
G1 gain select for
6
TS2012 (PD3)
V +3.3 V supply
CCA
7 voltage for
microphone domain
2
TS4657 LRCLK I S
8 signal (PA15) (JTD)
2
(I S3_WS)
GNDA ground for
9
microphone domain
2
TS4657 BCLK I S
10 signal (PC10)
(SPI3_SCK)
Digital MEMS connector pinout
Doc ID 17009 Rev 2
Pin Signal
Right channel mute for
11
TS2012 (PD4)
2
TS4657 SDAT I S
12 signal (PC12)
(SPI3MOSI)
Left channel mute for
13
TS2012 (PD5)
2
TS4657 MCLK I S
14 signal (master clock)
2
(PC7) (I S3_MCK)
15 Standby for TS4657
UM0896
Pin Signal
Data format selection
16 FMT2 for TS4657
(PE2)
Standby for TS4962
17 (on-board speaker
and mono jack) (PD7)
Data format selection
18 FMT1 for TS4657
(PE1)
19 GND
20 NC
