6. OPERATION CONTROLS AND FUNCTIONS

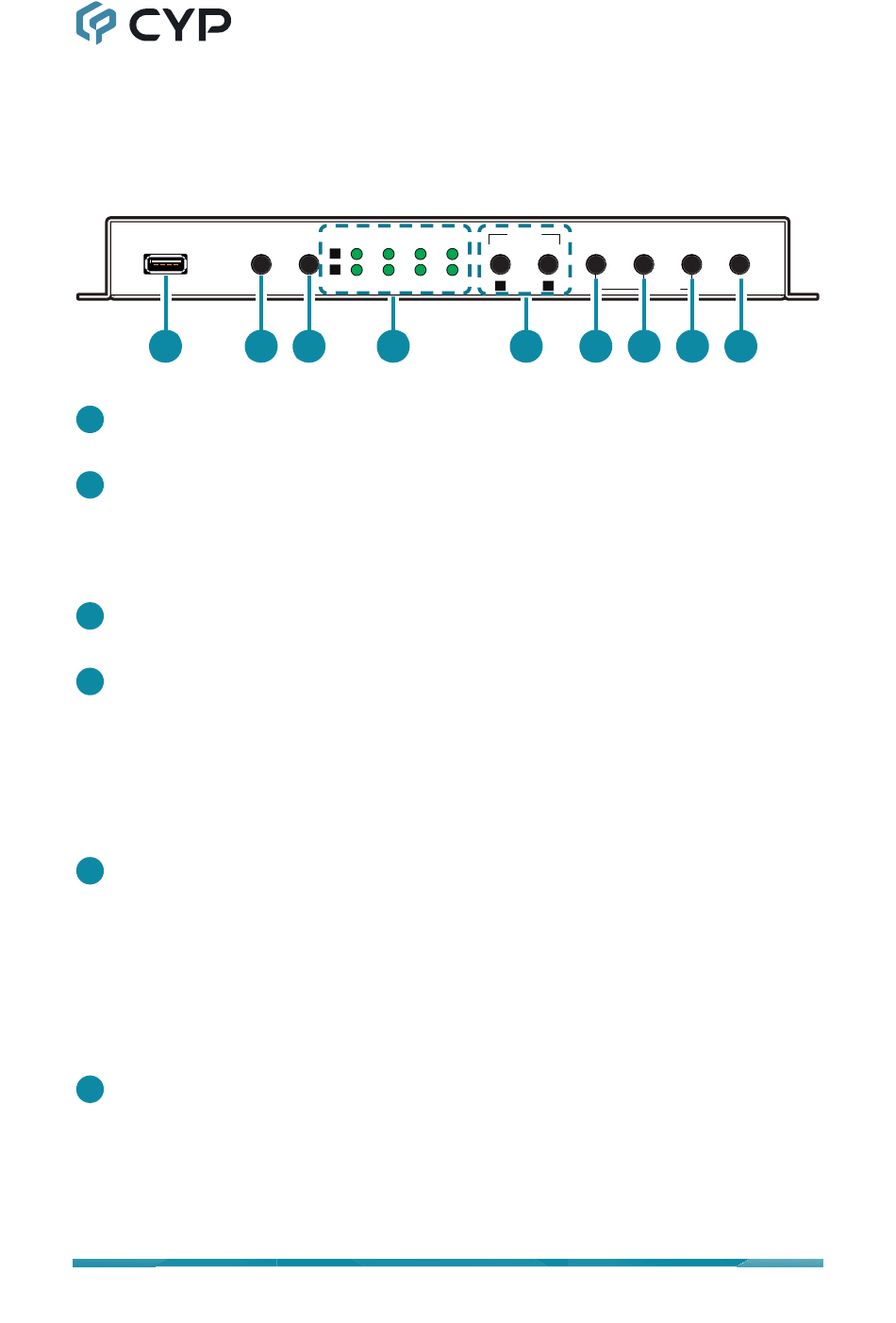

6.1 Front Panel

SERVICE POWER
1
1
SERVICE Port: This port is reserved for firmware update and user EDID/
logo upload use only.
2
POWER LED & Button: Press this button to power the unit on (green
LED) or place it into stand-by mode (red LED).
Note: Ethernet and RS-232 remain active when the unit is in stand-by
mode.
3
VIDEO MODE Button: Press this button to sequentially switch the unit's
operational mode between Matrix, PiP, PoP, and Quad.
4 OUT A~B/IN 1~4 LED Array: In Matrix mode, these LED's indicate the
currently selected sources (IN 1~4) routed to each of the two outputs
(OUT A~B). When the unit is in a multi-windowing mode (PiP/PoP/Quad/
Preset) all LEDs will be illuminated simultaneously.
Note: When source selection is active the associated output's LED(s) will
blink.
5
OUT A/B Buttons: In Matrix mode, either of these buttons to activate/
deactivate discrete source selection for the associated output. In multi-
windowing modes (PiP/PoP/Quad/Preset) either button will activate/
deactivate sequential source selection for the 4 windows.
Note: These buttons only activate/deactivate the ability to change
sources. Actual source selection is accomplished using the IN 1~4
buttons.
6
IN 1/MENU Button: When not in source selection mode, press to enter
the OSD menu, or to back out from menu items. When source selection
is active, pressing this button will either select input 1 (Matrix mode) or
sequentially switch through all 4 inputs for window 1 (PiP/PoP/Quad/
Preset modes).
3
OUT IN 1 IN 2 IN 3
A
B
VIDEO
MODE
2 3 4
IN 4 OUT IN 1
MENU
1080P
A B
5 6
IN 2 IN 3 IN 4
- + ENTER
XGA
7 8 9
