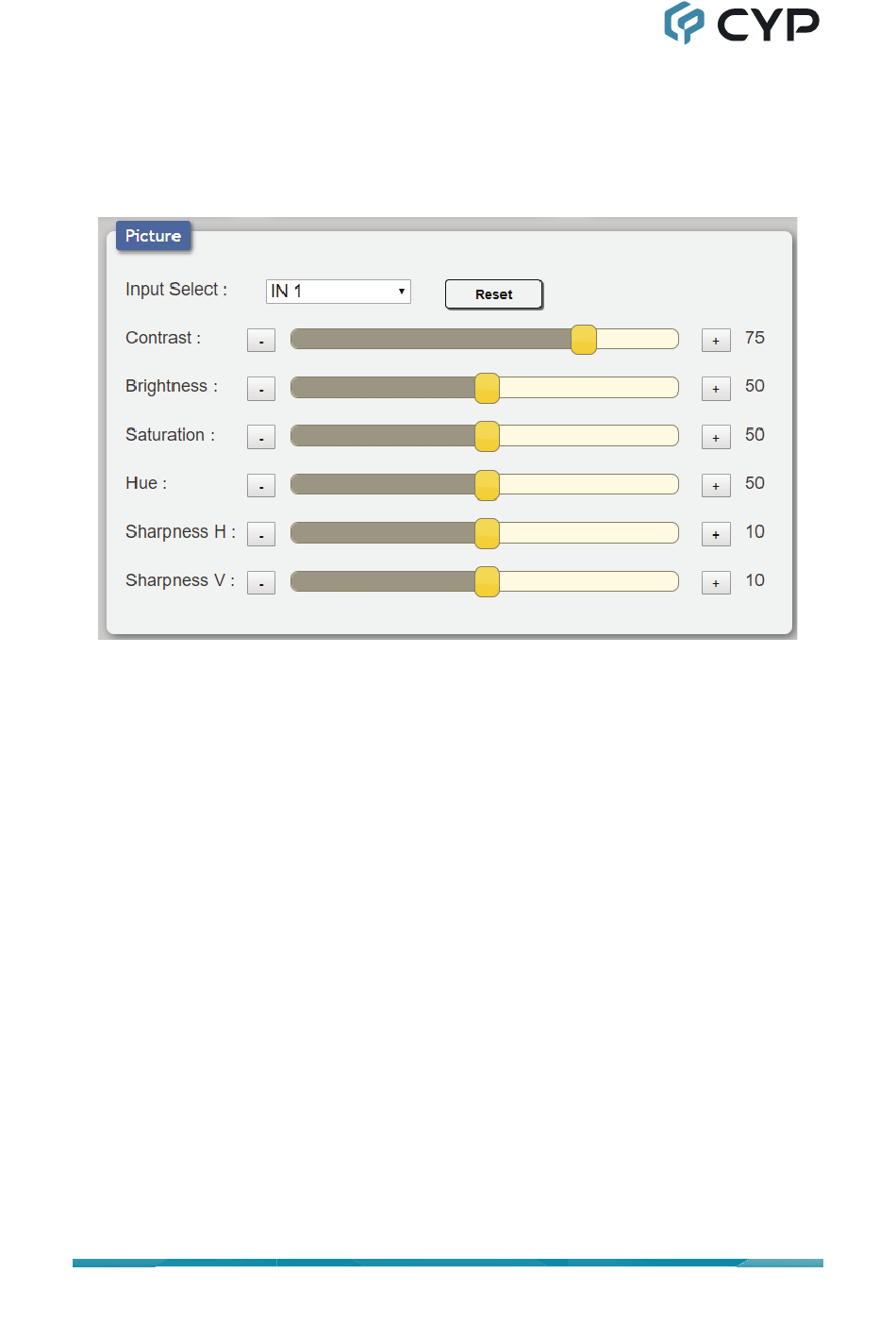

6.5.3 Picture Tab

This tab provides controls over each input's contrast, brightness, saturation,

hue, and sharpness levels.

Note: All picture settings are per-input and are mode-independent.

1) Input Select: Use the dropdown to select the input to modify.

2) Reset: Reset the current input to its default settings.

3) Contrast: This slider provides control over the overall contrast of the

currently selected source video.

4) Brightness: This slider provides control over the overall brightness of

the currently selected source video.

5) Saturation: This slider provides control over the overall saturation of the

currently selected source video.

6) Hue: This slider provides control over the hue shift of the currently

selected source video.

7) Sharpness H/V: These sliders provide control over the amount of

sharpness processing to apply to the currently selected source video.

Note: Horizontal and vertical processing is independently controlled,

providing finer control over the image quality.
