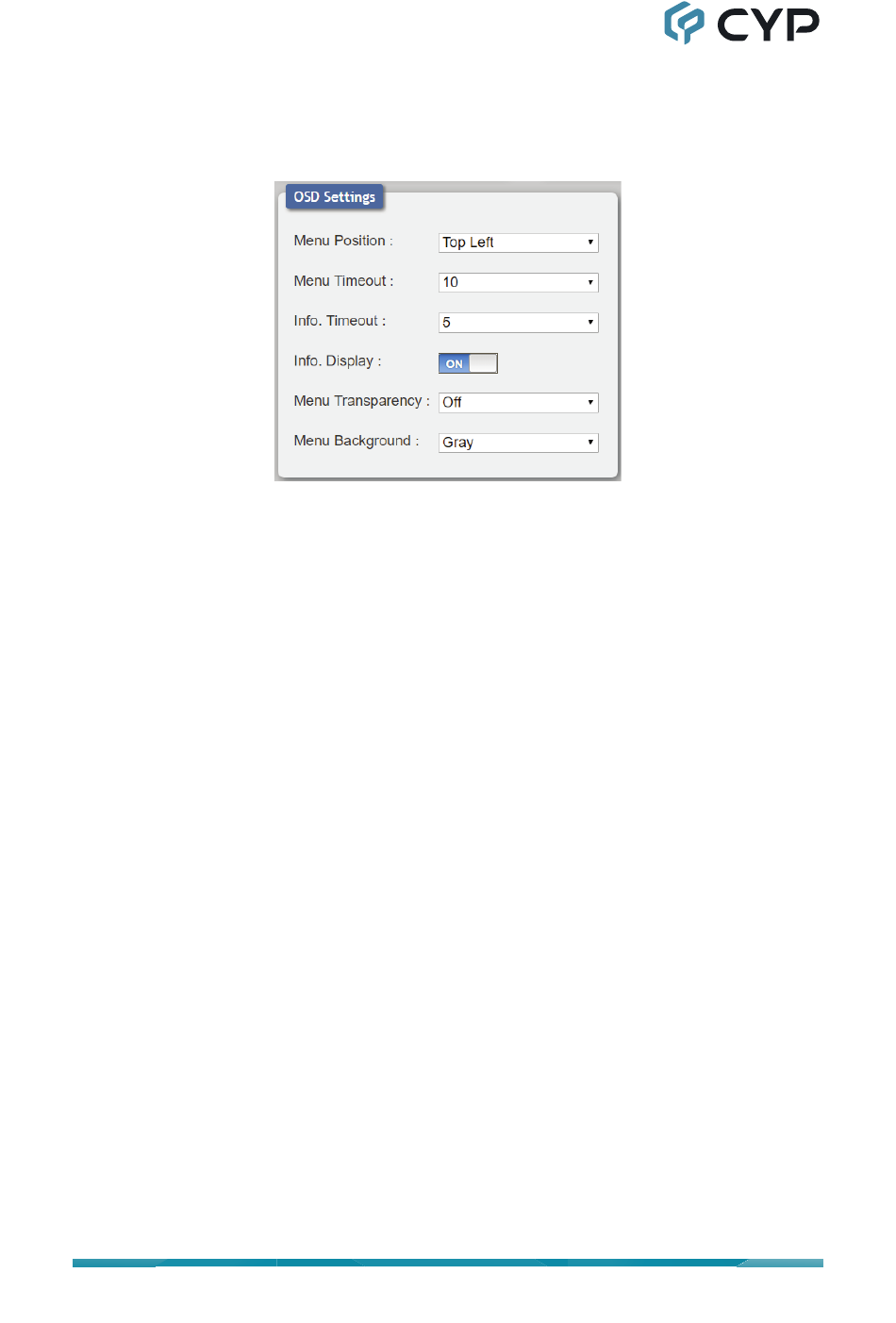

6.5.7 OSD Settings Tab

This tab provides control over the behavior of the OSD menu and

informational display.

1) Menu Position: Use the dropdown to set the position of the OSD menu

on the output. Available choices are: Top Left, Top Right, Bottom Right,

and Bottom Left.

2) Menu Timeout: Set the length of time, in seconds, that the OSD menu

will continue to be displayed if there is no user input, or disable the

timeout completely.

3) Info. Timeout: Set the length of time, in seconds, that the informational

OSD will be displayed after a signal or source change, or disable the

timeout completely.

4) Info. Display: Enable or disable the informational OSD.

5) Menu Transparency: Set the transparency level of the background of

the OSD menu with a range from Off (opaque) to 10 (mostly transparent).

6) Menu background: Set the color of the background of the OSD menu.

Available choices are: Gray, Black, and Blue.
