6.5.2 Window Layout Tab

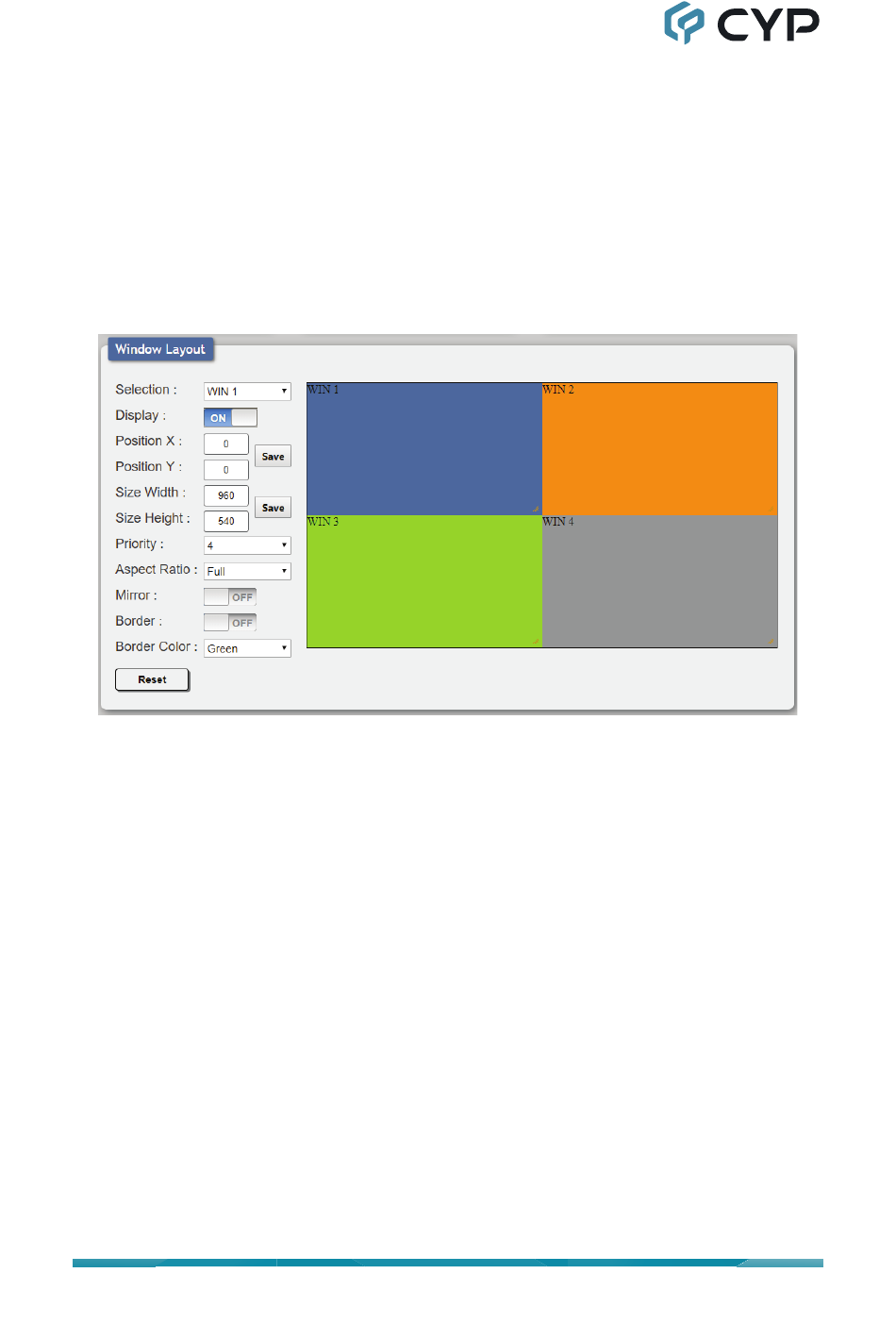

This tab provides control over the position, size, aspect, priority, and other
settings of each window in multi-viewer modes. A graphical representation
of the layout is also provided. When the unit is in Matrix mode, only a limited
selection of controls are available.
Note: Only the information from the currently selected window/input is
displayed. A window's position and size cannot exceed the current output
resolution.
1) Selection: In multi-windowing modes, use the dropdown to select the
window to modify. In Matrix mode select the input to modify.
Note: Changes made while a "Preset" video mode is selected will
automatically be applied and saved to that preset.
2) Display: Enable or disable the currently selected window.
Note: Not available in Matrix mode.
3) Position X/Y: Set the X and Y coordinate position of the upper left corner
of the currently selected window. Click on the "Save" button, after making
changes, to make them active.
Note: Not available in Matrix mode.
4) Size Width/Height: Set the horizontal and vertical size of the currently
selected window. Click on the "Save" button, after making changes, to
make them active.
Note: Not available in Matrix mode.
