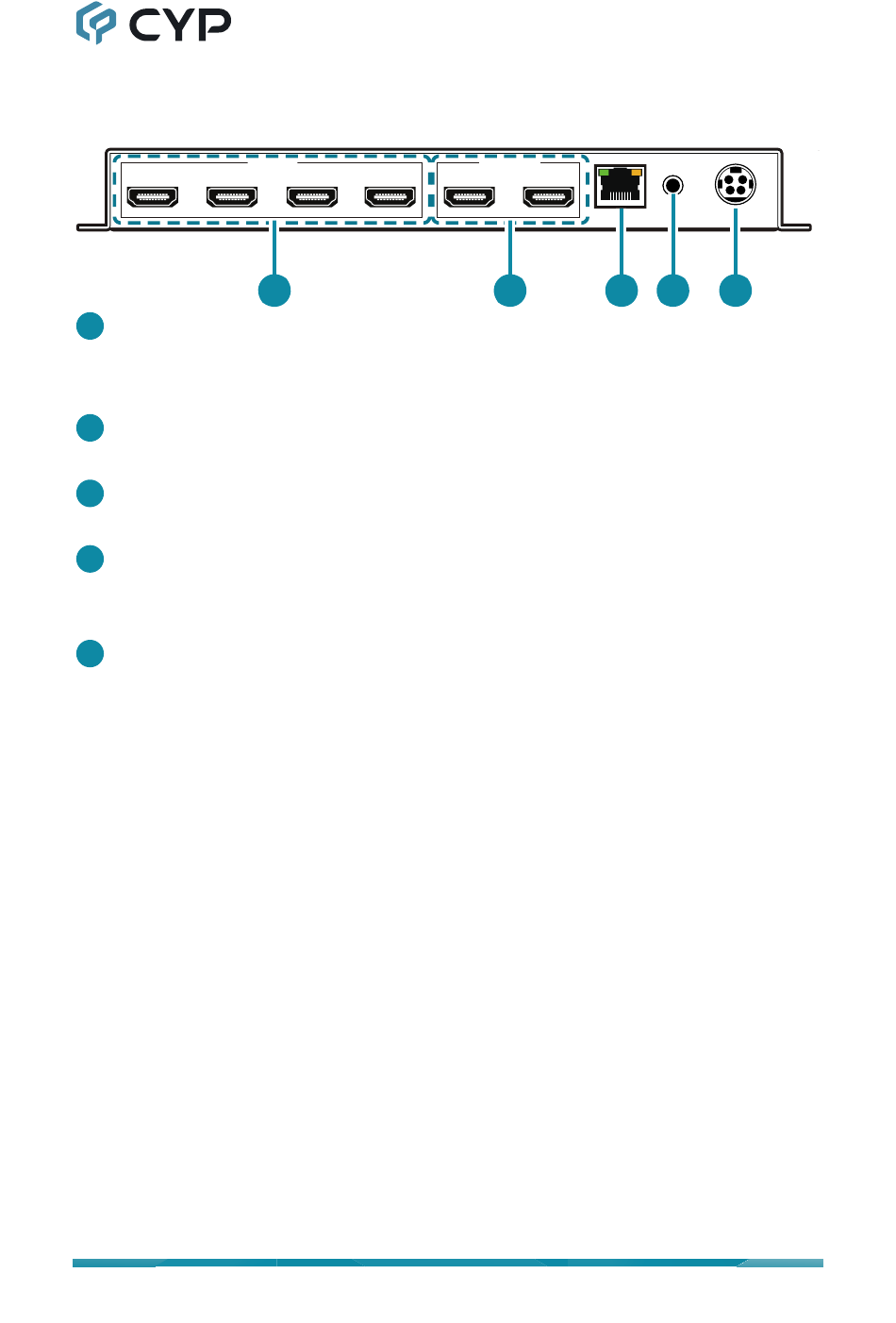

6.2 Rear Panel
1
2
1
HDMI IN 1~4 Ports: Connect to HDMI source equipment such as media
players, game consoles, or set-top boxes.
Note: Audio support on inputs 3~4 is limited to 2 channel LPCM.
2
HDMI OUT A~B Ports: Connect to HDMI TVs, monitors, or amplifiers for
digital video and audio output.
3
CONTROL Port: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI.
4
RS-232 Port: Connect directly to a PC, laptop, or other serial control
device with a 3.5mm adapter cable to send RS-232 commands to control
the unit.
5
DC 24V Port: Plug the 24V DC power adapter into this port and connect
it to an AC wall outlet for power.
5
HDMI IN
3
4
1
HDMI OUT
A
B
CONTROL
2
3
RS-232
DC 24V
4
5
