7 CONNECT CABLES, SEAL CABLE PASSAGES

7.1 Required components

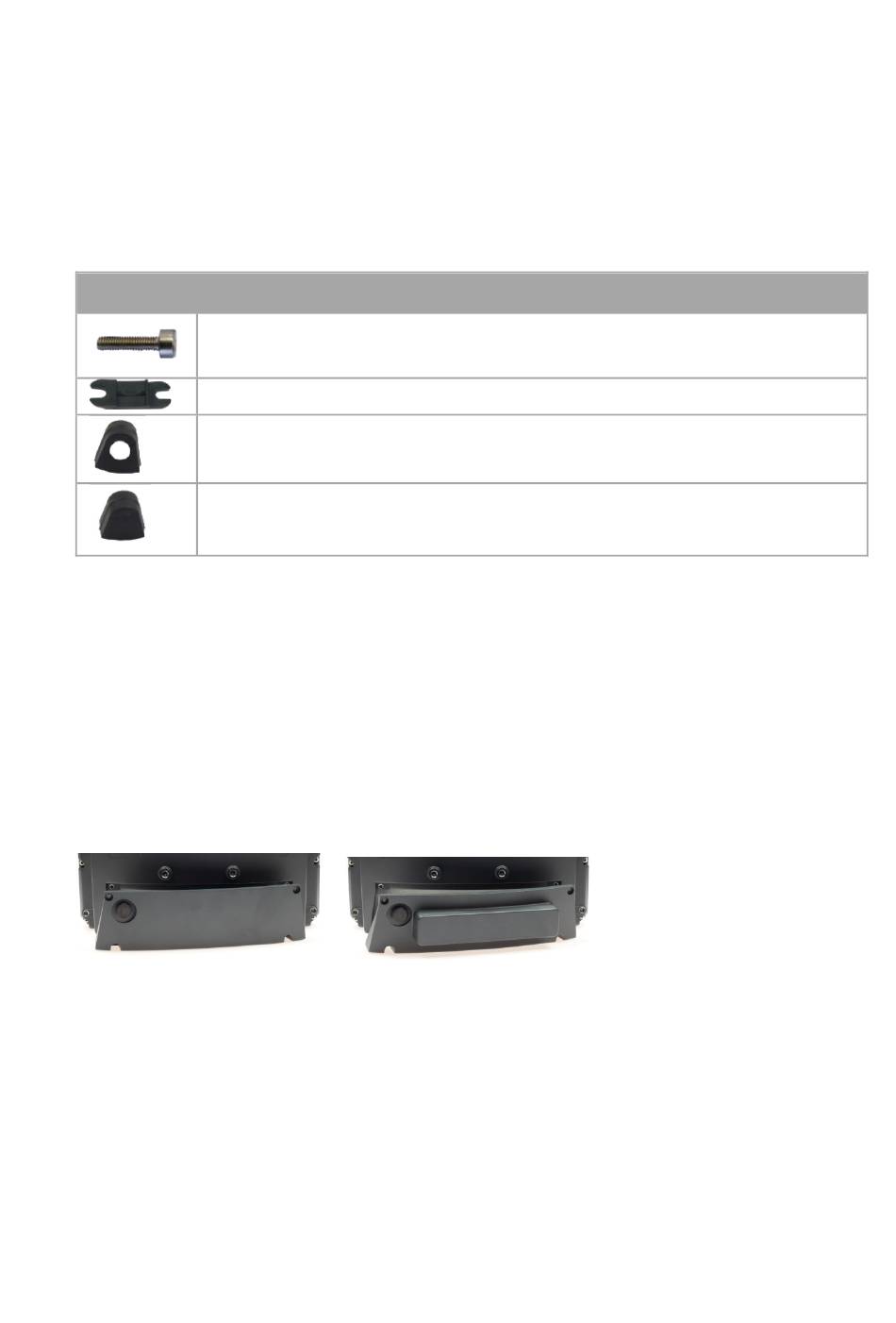

A) Cable sealing set
Cable sealing set components
10 x cylinder head screws DIN 912 M3x12 for fastening the cables to the
strain relief rail
7 x cable clips for fastening the cables to the strain relief rail
10 x cable grommets (different size openings); must be fitted to all cables
before they are inserted into the cable passages.
6 x dummy grommets to seal cable passages on the device that are not
required
Note: Some screws and grommets in the scope of delivery are replacement parts.
B) Cable cover
− Cable cover without integrated UPS battery pack (see below picture, left)
− Or: Cable cover with integrated UPS battery pack (see below picture, right)
− Thin shaft screws, self-retaining in the holes (4x DIN 912 M4x12 thread length 4mm)
C) Power supply cable
− DC power supply cable with Phoenix contact connector
− Or: AC power supply cable with angled connector for non-heating apparatus with
on/off switch for the grid power
23
