5 NOTES ON THE MECHANICAL MOUNTING
5.1 Overview: Recommended mounting sequence
1. Find a suitable installation position for the DLT-V83.
2. Secure the device mounting (RAM or mounting bracket) to the targeted
subject/vehicle.
3. Connect external accessories to the DLT-V83.
4. Install an easily accessible disconnecting device such as a switch close to the
device.
5. Connect all cables (power supply, peripherals).
6. Seal cable passages with cable grommets and dummy grommets.
7. Close the DLT-V83 with the cable cover.
8. Install the DLT-V83 on the device mounting.
5.2 Notes about the attachment of device mounts and accessory mounts
WARNING
Risk of accident on vehicles if the mounting becomes loose
Mechanical expert knowledge is required for correct attachment of device mounts and
accessory mounts on the DLT-V83.
− Use suitable mounting material.
− Observe the maximum screw-in depth of the holes of the DLT-V83:
The recommended screw-in depth of D x 1 always applies (screw diameter x 1).
ATTENTION: Screws that are too long, e.g. in the VESA mounting holes, can pierce
the rear side of the DLT-V83 and cause irreparable damage to the device.

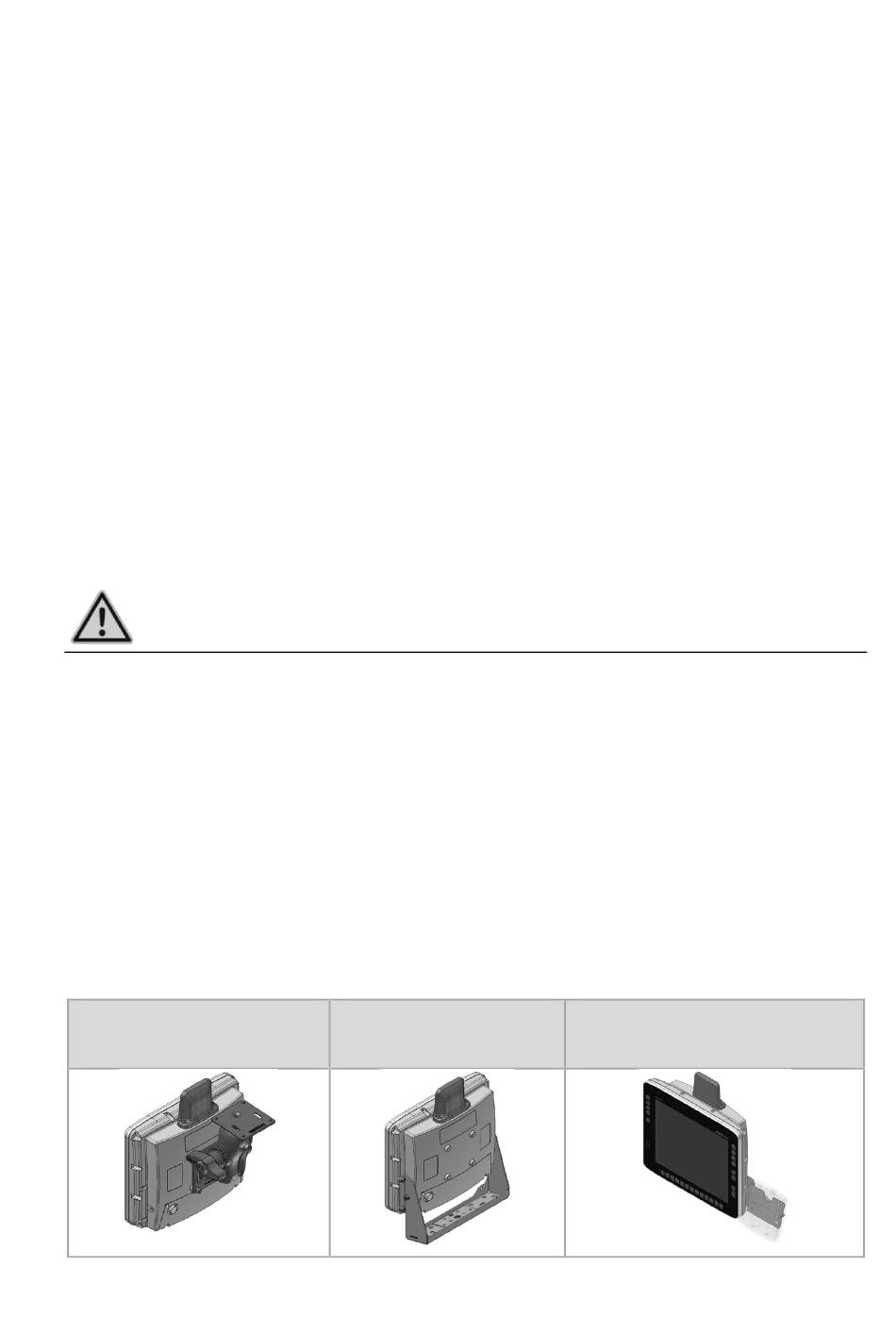

Mounting examples:
Device mount:
RAM Mount solution
Device mount: ADLoG
mounting bracket
Accessory mount:
24-key keypad
