STEP 3: Connect the USB, Ethernet and COM cables
Procedure as described for the power supply cable:
− Connect the cable.
− Fit the appropriate cable grommet to the cable.
− Insert both components into the cable passage.
− Secure using cable clip and screws to the strain relief rail.

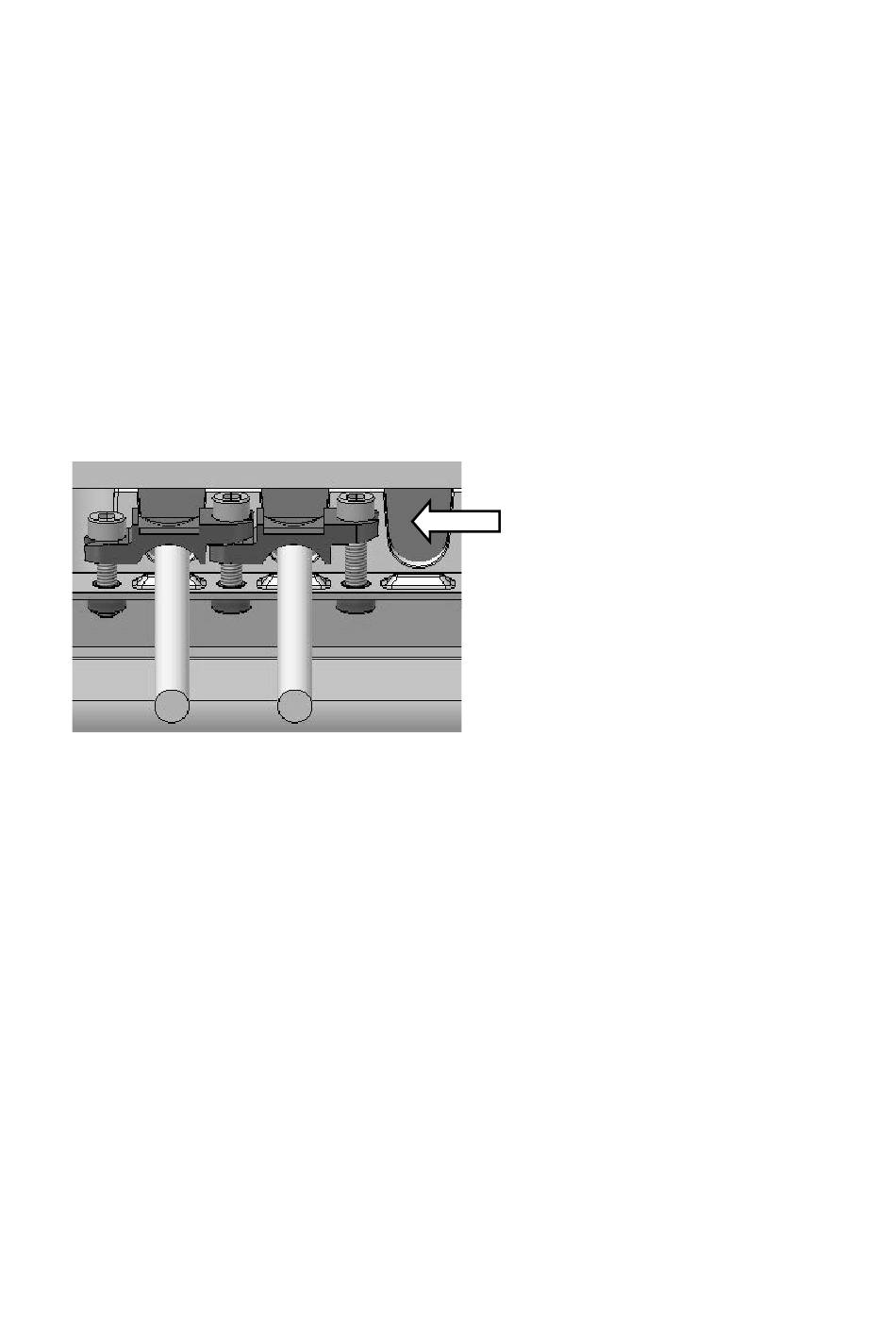

STEP 4: Close off unused cable openings
26
Close off all unused cable
passages with dummy
grommets so that they are
sealed.
