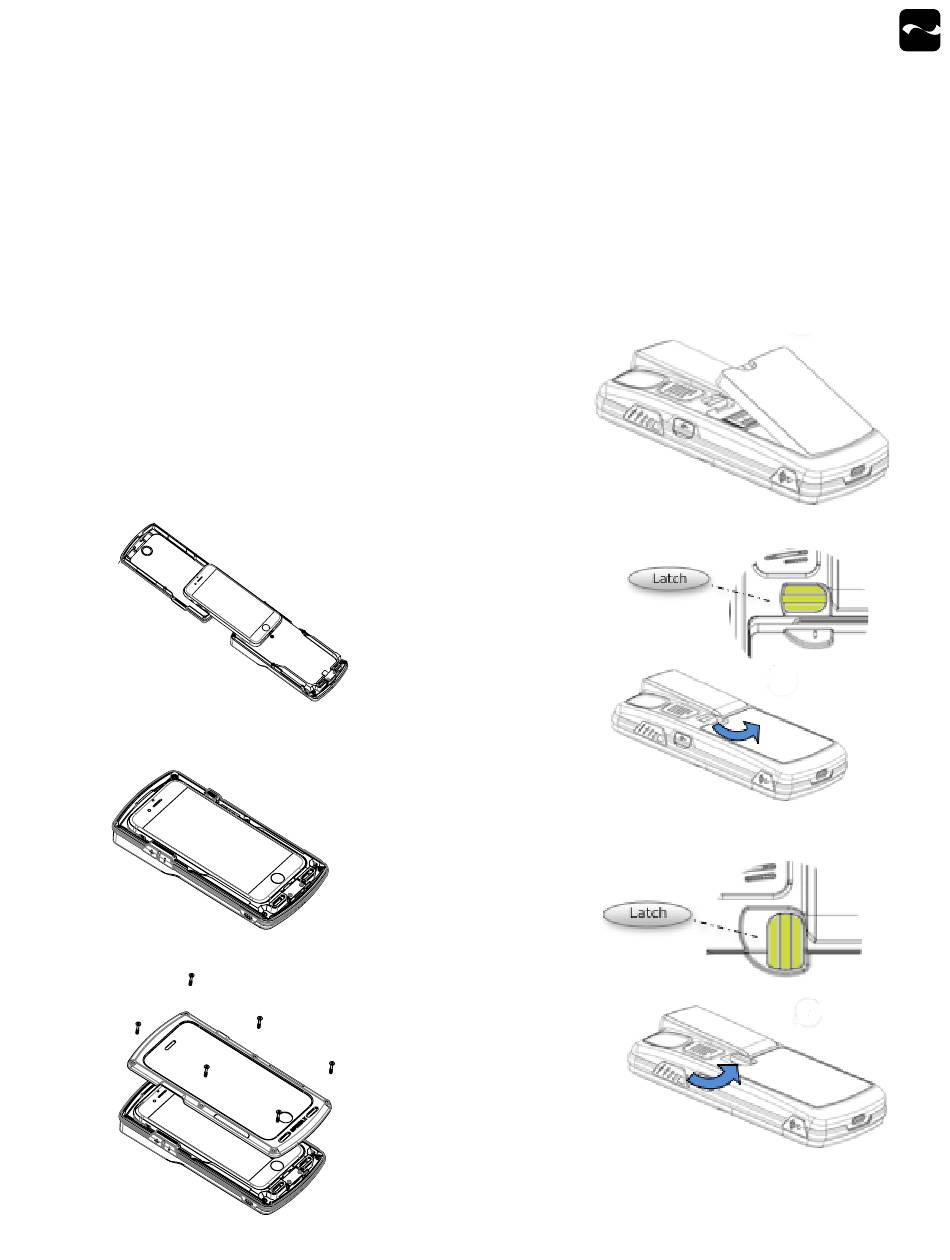

Assemble Your Infinea X

The Infinea X is molded to compatible iOS devices listed on page 3.
iOS devices are not interchangeable.
1. Loosen the socket head hex screws to open the unit.
2. Flip open the top cover gently.
3. On your iOS device, set the Ring Silent switch to Ring Mode.
4. Slide the iOS device onto the Lightning connection until you hear a click.
5. Close the top cover while maintaining the position of the protective
rubber bumper. Failure to align the top and bottom covers compromises
the liquid protection features of the unit.
6. Before closing the top cover, wipe the interior glass clean with a lint-free
cloth to ensure your screen is free from moisture.
7. Secure the cover by tightening the six socket head hex screws in the
upper enclosure in this order: top left, bottom right, top right, bottom left,
center left and right.
Note:
The recommended torque is 2 lbs maximum. Do not over-tighten the
screws as that could damage the cover.
Install the Battery Pack
Standard and extended external, swappable battery packs that
reduce downtime are available for the Infinea X.
1. Open the battery latch gently.
2. Lower the new battery pack into place so that it sits flat after installation.
3. With slight pressure on the back of the battery pack, rotate the latch
counter-clockwise, 90 degrees or until the battery is locked in place
securely.
