Infinite Peripherals CBL-CUP-LP5PC-BK Quick Start Manual

Linea Pro
Charging Cup
QUICK START GUIDE

GETTING STARTED

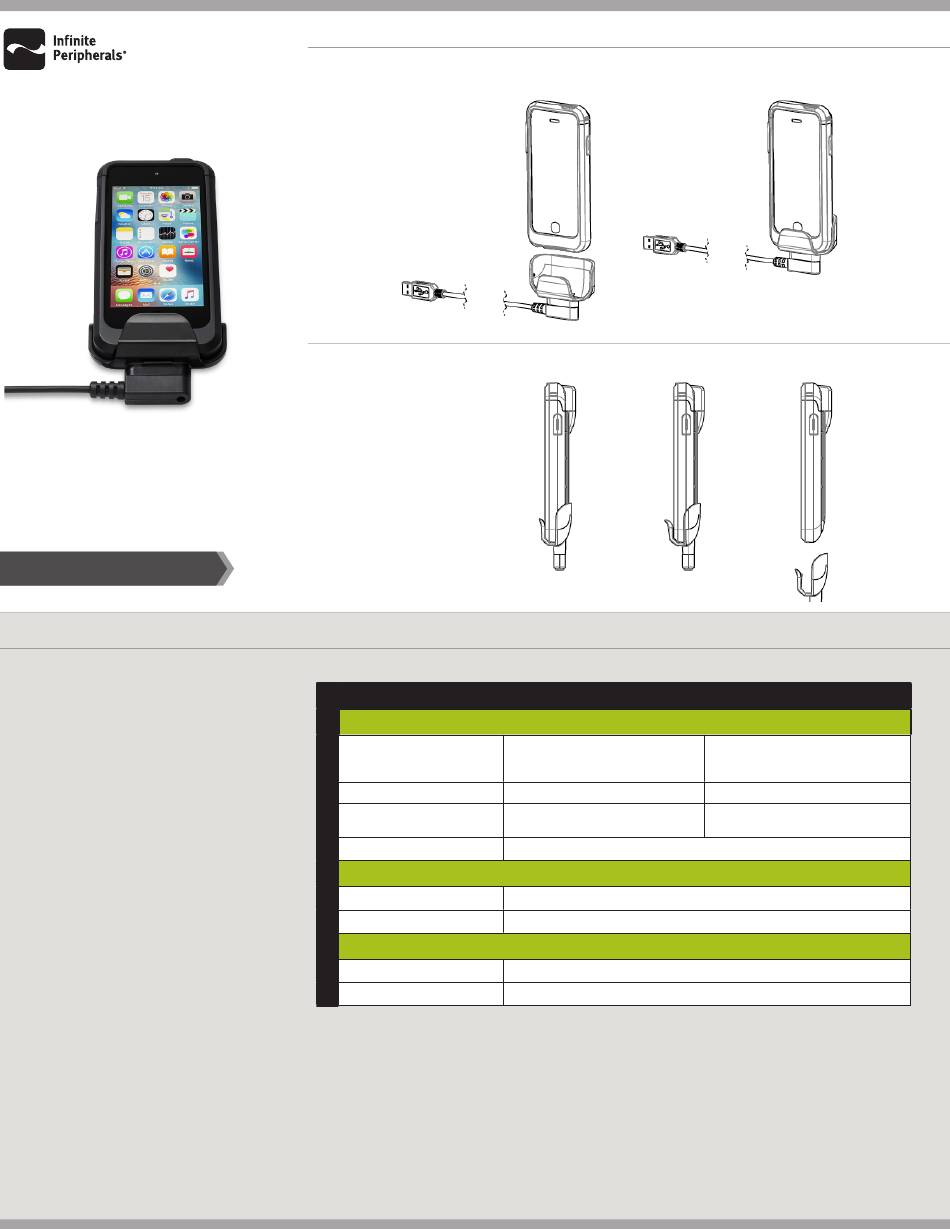

INSTALLATION (See Installation Diagram)
1. Ensure that the environmental conditions
are within appropriate operating
specifications for the charger, as well as
for the Linea Pro 5 and iOS device.
2. Clip the charging cup onto the bottom of
Linea Pro 5 device and check that cup is
properly aligned and fully seated on the
bottom of the Linea Pro 5 device.
3. Plug USB connector end of Linea Pro 5
Charging Cup into appropriate power
supply (5.2V 2.4A, not included).
4. Confirm that the Linea Pro 5 LED
indicator turns green to indicate charging
is active.
REMOVAL (See Removal Diagram)
1. Grip the bottom of the cup with palm of
hand.
2. Pull down on the rear tab with fingertips
to unlock cup from device.
3. Separate the charging cup from the
device.
ABOUT YOUR LINEA PRO 5
Installation
Removal
5
®

PRODUCT SPECIFICATIONS

The following table describes Linea Pro 5 Charging Cup specifications.
Mechanical
Compatibility:
Weight:
Dimensions:
Cable Length:
Electrical
Connector:
Input:
Environmental
Operating Temperature:
Storage Temperature:
CHARGING CUP
Linea Pro 5 Standard with
- iPod 5th generation
- iPhone 5
56 g (1.98 oz.)
74.4 mm x 57.9 mm x 29.3 mm
(2.93" x 2.28" x 1.15")
USB A
5.2V 2.4A DC
32°F to 95°F (0°C to 35°C)
-4°F to 113°F (-20°C to 45°C)
Linea Pro 5 w/Rugged Case with
- iPod 5th generation
- iPhone 5
57 g (2.01 oz.)
80.8 mm x 63.4 mm x 35.1 mm
(3.18" x 2.50" x 1.38")
3'
