Charge the Infinea X

Charge the Infinea X either by replacing the battery or by an
electrical outlet. In addition, pass through charging to an iOS device
is supported. Any combination of iOS device and Infinea X can be
charged by attaching the charging cup to the bottom of the Infinea X
and USB plug into an AC wall adapter or by a station charger.
Note:
The Infinea X and iOS device cannot be charged with a USB cable to
personal computer or MAC due to charging requirements.
Battery Specifications
The standard battery capacity is 1,900 mAh. The extended battery
pack, which is sold separately offers a capacity of 3,800 mAh.
To charge a fully depleted battery to 100% capacity is approximately 3
hours with or without the standard battery inserted.
If back-up charging is enabled and both the iOS device and Infinea
X are completely discharged, insert a new, fully charged standard
battery into the Infinea X. Charge for approximately 10-15 minutes
using the charging cup. After 15 minutes, remove the charging cup
and the Infinea X can provide back-up charging to the iOS device, if
needed.

Battery Status

When the battery capacity is below 15%, the automatic iOS device
charge stops.
LED Color Capacity Percentage Description
75%-100%: Solid green when you tap the
Battery Status button, or
50%-74%: Flashing green.
24%-49%: Flashing orange when you tap the
Battery Status button.
1%-24%: Flashing red when you tap the
Battery Status button, or
1%-9%: Emergency low-battery status.
Note:
Ensure used batteries are disposed of in an environmentally friendly
way and according to federal law. This may include disposing them at
a battery-recycling center or hazardous waste collection site.

Charge Using Electrical Outlet

To prevent electrical damage to the Infinea X or battery, use only the
provided charging cup.

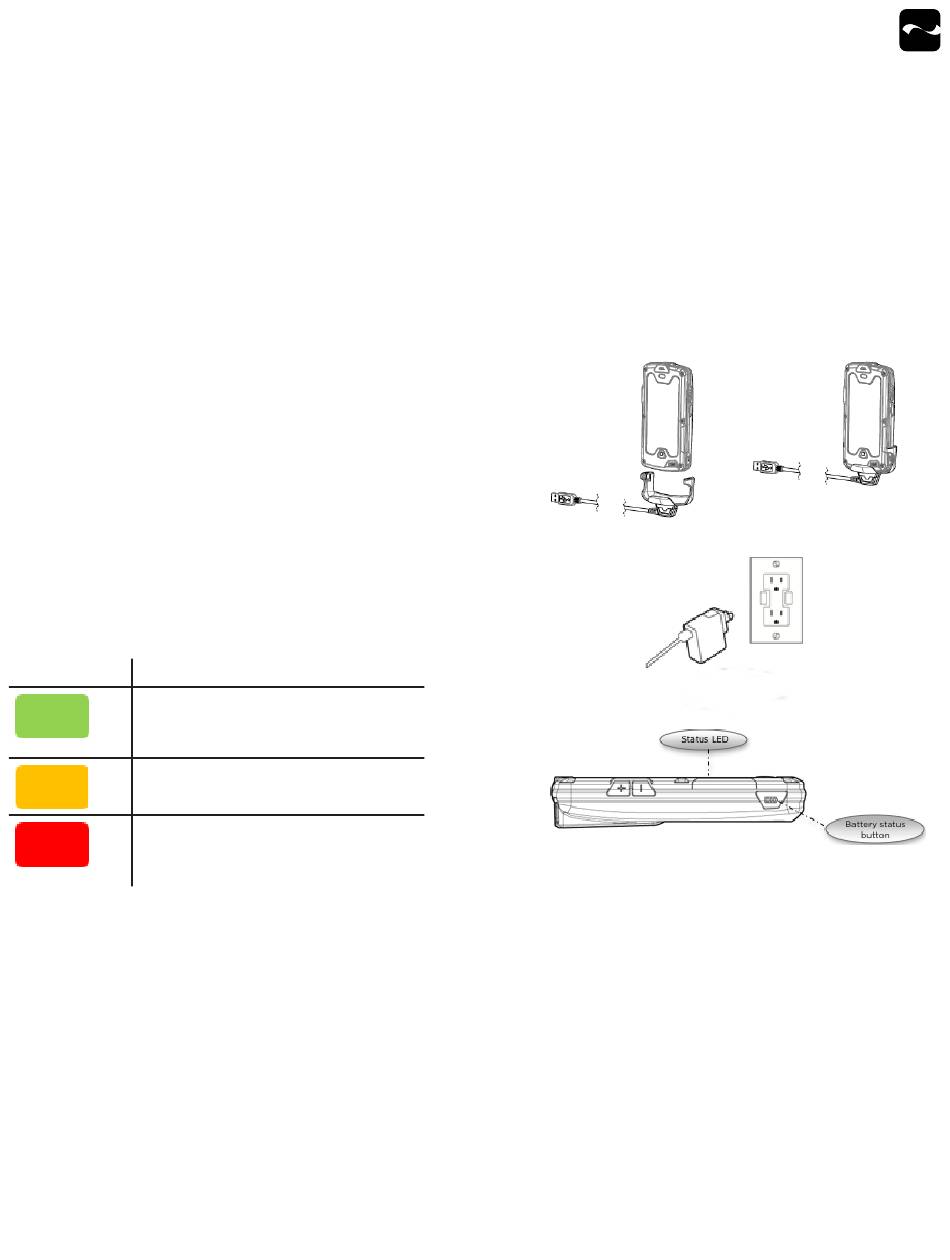

1. Insert a standard battery into the Infinea X, and then attach the charging
cup to the bottom of the unit. Once you hear a click, the unit is fully seated
in the cup.
2. Plug the USB connector end of the charging cup into an AC wall outlet
(21.A).
3. Confirm the Infinea X LED status indicator on the left-hand side turns
green for active charging. Refer to the Battery Status section for more
details.

Charge Replaceable Battery

As an accessory, the multiple bay battery charger can accommodate
up to ten batteries at one time. To charge a depleted battery fully
takes approximately 2.5 hours for a standard battery and 5 hours for
an extended battery.
Note:
This battery charger is intended for charging the Infinea X standard
battery and extended battery and not for any other battery types.
An individual LED charge indicator is next to each battery slot:
• Red LED indicates charging is in progress.
• Green LED indicates the battery is fully charged.
