QUICK START GUIDE
Infinea® X DF
For iPhone® 6s/7/8

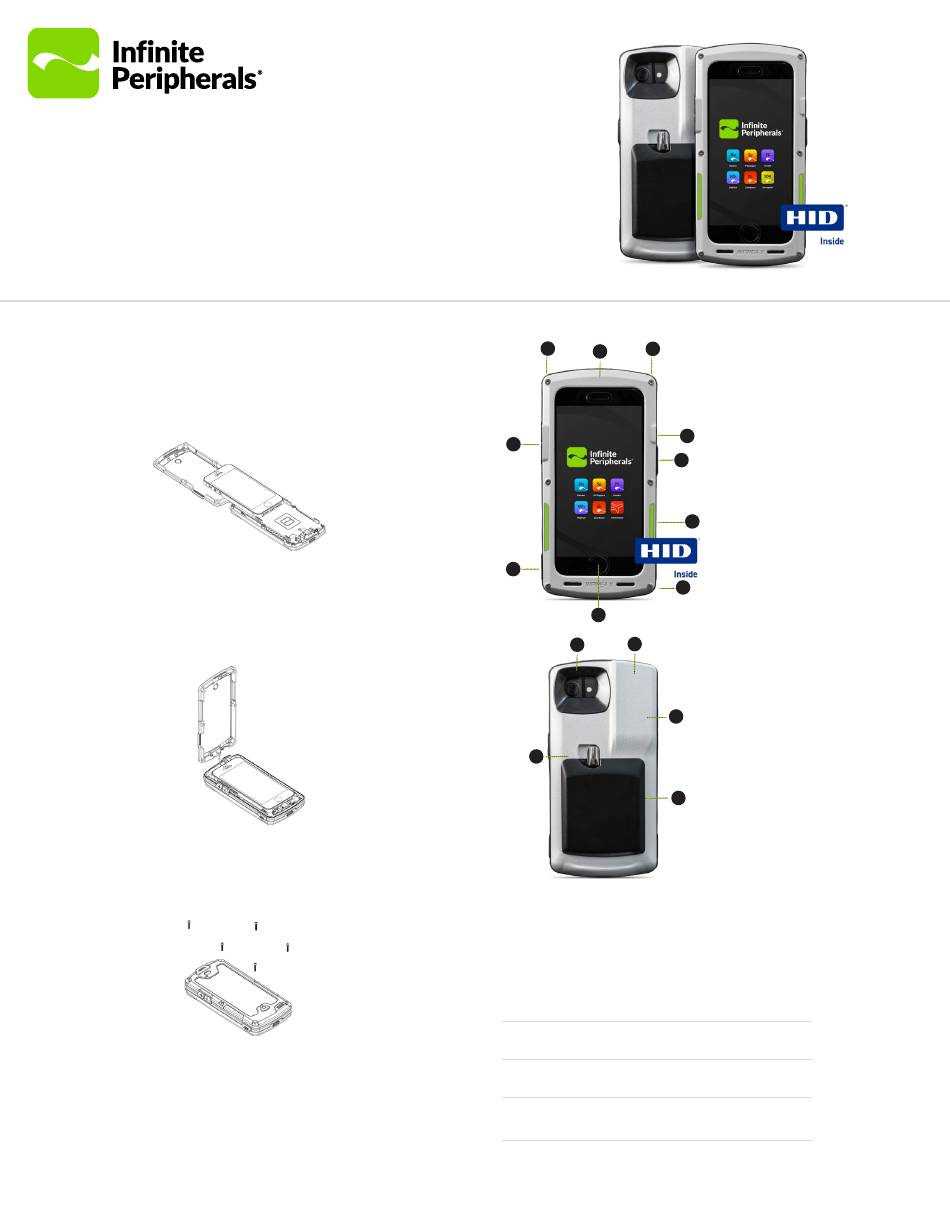

Assemble Your Infinea X DF
1. Ensure the iOS device is set to Ring mode, and then open the unit by loosening
the socket-head hex screws, and gently flip open the top cover.
2. Slide the iOS device onto the Lightning™ connector until it clicks into place.
3. Close the top cover while maintaining the position of the protective rubber
bumper.
Note:
Before closing the top cover, wipe the interior glass with a clean, lint-free cloth to
ensure your screen is clean and free from moisture.
4. Secure the cover by tightening the six flat-head T6 screws inserted into the upper
enclosure.
Note:
Do not over tighten the screws as that may damage to cover.
Important:
The rubber bumper must be properly aligned between the top and bottom covers. If
not, the liquid protection features of the Infinea X DF are compromised. If you have any
questions about installation of the rubber bumper, contact your Infinite Peripherals
account representative.
2
2
1
9
4
8
6
7
11
10
12
14
13
Battery LED Status Indicators
Press the battery status button (see number 8 above) to view the LEDs.
Status Description
100% to 75% Solid green
74% to 50% Blinks green
49% to 25% Blinks orange
24% to 10% Blinks red
9% to 1% One LED blinks red indicating
emergency low battery
1. iPhone receiver port
3
2. Flat-head T6 screws (6)
3. iOS device On/Off button
4. Scan button
5. Status LEDs
6. Programmable button
7. Home button
8. Battery status button
5
9. Volume buttons
10. iOS device camera opening
11. Barcode scanner
12. RFID antenna
13. Battery pack
14. Battery latch
