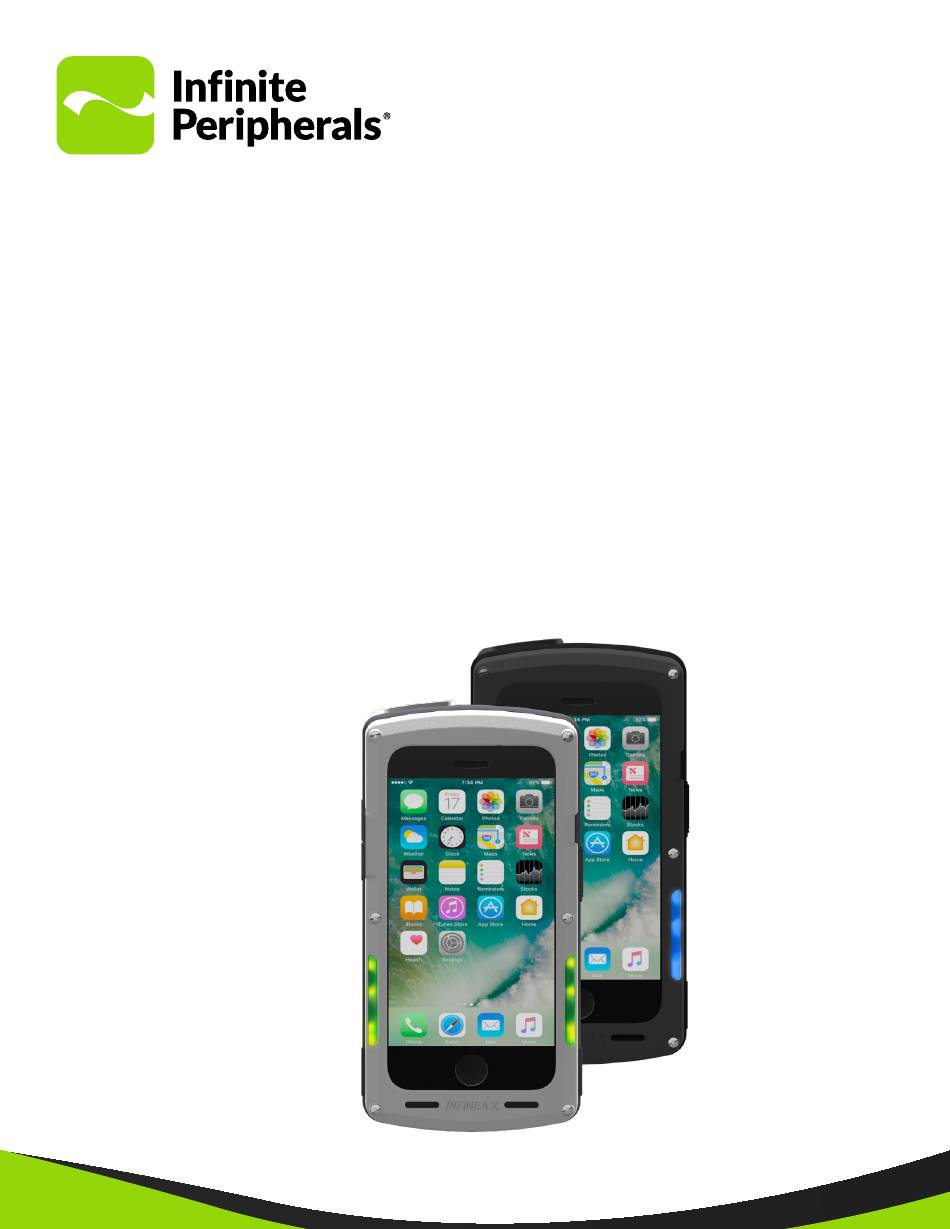

- Page 1 User Manual Infinea X® For iPhone® 6s / 7 / 8 / SE...
-
Page 2: Table Of Contents
Infinea X User Manual Table of Contents Using the Infinea X Contacts Scan Barcodes Legal Notice Read Contactless Cards Infinea X Accessories Status & Operational Modes Compatible Devices Enable Audio Overview Enable Rear Speaker Infinea X Features Soft–Reset of Infinea X... -
Page 3: Contacts
Made for these mobile digital devices: Note The use of this accessory with an iPhone may affect wireless • iPhone 6s / 7 / 8 performance. Infinea X Accessories Contact your Infinite Peripherals account representative for information about current and future product accessory offerings. -
Page 4: Overview
Infinea X User Manual Overview Getting Started The Infinea X for iPhone allows you to scan barcodes and read RFID Infinea X scans barcodes and passes that data into compatible iOS tags or cards. applications. To get you up and running with your new Infinea X, review these sections. -
Page 5: Technical Specifications
Infinea X User Manual Technical Specifications Mechanical Electrical Compatibility iPhone 6s / 7 / 8 / SE Barcode Scanner • High-speed imager supports all major 1D/2D barcodes. Dimensions 164mm x 83mm x 27.7mm (5.83” x 2.84” x 1.22”) Battery Capacity •... -
Page 6: Before Using Infinea X
(inside) Software is not automatically provided with your Infinea X. Integrating the Infinea X into your iOS application requires the use of the Infinite Peripherals Universal SDK. The SDK incorporates an API specifically for developing applications to use Infinea X functionality. -
Page 7: Infinea X Layout
Infinea X User Manual Infinea X Layout SKUs: IX-Z2DBTR-PH7-BK and IX-Z2DBTR-PH7-MG iPhone receiver port T6 screw T6 Screw iOS Camera opening Barcode Scanner iOS On/Off Volume Button Buttons RFID/HID antenna Scan Button T6 Screw T6 Screw Battery latch Status LED... -
Page 8: Assemble Your Infinea X
Assemble Your Infinea X Install the Battery Pack Standard and extended external, swappable battery packs that The Infinea X is molded to compatible iOS devices listed on page 3. reduce downtime are available for the Infinea X. iOS devices are not interchangeable. -
Page 9: Charge The Infinea X
Plug the USB connector end of the charging cup into an AC wall outlet Note: (21.A). The Infinea X and iOS device cannot be charged with a USB cable to personal computer or MAC due to charging requirements. Confirm the Infinea X LED status indicator on the left-hand side turns green for active charging. -
Page 10: Power On Infinea X
Infinea X User Manual Power On Infinea X The Scan/Power button is dual purpose to turn on and scan barcodes. If the unit is left idling for an extended period, the Infinea X achieves sleep mode to preserve the battery. •... -
Page 11: Status & Operational Modes
Infinea X User Manual Status & Operational Modes The multiple, colorful LEDs give you the status when operating the Infinea X. The colors, which can be programmed via the SDK are: • Blue • Green • Orange • Note: Developing Applications... -
Page 12: Soft-Reset Of Infinea X
Repeat the above steps if the unit does not restart. Enable/Disable Sync Mode To sync your iOS device with iTunes with the Infinea X, connect the Infinea X to a personal computer or MAC using the charging cup. Once in sync mode, refer to the iTunes documentation for the procedure to sync your iOS device. -
Page 13: Troubleshooting
If the Infinea X is not scanning barcodes properly or not reading RFID performance, or use of this material. Infinite Peripherals, Inc does not cards tags, refer to these possible causes and resolutions. -
Page 14: Product Returns/Servicing
Infinea X User Manual Product Returns/Servicing Symbols Use the link in step 1 to create an account and gain access to our Symbol Description Knowledge Base and online support services. Through our online support center, you’ll be able to download files, open a Support Ticket, manage your RMAs, view your account Profile and subscribe to Alerts. -
Page 15: Federal Communications Commissions
