QUICK START GUIDE
Linea Pro® 7i

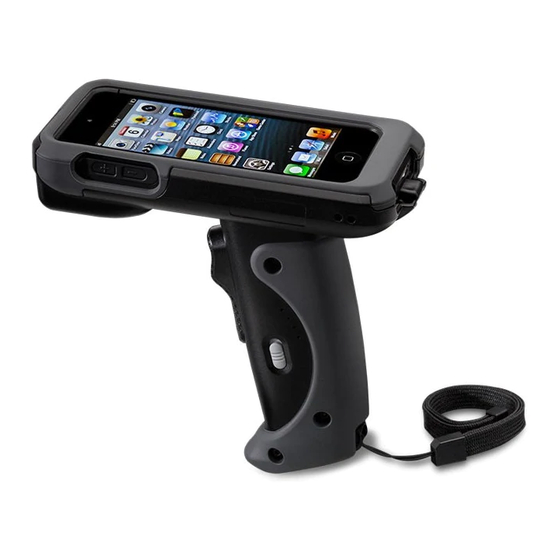

Linea Pro 7i Pistol Grip for iPhone® 7/8

Getting Started

Assemble your pistol grip
1. Gently insert the Linea Pro 7i into the silicone sleeve provided.
Ensure the sleeve is installed and aligned correctly with the scanner,
2.
scan buttons, and the metal contact area on the back of the Linea Pro
7i.
3. Insert the bottom end of the unit into the pistol grip first, and then push the rest
of the unit firmly into place.
4. Ensure the silicone sleeve is tucked neatly into the pistol grip casing.
Programmable options
Enable scan button
Before scanning enable the Scan button option in
the Software Developers Kit (SDK).
Change current
Ensure the charge current setting on the Linea Pro
7i is set to 500mA.
Scan modes
Single scan – press and release the Scan button.
Multi-scan – press and hold the Scan button.
Motion detect – activates scanner automatically
when a barcode is placed near the barcode engine.
Multi-scan without duplicates may be enabled.
Use your pistol grip
1. Press the pistol grip trigger to activate the scanner.
2. Position the scan head near the center of a barcode.
Note —The pistol grip pointer must extend outside of the edges of the barcode.
3. Slowly pull the unit backwards increasing the distance between the barcode and
the scan head until the scanner reads the entire barcode.
Note —When the pistol grip is charging, the scanner operation is disabled.
Charge your pistol grip
We recommend charging your pistol grip with a charging station. Refer to the product
documentation provided with your charging station for proper instruction on charging.
