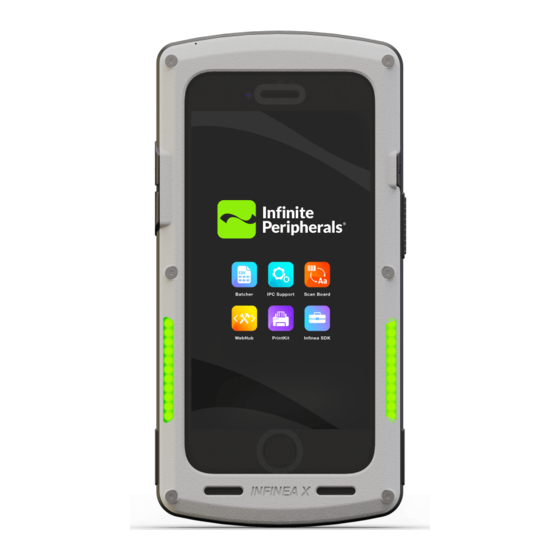

Infinite Peripherals Infinea X User Manual

For iphone 7
Hide thumbs Also See for Infinea X:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Infinea
X
®
for iPhone® 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinea X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinite Peripherals Infinea X

Summary of Contents for Infinite Peripherals Infinea X

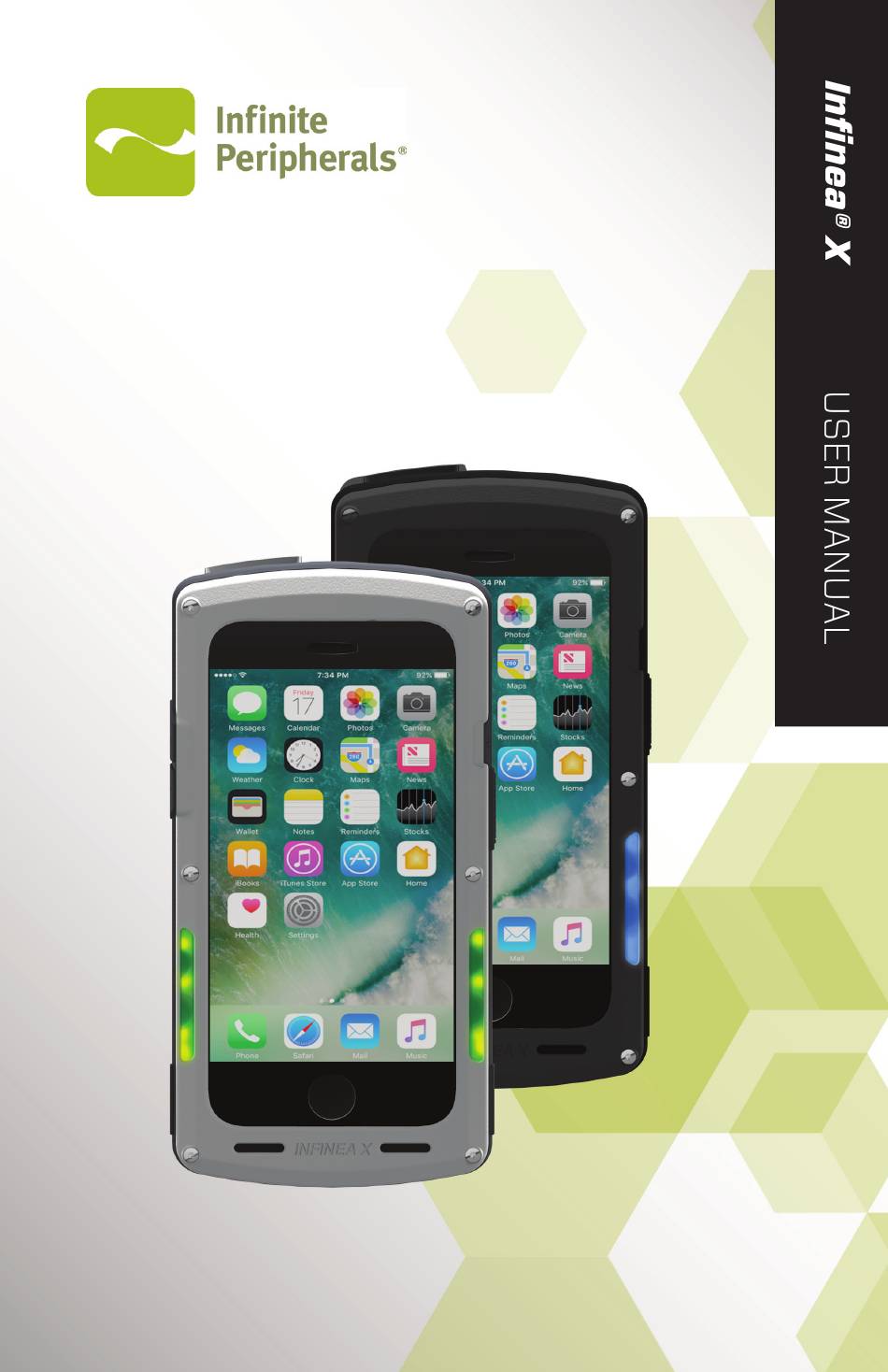

  • Page 1 Infinea ® for iPhone® 7...
  • Page 2 CONTACT INFORMATION Mobility Sales/ Infinite Peripherals, Inc. Technical Support Center 17681 Mitchell N. Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Fax: (949) 222-0375 Headquarters/ Infinite Peripherals, Inc. Main Warehouse 2312 Touhy Ave. Elk Grove Village, IL 60007...

  • Page 3: Legal Notice

    Made for this mobile digital device: • iPhone® 7 TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. Page 3...

  • Page 4: Table Of Contents

    FEATURES ........................ACCESSORIES ......................GETTING STARTED ..................Warnings, Cautions and Notes ........................First Steps ..........DEVELOPING APPLICATIONS FOR THE INFINEA X ..................PROGRAMMABLE OPTIONS ...................... PRODUCT OVERVIEW ..................ASSEMBLING THE INFINEA X ......................iPhone Installation ................. INSTALLING THE BATTERY PACK ..............
  • Page 5 ................. STATUS AND OPERATIONAL MODES .................... Programmable LED Status ..................RESETTING YOUR INFINEA X ....................... TROUBLESHOOTING ................... Troubleshooting > General ................... Troubleshooting > Scanner ....................Troubleshooting > RFID ..................CLEANING YOUR INFINEA X ....................Cleaning Precautions ......................TECHNICAL DATA ........................

  • Page 6: Box Contents

    • Carefully inspect the contents inside of the packaging for any signs of damage. If there are signs of damage, DO NOT attempt to use the unit. Notify your account executive or contact Infinite Peripherals technical support at support@ipcmobile.com. •...

  • Page 7: Features

    FEATURES The Infinea X allows you to scan barcodes into an iPhone. Before using the Infinea X, the battery should be fully charged. The following table will help you get your Infinea X ready for use. Feature Description The Infinea X supports one-dimensional (1D) and two dimensional...

  • Page 8: Getting Started

    NOTE provided. First Steps Step Purpose Section INSTALLING THE Install the The Infinea X battery is shipped with INFINEA X Battery approximately 30% of full charge capacity BATTERY PACK and should be fully charged before initial Charge the CHARGING THE use.

  • Page 9: Developing Applications For The Infinea X

    Software is not provided with your Infinea X. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea X into your iOS application requires the use of the Infinite Peripherals Universal SDK. The SDK incorporates an API specifically for developing applications to use the functionality of the Infinea X;...

  • Page 10: Programmable Options

    PROGRAMMABLE OPTIONS Below are some optional settings for the Infinea X which can be configured via the SDK. Programmable Description Options Enables or disables battery backup sharing capability to charge Set Charging the iOS device from the IX removable battery.

  • Page 11: Product Overview

    PRODUCT OVERVIEW iPhone Receiver Port T6 Screw T6 Screw iOS On/Off Volume Button Buttons Scan Button T6 Screw T6 Screw Status LED Status LED Programmable Button T6 Screw T6 Screw iOS Home Button Page 11...
  • Page 12 iOS Camera Hole Barcode Scanner RFID Antenna Battery Latch Battery Pack Page 12...
  • Page 13 iOS On/Off Button Scan Button Programmable Button Page 13...
  • Page 14 Volume Buttons Battery Status Button Page 14...

  • Page 15: Assembling The Infinea X

    ASSEMBLING THE INFINEA X iPhone Installation Open the Infinea X by loosening the socket head hex screws and gently flipping open the top cover. On the i0S device, set the Ring Silent switch to Ring Mode. Slide the iOS device* onto the Lightning Connector until it clicks into place.

  • Page 16: Installing The Battery Pack

    The Infinea X is designed to support Standard and Extended external swappable battery packs. The swappable battery pack design reduces down time of the Infinea X. Follow the steps below to install or replace your Infinea X battery pack. Check that the battery latch is in the fully open position.

  • Page 17: Charging The Infinea X

    Infinea X may be charged by attaching the Charging Cup to the bottom of the Infinea X and the USB end into an AC wall adapter. Due to charging requirements, the Infinea X and iPhone cannot be charged togther using a USB cable to PC connection.

  • Page 18: Charging Using An Electrical Outlet

    LEDs. Refer to the Battery Status table on Page 17 to determine the battery life in relation to the LEDs. To prevent electrical damage to the Infinea X and/or battery, please use the approved Charging Cup shipped with device. Page 18...

  • Page 19: Charging The User Replaceable Battery

    Storage Instructions To store the device when not in use for an extended period of time, remove the Infinea X battery and power off the IOS device. Battery Disposal Dispose of used batteries according to federal law. This may include disposing them at a battery-recycling center or hazardous waste collection site.

  • Page 20: Powering On The Infinea X

    The Infinea X uses a dual-purpose Scan/Power button to power on the Infinea X unit, as well as to scan barcodes. When the Infinea X is left idling for an extended period, the unit automatically goes into sleep mode to preserve the charge of the battery.

  • Page 21: Barcode Scanning

    Barcode Scanning To scan a barcode: Turn on the Infinea X by pressing the Scan button. Position the scan head so the red target is aimed at the barcode, and the barcode is within the width of the red illumination cross hairs.

  • Page 22: Status And Operational Modes

    The Infinea X provides application developers with programmable, multi-color LEDs, as shown in the figure below. Supported Colors: • • Blue • Green • Orange For information on programming the Infinea X LEDs, refer to the SDK documentation. Page 22...

  • Page 23: Resetting Your Infinea X

    Note: If the Infinea X does not restart, repeat the above steps, as needed. SYNCING YOUR INFINEA X To sync an iPhone with iTunes through the Infinea X, connect the Infinea X to a computer using the Charging Cup, as shown in the figure below.

  • Page 24: Troubleshooting

    RFID Tags/Cards, refer to the table below for possible causes. Troubleshooting > General Problem Possible Cause iOS device will not sync to • Infinea X is not configured for sync. iTunes. iOS touch screen does not • Top cover is not properly installed. respond to swipe and tap •...

  • Page 25: Troubleshooting > Rfid

    • Software decoding incorrectly. Unable to read certain RFID • RFID type is not configured. Tags/Cards. If you are having problems with your Infinea X which are not addressed by the table above, contact technical support at support@ipcmobile.com. Page 25...

  • Page 26: Cleaning Your Infinea X

    • Clean the Infinea X only when the battery module is properly installed and locked into the Infinea X. This will ensure proper sealing of the Infinea X prior to introducing any solutions and/or wipes used during the cleaning process.

  • Page 27: Technical Data

    TECHNICAL DATA MECHANICAL Compatibility iPhone 7 Apple Lightning™ connector Connectivity Pass-through sync via iOS Weight 213 g with battery (7.52 oz.) (without iOS device) 164mm (L) x 83mm (W) x 27.7mm (H) Dimensions 6.5in. (H) x 3.3in (W) x 1.1in (H) •...
  • Page 28 Page 28...

  • Page 29: Warranty

    Infinite Peripherals does not warrant, and is not responsible for, any damage to the Infinea X (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device.

  • Page 30: Product Returns And Servicing

    PRODUCT RETURNS AND SERVICING Visit our online support center at http://ipcmobile.com/support/rma-support. html. Use the link provided to create an account and gain access to our Knowledge Base and online support services. Through our online support center, you’ll be able to download files, open a Support Ticket, manage your RMAs, view your account Profile and subscribe to Alerts.

  • Page 31: Symbols For Use

    SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Serial Number Part Number Waste Electrical and Electric Equipment Do Not Autoclave Do Not Incinerate Mark of conformity to European Union Directives Complies with part 15 of the FCC rules Page 31...

  • Page 32: Federal Communications Commission (Fcc) Statement

    FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
