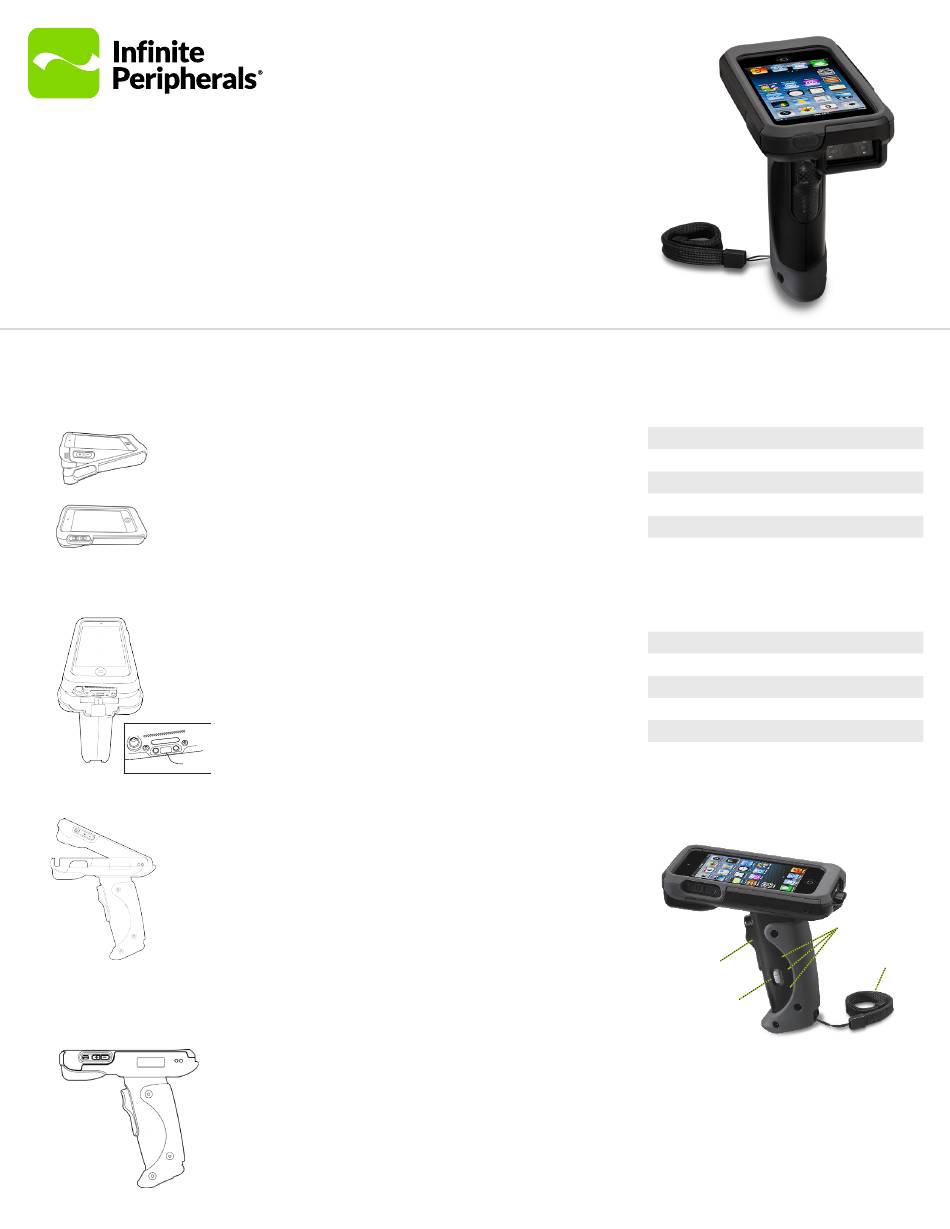

QUICK START GUIDE
Pistol Grip
For Linea Pro® 5
Assemble Pistol Grip
1. Insert the Linea Pro 5 into the silicone sleeve
for assembly.
2. Angle the assembly into the pistol grip, and
then onto the mini USB to connect the pistol
grip USB ribbon.
Female USB
3. Insert the assembly into the pistol grip, and
then press into place snugly.
4. Insert the remaining assembly, and press it
securely in place.
5. Tuck the silicone sleeve into the pistol grip
casing neatly.
Scan Barcodes
1. Press the pistol grip trigger to activate the
scanner.
2. Position the scan head near the center of a
barcode.
Note:
The pointer should extend outside of the edges of the
barcode.
3. Pull the pistol grip back slowly increasing the
distance between the barcode and scan head
until the barcode is read by the scanner.
Charge Pass-Through
The pistol grip is designed to
• Charge from the bottom of the handle.
• Support pass-through charging to the iOS
device using a USB to AC adapter or a station
charger accessory.
Note:
During pass-through charging, the pistol grip only begins to
charge after the iOS device is fully charged.
USB Port
Insert the mini USB cable (provided with your LP5)
into the USB port on the bottom of the pistol grip.
Charging Station Accessory
Before charging your pistol grip with a
charging station accessory, refer to the product
documentation provided by the manufacturer for
proper instructions.
Caution
:
To prevent electrical damage to your pistol grip and/or
battery, ensure only an approved 5V/2.1 AC adapter is used.
Battery Level Status
Press the battery status button to view the solid
LED lights.
Status Description
0-25% One LED
26%-50% Two LEDs
51%-75% Three LEDs
74%-100% Four LEDs
Charge Status
Charge status is indicated by flashing LEDs.
Status Description
0-25% 1st LED flashes
26%-50% 2nd LED flashes
51%-75% 3rd LED flashes
76%-99% 4th LED flashes
100% All four LEDs flash
Trigger
Charging Switch
LEDs
Hand Strap
