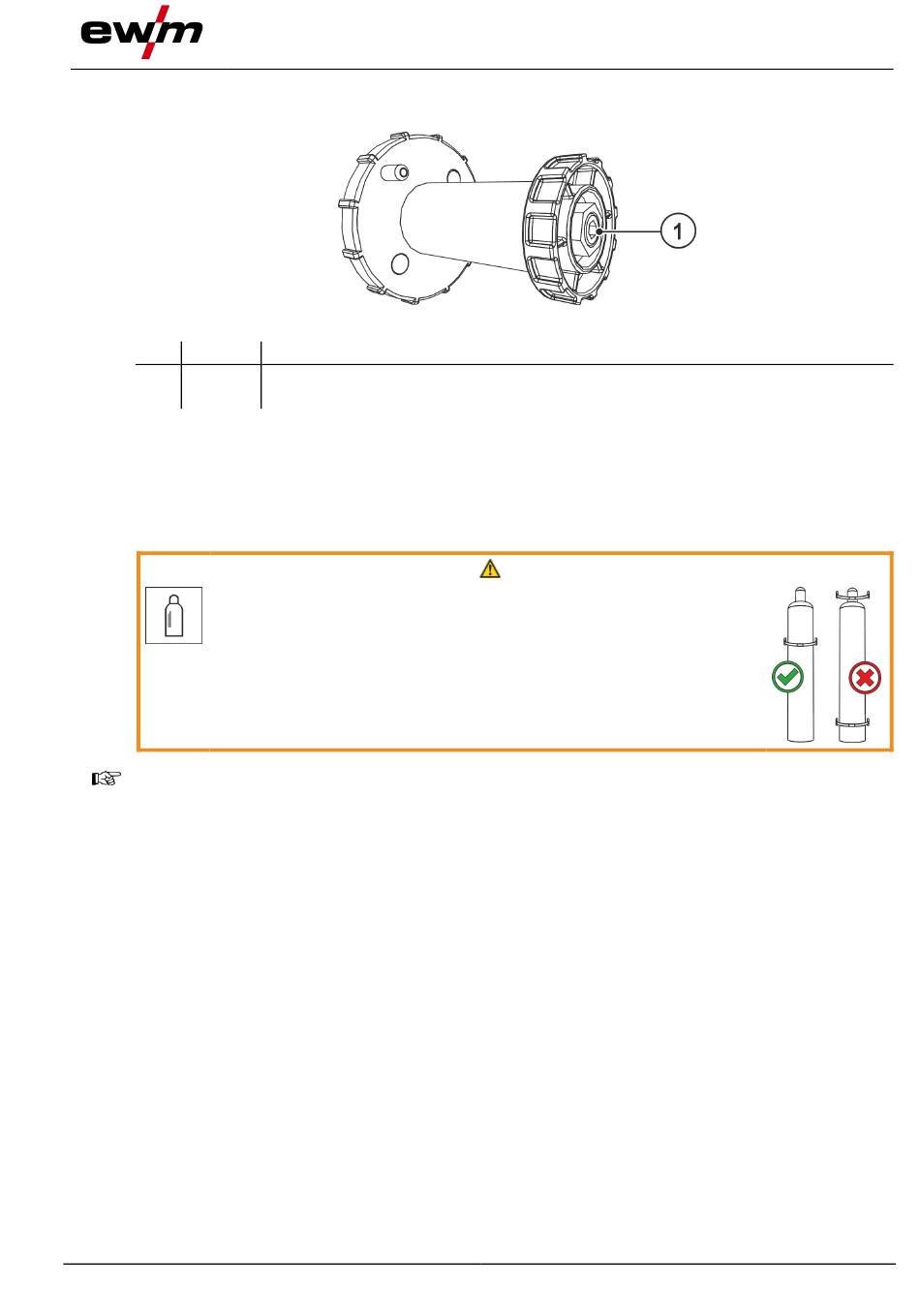

5.1.12.4 Spool brake setting

Item Symbol
1
•
Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!

5.1.13 Shielding gas supply (shielding gas cylinder for welding machine)

5.1.13.1 Connecting the shielding gas supply

Risk of injury due to improper handling of shielding gas cylinders!
Improper handling and insufficient securing of shielding gas cylinders
can cause serious injuries!
•
Place shielding gas cylinder into the designated holder and secure with
fastening elements (chain/belt)!
•
Attach the fastening elements within the upper half of the shielding gas
cylinder!
•
The fastening elements must tightly enclose the shielding gas cylinder!
An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a
fundamental requirement for optimum welding results. In addition, a blocked shielding gas
supply may result in the welding torch being destroyed.
•
Always re-fit the yellow protective cap when not using the shielding gas connection.
•
All shielding gas connections must be gas tight.
099-000236-EW501
25.04.2019
Description 0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
Design and function
Figure 5-17
