EWM tigSpeed continuous drive 45 hotwire Operating Instructions Manual page 40

Design and function
Transport and installation

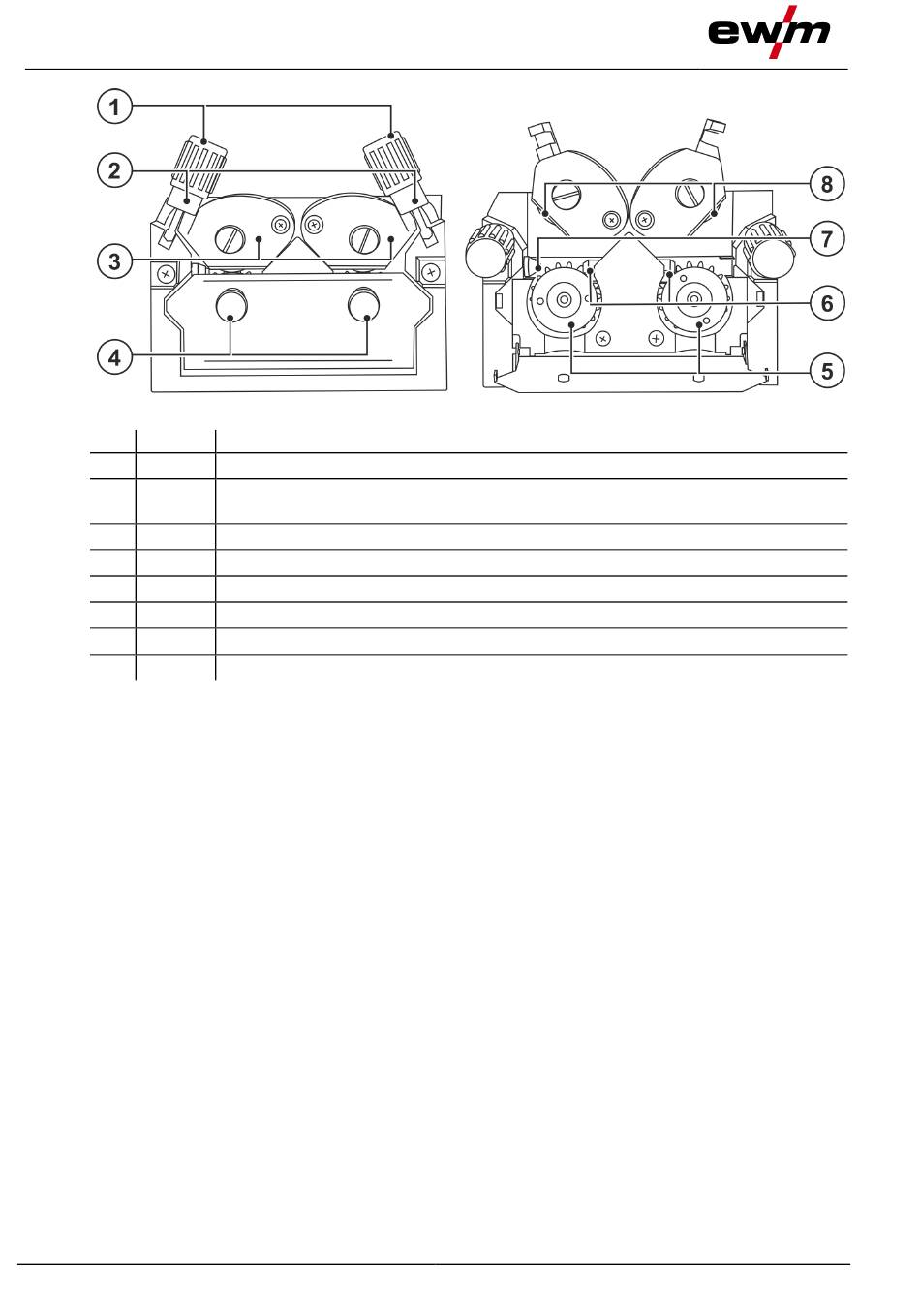

Item Symbol
1
2
3
4
5
6
7
8
•
Extend and lay out the torch hose package.
•
Unfasten pressure units and fold out (clamping units and pressure rollers will automatically flip
upwards).
•
Unwind welding wire carefully from the wire spool and insert through the wire inlet nipple over the
drive roller grooves and the guide pipe into the capillary tube and Teflon core using guide pipe.
•
Press the clamping element with the pressure roller back downwards and fold the wire units back up
again (wire electrode should be in the groove on the drive roller).
•
Set the contact pressure with the adjusting nuts of the pressure unit.
•
Press the wire inching button until the wire electrode projects out of the welding torch.
40
Description 0
Adjusting nut
Feed roll tensioner
Fixing the clamping unit and setting the pressure.
Clamping unit
Knurled screw
Drive roller
Guide tube
Wire feed nipple
Pressure roller
Figure 5-16
099-000236-EW501
25.04.2019
