Spool Brake Setting - EWM tigSpeed continuous drive 45 coldwire Operating Instructions Manual

Item Symbol
1
2
3
4
5
6
7
8
•
Extend and lay out the torch hose package.
•
Unfasten pressure units and fold out (clamping units and pressure rollers will automatically flip up-
wards).
•
Unwind welding wire carefully from the wire spool and insert through the wire inlet nipple over the dri-
ve roller grooves and the guide pipe into the capillary tube and Teflon core using guide pipe.
•
Press the clamping element with the pressure roller back downwards and fold the wire units back up
again (wire electrode should be in the groove on the drive roller).
•
Set the contact pressure with the adjusting nuts of the pressure unit.
•
Press the wire inching button until the wire electrode projects out of the welding torch.

5.1.11.4 Spool brake setting

Item Symbol
1
099-000237-EW501
25.04.2019
Description 0
Adjusting nut
Feed roll tensioner
Fixing the clamping unit and setting the pressure.
Clamping unit
Knurled screw
Drive roller
Guide tube
Wire feed nipple
Pressure roller
Description 0
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
Design and function

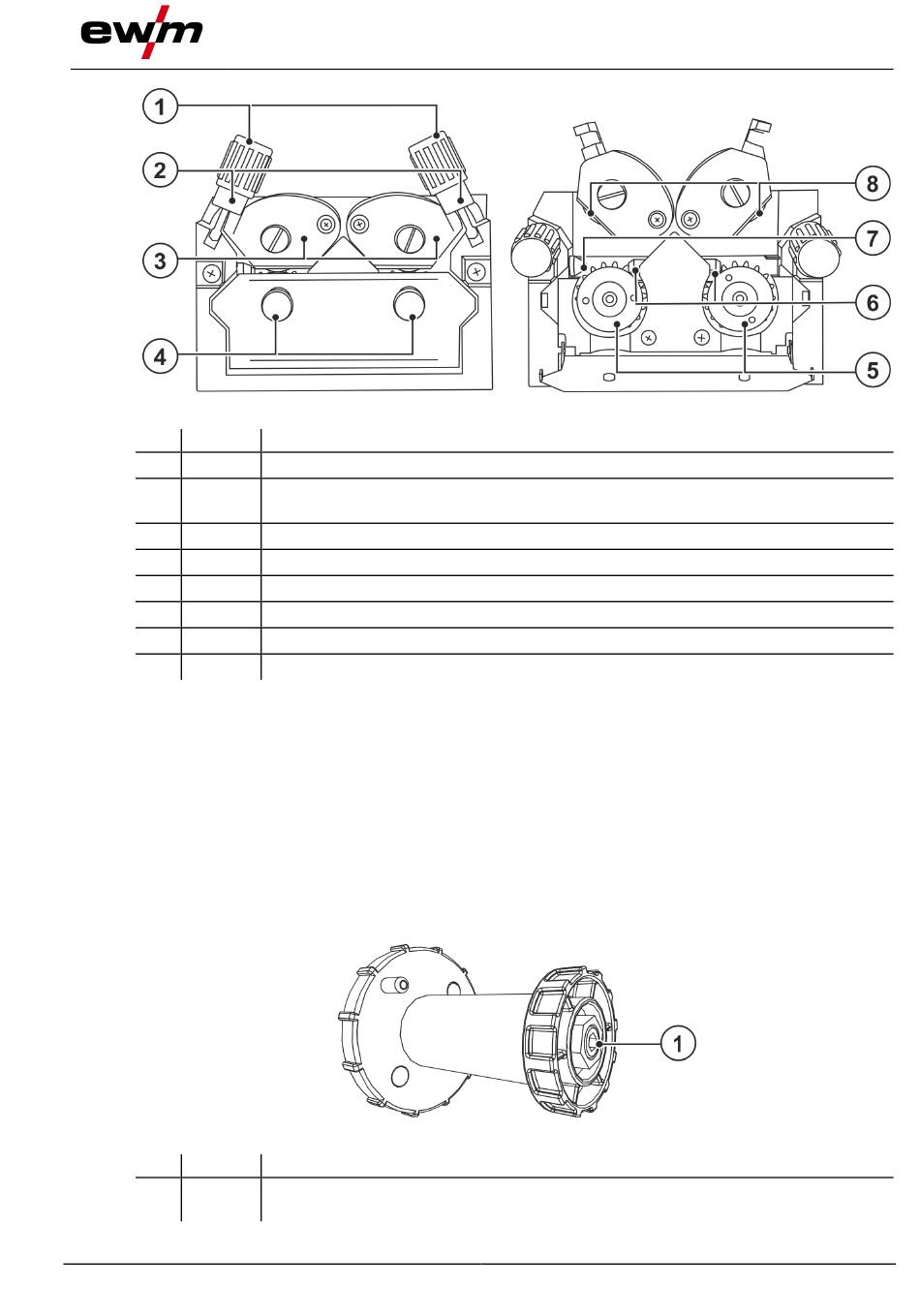

Figure 5-15
Figure 5-16
Transport and installation
39
