EWM tigSpeed continuous drive 45 hotwire Operating Instructions Manual page 17

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
099-000236-EW501
25.04.2019

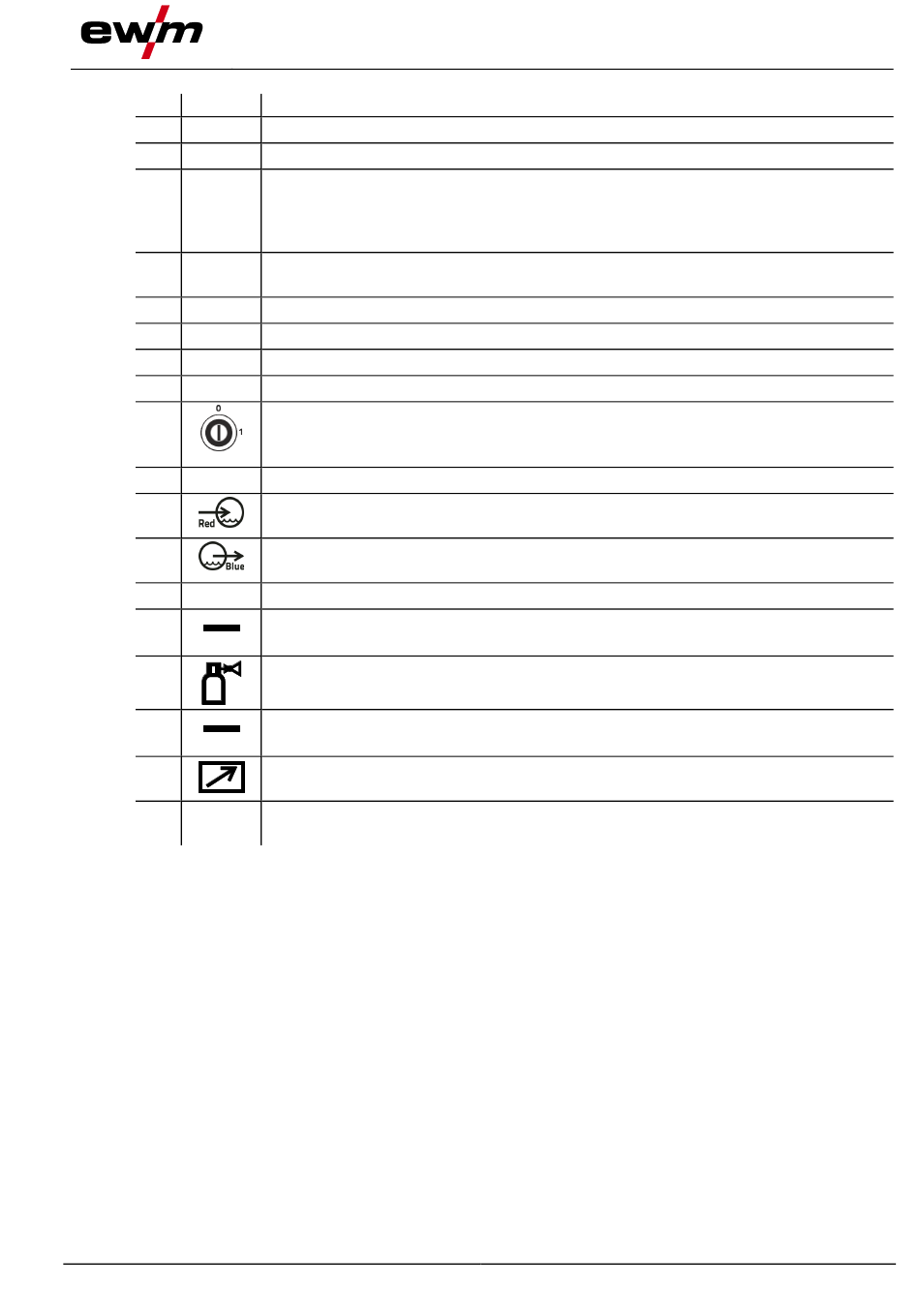

Machine description – quick overview
Description 0
Transport bar
Carrying handle
Protective cap
Cover for the wire feed mechanism and other operating elements.
Depending on the machine series, additional stickers with information on the
replacement parts and JOB lists will be located on the inside.
Wire spool inspection window
Check wire supply
Slide latch, lock for the protective cap
Machine feet
Torch holder
Protective cap > see 5.1.1 chapter
Key switch for protection against unauthorised use > see 5.3 chapter
1 ---------- changes possible,G front drive-4x-EX
0 ---------- changes not possible.
Machine control > see 4.3 chapter
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Cooling air outlet
Connection socket (TIG hot wire)
Hot wire power, minus potential
Quick connect coupling
Shielding gas
Connection socket (TIG)
Welding current, minus potential
Connection socket (12-pole)
Welding torch control lead
Wire electrode connection
Welding torch wire feed
Front view
17
