Intermediate hose package connection

Property damage due to strain relief not installed or not installed correctly!
The strain relief absorbs tensile forces on cables, plugs and sockets.
If strain reliefs are not installed or not installed correctly, the connector plugs or sockets may be
damaged.
•
The attachment must always take place on both sides of the intermediate hose package!
•
The connections of the hose package must be locked properly!
Item Symbol
1
2
3
4
5
6
7
•
Secure both hose package ends with the appropriate strain relief > see 5.1.9.1 chapter.
•
Push the cable socket for the welding current (TIG) onto the connector plug (TIG) and lock by turnng
to the right.
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
•
Insert the control cable plug into the connection socket (5-pole) and secure (the plug can only be
inserted into the connection socket in one position).
•
Screw the crown nut on the shielding gas lead gastight to the connecting thread (G¼").
32
Description 0
Power source
Intermediate hose package
Connector plug (TIG)
Welding current, minus potential
Connector plug, 5-pole
Control lead
Connecting nipple G¼, shielding gas connection
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply

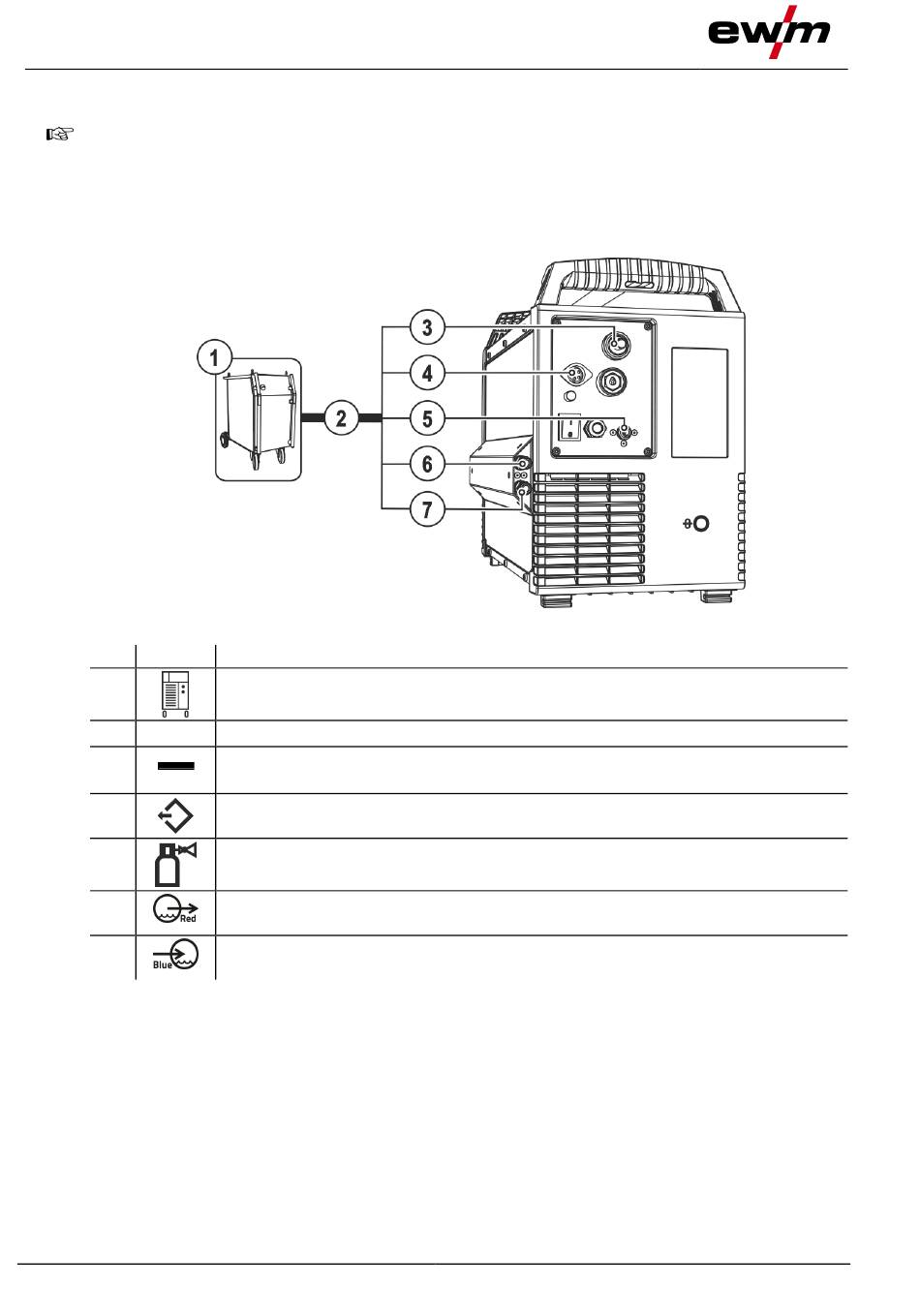

Figure 5-7
