EWM tigSpeed continuous drive 45 hotwire Operating Instructions Manual page 19

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
099-000236-EW501
25.04.2019

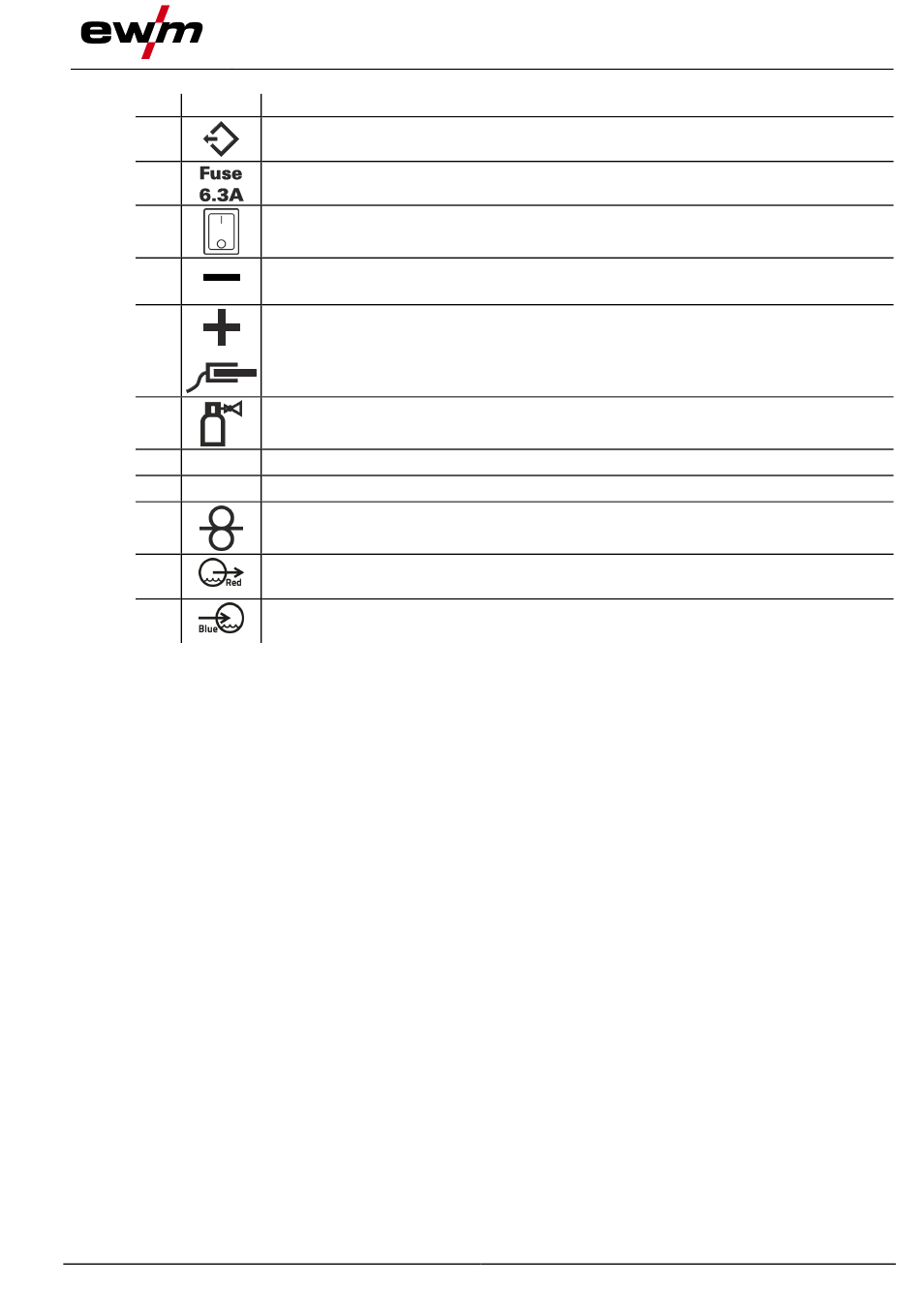

Machine description – quick overview
Description 0
Connector plug, 5-pole
Control lead
Machine fuse (6,3 A)
Main switch, machine on/off
Connector plug (TIG)
Welding current, minus potential
Connection socket (TIG hot wire)
Hot wire power, plus potential, workpiece connection
Connecting nipple G¼, shielding gas connection
Mains connection cable > see 5.1.7 chapter
Cooling air inlet
External wire feed inlet
Pre-cut casing inlet for external wire feed.
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Rear view
19
