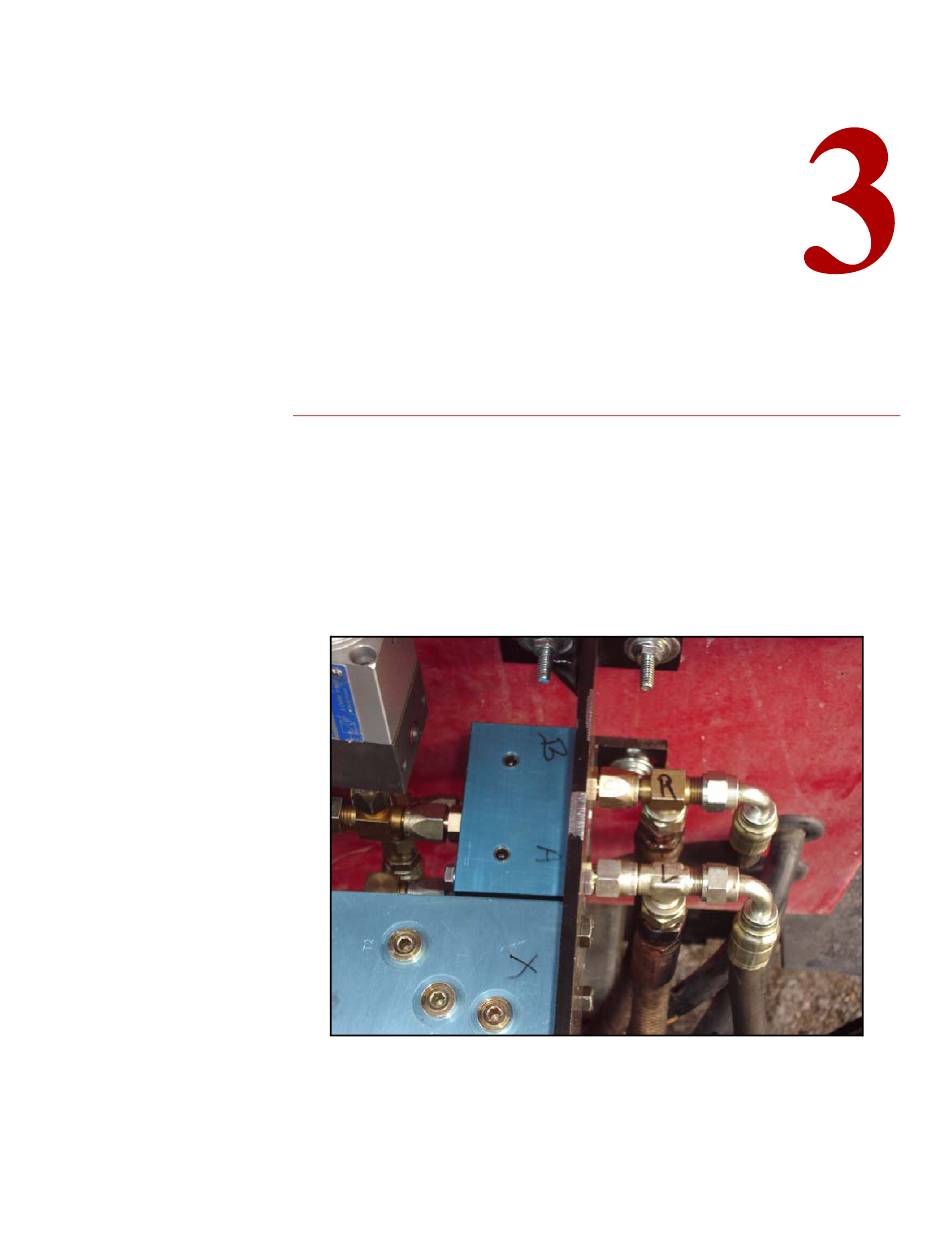

1. Position the hydraulic valve on the universal bracket, over the top of
the proper hole pattern. Secure the valve to the bracket using the
supplied bolts and washers.
2. Mount the smaller counterbalance valve to the bracket. Two mounting
holes and clearance holes/slots will have to be drilled to mount the
valves as shown. The valve can be moved up on the bracket to allow
the fittings to hang over the edge of the valve.
