CaseIH 4300 SmarTrax Supplement & Installation Manual

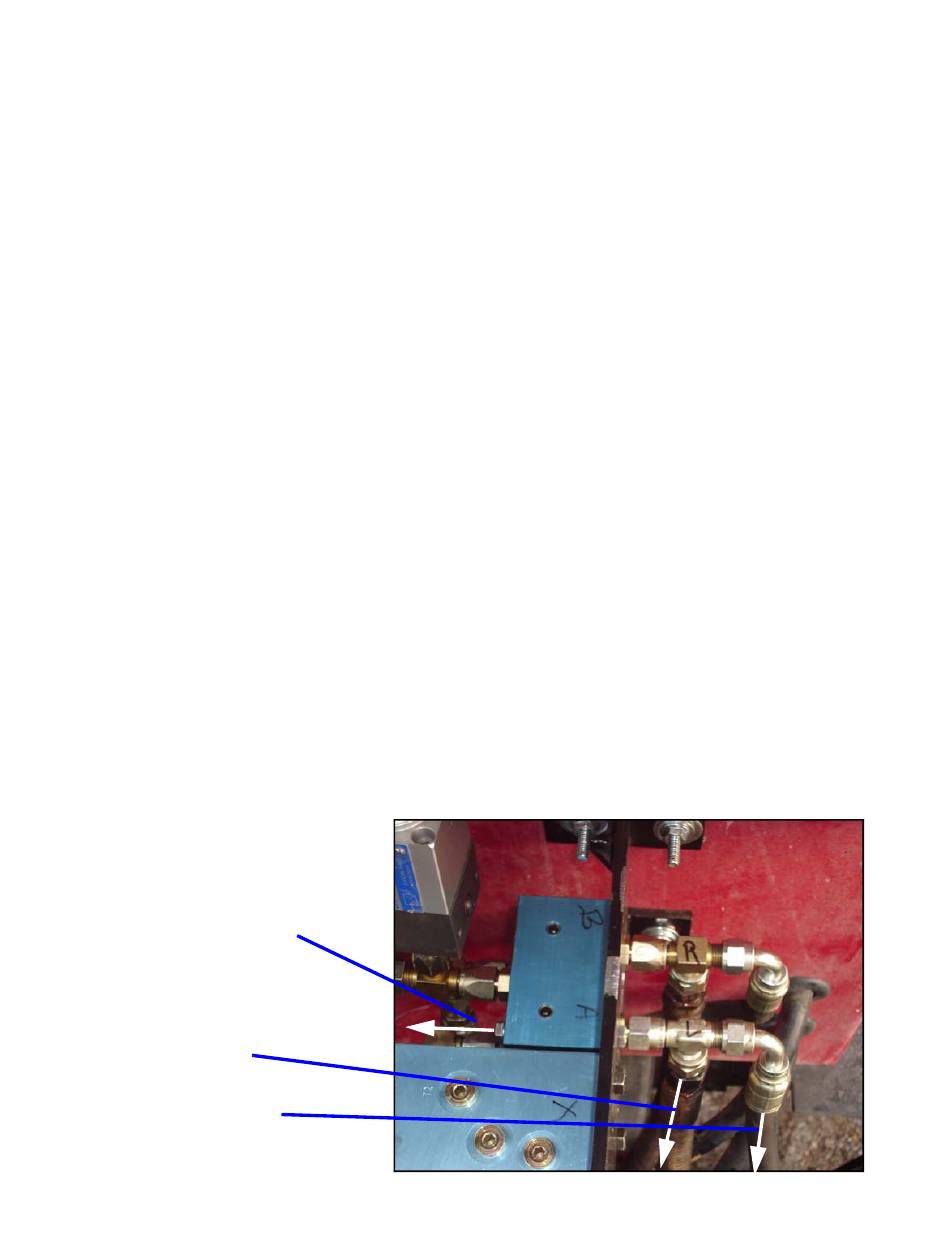

To left port on
steering orbital
To left steer
cylinder
To 'A' port on
SmarTrax valve
1 0
2. Attach the other end of the hose to the tee fitting that is connected to the
'T' Port on the SmarTrax valve.
'CB' to Right Steer Hose
1. Remove the hose attached to the right steer port of the orbital.
2. Connect the 'CB' to the right steer hose (P/N 214-1000-171) to the
open right steer port on the orbital.
3. Connect the other end to the 'B' port on the side of the counterbalance
valve with the brake port. You may need to install an elbow fitting on
the counterbalance valve to properly route the new hose.
'CB' to Left Steer Hose
1. Remove the hose attached to the left steer port of the orbital.
2. Connect the 'CB' to the left steer hose (P/N 214-1000-172) to the open
left steer port on the orbital.
3. Connect the other end to the 'A' Port on the side of the counterbalance
valve with the brake port. You may need to install an elbow fitting on
the counterbalance valve to properly route the new hose.
'B' Port to Counterbalance Hose
1. Install the supplied 9/16" JIC tee fitting to the port that is opposite the
'B' port on the counterbalance valve.
2. Connect the right steer hose that was disconnect from the orbital to one
of the open ports on the tee using a supplied reducer fitting.
3. Connect the 90 degree end of the 'B' Port to the counterbalance hose
(P/N 214-1000-429) to the remaining open port on the tee.
4. Connect the remaining open end of the hose to the 'B' port on the
SmarTrax Valve using a 90 degree fitting.
