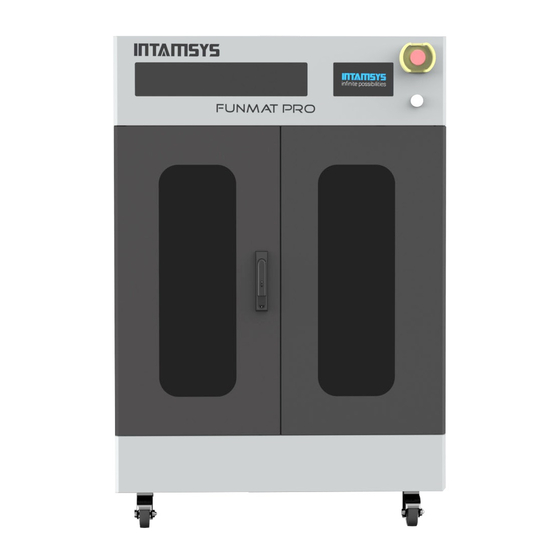

Intamsys FUNMAT PRO User Manual

High build volume industrial 3d printer
Hide thumbs Also See for FUNMAT PRO:
Table of Contents

Advertisement

Quick Links

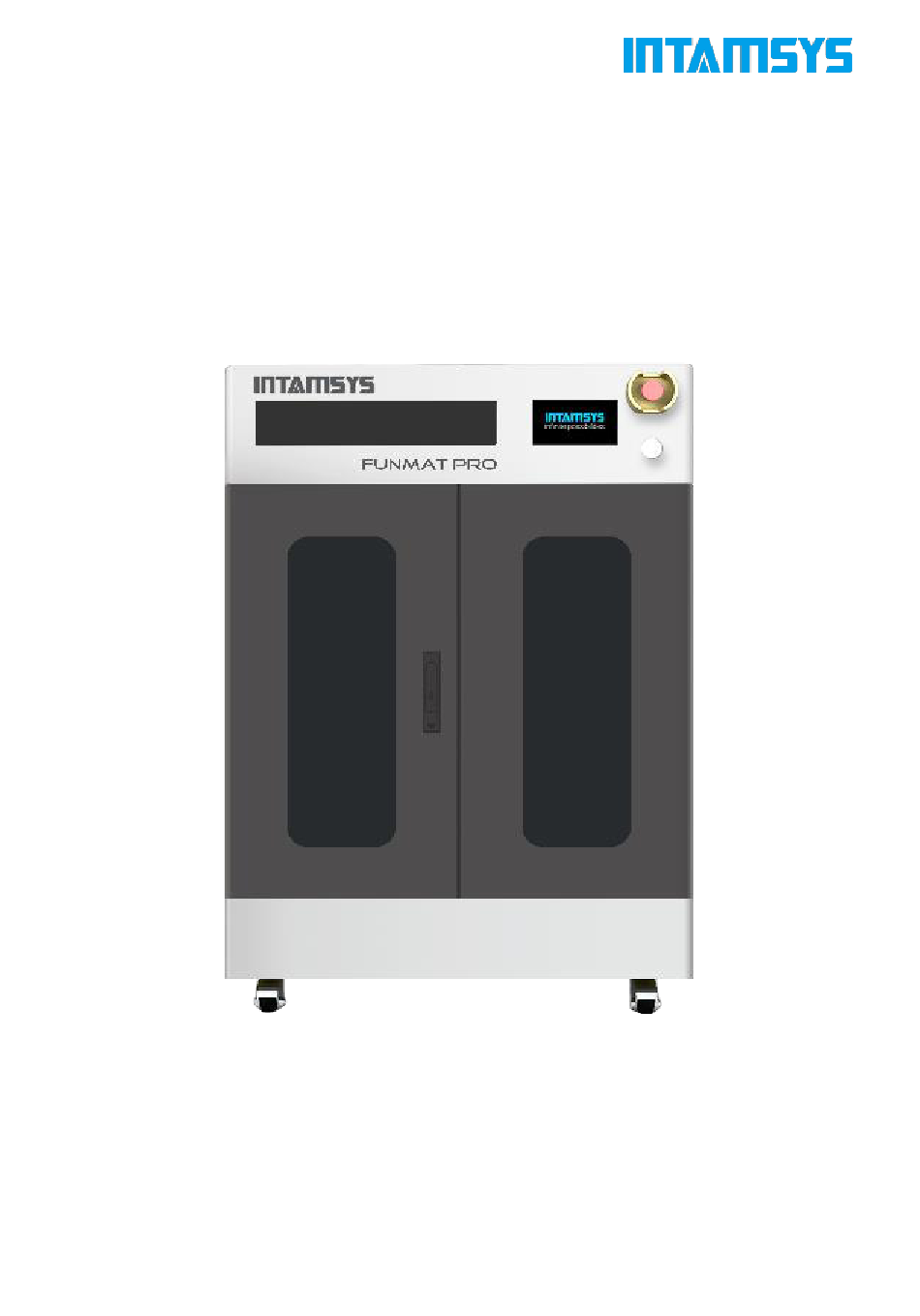

FUNMAT PRO 3D PRINTER

User manual
High Build Volume Industrial 3D Printer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUNMAT PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intamsys FUNMAT PRO

Summary of Contents for Intamsys FUNMAT PRO

  • Page 1: Funmat Pro 3D Printer

    FUNMAT PRO 3D PRINTER User manual High Build Volume Industrial 3D Printer...

  • Page 2: Disclaimer

    INTENDED USE INTAMSYS 3D Printers are designed and built for fused deposition modeling of various high quality plastics such as PLA, ABS, or PC within a commercial/business environment. The mixture of precision and speed makes INTAMSYS 3D Printers the perfect machines for concept models, functional prototypes, and the production of small parts.

  • Page 3: Table Of Contents

    CONTENTS FUNMAT PRO 3D PRINTER ........................1 DISCLAIMER .............................. 2 INTENDED USE ............................2 SAFETY AND COMPLIANCE ........................6 SAFETY MESSAGES ..........................7 Movement Safety ................................7 Electrical Safety ..................................7 Mechanical Safety ................................7 High Temperature Safety ..............................7 INTRODUCTION TO INTAMSYS ......................
  • Page 4 5 BUILDPLATE ..................................22 6 AXIS ....................................22 7 SETTINGS ..................................23 8 HELP ....................................23 REGULAR OPERATION .......................... 24 LOADING FILAMENT ..........................25 Print File ....................................33 Change Material During Printing ..........................35 Change material after print ............................. 36 Axis Movement .................................
  • Page 5 Circles Not Round / Lines Not Touching ......................... 50 Stringing ....................................50 First layer not sticking / Parts coming loose ......................51 Grinding....................................51 Tangled Filament ................................52 Feeder Pressure .................................. 52 Under Extrusion .................................. 52 Layer separation and splitting ............................. 53 Nozzle Clogged ................................

  • Page 6: Safety And Compliance

    SAFETY AND COMPLIANCE It is very important to work safely with your FUNMAT PRO 3D Printer. This chapter contains details about safety, certifications, and hazards. Please read all information carefully to prevent accidents and injuries.

  • Page 7: Safety Messages

    Still, we advise you to only reach into the machine when it is turned off. High Temperature Safety FUNMAT PRO comes with an all-metal nozzle, high-temperature build plate, and heated chamber. When printing functional materials with a chamber temperature of up to 60℃, the heat transmits to the outer frame, so we advise you not to touch the machine during the printing process.
  • Page 8 Caution: In case of emergency, disconnect the machine from the wall socket. Caution: The machine melts plastic during printing, and thus emits plastic odors. Make sure to set up the machine in a well-ventilated area. Please visit our website www.intamsys.com to learn more about support...

  • Page 9: Introduction To Intamsys

    INTRODUCTION TO INTAMSYS INTAMSYS is an industrial 3D Printer manufacturer renowned for its “world’s most affordable 3D Printer,” the FUNMAT PRO. It has offices in Shanghai, Dongguan, Nanjing, and also in Stuttgart (Germany), with resellers present across the worl.

  • Page 10: About Intamsys

    Please visit www.intamsys.com for more information. CONTACT DETAILS There are multiple ways to reach out to INTAMSYS as we have a strong online presence. E-mail: Send an e-mail to info@intamsys.com...

  • Page 11: About Funmat Pro

    ABOUT FUNMAT PRO Printer Overview Display Screen Dial SD Card Slot Filament And Tool Box Door Lock Emergency Switch Power Switch Power Socket Cooling Fan Nozzle Extruder Cover...
  • Page 12 Filament Tube Push Button--Control The Drive Gear Heating Bed...

  • Page 13: Printer Specifications

    PRINTER SPECIFICATIONS PRODUCTS FUNMAT PRO Printing Technology Extruder Single 0.6mm default Extruder Diameter Swappable 0.4, 0.6 and 0.8 mm nozzles Layer Resolution 50-200μ/0.05-0.5mm Position Accuracy XY:0.025mm, Z:0.0025mm Print Speed 30-200mm/s Filament Diameter 1.75mm Build Platform Glass PLA, PLA+, ABS, PC, Nylon, Carbon Fiber, Flex,...
  • Page 14 Input Supported File Type 3MF.OBJ.STL.X3D Output Supported File Type Gcode Operating Environment Temperature: 15°C To 32°C (60°F To 90°F) Humidity: 30% To 70% Storage Environment Temperature: 0°C To 54°C (32°F To 129.2°F) Humidity: 10% To Material Storage Temperature: 13°C to 24°C (55°F To 75°F) Humidity: 20% To 50% Environment Voltage Input 100~120VAC...

  • Page 15: Getting Started

    GETTING STARTED In this chapter, you will find information on provided accessories and components of 3D Printers, as well as on setting-up the machine.

  • Page 16: Accessory Checklist

    ACCESSORY CHECKLIST The accessories tray includes everything you need to use your FUNMAT PRO 3D Printer to get you started. Below is the list of accessories included with the machine. Number Part Name Model/Details Quantity Machine FUNMAT Pro Power Cord...

  • Page 17: Unpacking The Printer

    UNPACKING THE PRINTER Please put the box on a flat ground before you unpack it. Step 1: Take the machine out of the wooden case. Step 2: Open the front door of the printer. Step 3: Open the front door.
  • Page 18 Step 4: Connect the power cable. POWER ON THE PRINTER Step 5: Raise the platform (For details, see the "XYZ Movement" section of this manual).

  • Page 19: Set Up The Build Plate

    Set Up The Build Plate Slowly move the nozzle to the back of the machine by hand. Then, take the glass plate out from the accessories tray and place it on the build plate as shown in the picture to the right. Align the four holes underneath the glass plate with the four magnetic columns attached to the build platform.

  • Page 20: Lcd Display Overview

    LCD DISPLAY OVERVIEW The LCD Display can be broadly divided into seven sections. In this chapter, you can find a brief overview of the LCD Display.

  • Page 21: Lcd Display Overview

    LCD DISPLAY OVERVIEW LCD Display can be broadly divided into six sections. In this chapter, we can find a brief overview of different sections of the LCD display. 1 WELCOME This is the screen that gets displayed when you switch on the machine. 2 MAIN SCREEN The welcome screen is immediately followed by the main screen as shown on the right.

  • Page 22: Material

    4 MATERIAL On this screen, you can select the material you wish to print from a pre-determined list of materials. If you have a filament not present in the list, you can manually enter it and customize its print settings. 5 BUILDPLATE On this screen, you can perform the bed leveling process.

  • Page 23: Settings

    7 SETTINGS On this screen, you can modify nozzle temperature, build plate temperature, chamber temperature, change the language, and modify some other parameters. 8 HELP On this screen, you can find brief reading material various icons in the LCD screen and their functionality.

  • Page 24: Regular Operation

    REGULAR OPERATION After completion of the first run, you can start printing with your FUNMAT PRO 3D Printer. This chapter provides information about regular day-to-day usage of the printer.

  • Page 25: Loading Filament

    LOADING FILAMENT A leveled platform is a prerequisite for successful 3D printing. Your Funmat Pro 3D printer has been strictly leveled at the factory, and the build platform has been locked. Before printing, you only have to adjust the gap between the nozzle and the print platform glass to about 0.2mm (the...
  • Page 26 Step 2: When the nozzle moves to the center of the platform, turn the dial clockwise to raise the platform, place the leveling card between the platform and the nozzle, and finely adjust the platform height while gently sliding the leveling card.
  • Page 27 Preheat the printer before build plate leveling for more than 50min at will-printing chamber temp，like ABS, PC. Then do build plate leveling at this high temp and be careful of high temperature.
  • Page 28 In case the build plate moved and is not leveled because of the transportation or other reasons, please use the dial indicator to calibrate as follows: Step1: Please use double faced adhesive tape to stick the dial indicator on extruder cover. Step 2: Please choose“motor off”in order to manually move the extruder to the right front...
  • Page 29 Step 3：Please loose the nut to move the outer compass until the pointer points to “0”. Then, tight the nut.
  • Page 30 Step 4：Please move the extruder to the right front position . Please rotate 2mm wrench to make sure the pointer approaches “0”(tolerance: - 10um~+10um).The wrench is used to raise or drop the build plate( anti-clockwise to raise and clockwise to drop). Step 5：Please move the extruder back to the center position.
  • Page 31 Step 1: Open the filament box on the right side of the machine and place the material on the spool- holding bracket. Step 2: Pass the end of the filament through the limit switch into the material guide tube...
  • Page 32 Step 3: Select "Material" and choose the material you want to load. Step 4: Click ‘Load material’, then the material can be loaded automatically once the nozzle reaches its required temperature, then wait until the filament comes out from the nozzle.

  • Page 33: Print File

    Caution: The nozzle temperature is very high when the material is being extruded. Be careful not to touch nozzle during printing. Print File Step 1: Use glue on the build plate and wait for the machine heating up to the required temperature.
  • Page 34 Step 2: Input your SD card, and select “Print” on the LCD screen. Step 3: Select the file you want to print. Step 4: From this screen, you can find the printing information, including nozzle/chamber/plate temperatures, printing time, material, file’s name etc.

  • Page 35: Change Material During Printing

    Change Material During Printing Step 1: Select the pause icon from the menu. Step 2: When the nozzle stops, select “Change Material.” Step 3: When the nozzle temperature reaches the melting temperature of the material, pull the guide tube into the quick setting, press the spring button down, then the filament will come out from the nozzle.

  • Page 36: Change Material After Print

    Change material after print Step 1: If you want to change a new material, go to "Material" then "Unload Material." Step 2: The filament can be automatically pump back once the nozzle reaches its required temperature. Step 3: Please select the right material before loading or changing any new material.

  • Page 37: Xyz

    Select "Home" to return the X, Y, and Z coordinates to their home positions. Select "X Y Z" to move the X, Y, and Z coordinates manually. You can press the buttons or use the dial to move the nozzle and build plate to the desired location.

  • Page 38: Motors Off

    Motors Off Press "Motors Off" to power off the stepper motors. Settings In this settings section, you have the option to modify the temperature of the nozzle, the build plate, and the chamber. You can also change the language and modify a few other parameters. Nozzle Temperature Increase or decrease the nozzle temperature.

  • Page 39: Chamber Temperature

    Chamber Temperature Increase or decrease build plate temperature. On the screen, you can find the target temperature and actual temperature. You can modify the temperature by pressing the (+) or (-) buttons. Language On the screen, you can change the language. Other Parameters Under this option, you can change a few less significant...

  • Page 40: Remove Print & Clean Support

    Remove Print & Clean Support After the object has been printed, wait for a few minutes to let the chamber and platform cool down. Be careful with hot objects such as the chamber, platform, and nozzle. They may still be very hot. Use the shovel provided to remove the model.

  • Page 41: Maintenance

    MAINTENANCE It is extremely important that the FUNMAT PRO is always maintained properly. In this chapter, you will find various steps for doing so.

  • Page 42: Cleaning Glass Plate

    CLEANING GLASS PLATE After printing repeatedly, excess glue may get deposited on the build plate. This causes uneven print surface that will negatively affect future prints. To prevent this, the glass plate needs to be cleaned regularly. Below are the steps for cleaning the glass plate. Step 1: To lower the build plate, select “Axis,”...

  • Page 43: Cleaning Feeder

    Cleaning Nozzle While using the FUNMAT PRO 3D printer, the nozzle of the print core can get dirty due to material that sticks to the nozzle. This material doesn’t...

  • Page 44: Change The Nozzle

    Do not touch the nozzle and be careful while cleaning it as it will be very hot. Change the Nozzle FUNMAT PRO 3D printers can print a variety of non- metallic materials, but different materials may require use of a different nozzle, so as to avoid nozzle clogging.

  • Page 45: Lubricating Axis

    Step 3: Use the screwdriver to take out the screws. Step 4: Unplug the adapters behind the nozzle. Step 5: Replace the new nozzle and plug the adapters into the corresponding spots. Step 6: Reassemble the screws you took out in the third step.

  • Page 46: Filament Care

    In general, we suggest you lubricate the X and Y axes after 200-300 hours of printing.We can’t ship the lubricating grease for logistical reasons. So, we suggest you to buy the machine grease by yourself. We recommend you use lithium-based grease onto the axis guide rails Filament care Keep your filament in a sealed bag when not in...

  • Page 47: Troubleshooting

    TROUBLESHOOTING In this chapter, you will find solutions to various frequently occurring problems with 3D Printed parts.

  • Page 48: Warping

    Note: We referred to www.3dverstan.se for this content as the common problems while printing are the same across different FDM 3D Printers. Warping Warping mainly happens with ABS. Warping happens when the plastic cools and contracts. As the print cools down and shrinks slightly, it starts to pull in on itself.

  • Page 49: Shifted Layers

    Shifted Layers If a printer suddenly shifts the layers it is most likely because one or more pulleys are not secured properly to the axis/ axes. Tighten the set screws that hold the pulleys in place very tightly. Another issue might be the head being too stiff. Add some sewing machine oil to solve this issue.

  • Page 50: Circles Not Round / Lines Not Touching

    Circles Not Round / Lines Not Touching When you are trying to print circles, it is possible they don’t come out perfectly circular. This problem stems from backlash caused by slack belts. To solve this issue the belts should be tightened. To tighten the belts, loosen the stepper motor, pull it downward or upward to tighten the belt and then tighten the stepper motor screws.

  • Page 51: First Layer Not Sticking / Parts Coming Loose

    First layer not sticking / Parts coming loose The most common cause of this problem is improper leveling of the build plate. It is very important that the build plate is perfectly leveled in relation to the movement of the print head and that the distance between the nozzle and the plate is as close to perfect as possible.

  • Page 52: Tangled Filament

    Tangled Filament A tangled filament can cause numerous printing problems. Make sure the filament can unspool unhindered. Feeder Pressure The amount of pressure the feeder puts on the filament is adjustable. This pressure should be adjusted to the optimal level to prevent filament grinding.

  • Page 53: Layer Separation And Splitting

    Layer separation and splitting One major reason for layer separation and splitting is the layer height being too large. As a rule of thumb, layer height should be at most 80% of the nozzle diameter, i.e., if you are using 0.40 mm nozzle, layer height should not be greater than 0.32 mm.
  • Page 54 between the nozzle and the build plate. If the nozzle is too close, the filament will be obstructed from coming out of the nozzle. In such a case, you should re-level the bed.

  • Page 55: Software Overview

    SOFTWARE OVERVIEW This section contains details about the INTAM-suite slicing engine developed in-house by INTAMSYS, based on the open source slicing software CURA.

  • Page 56: About Software

    Step 1: You can download the software from the SD card provided with your printer. It is also available on our website: www.INTAMSYS.com. Follow the instructions to complete the installation. Step 2: Double click the software on the SD card provided.

  • Page 57: Using Software

    Step 4: Choose all the components you wish to install with INTAMSUITE and click “Install.” Step 5: Wait a moment for the program to install the software. Step 6: INTAM-suite is ready to use! Step 7: Click "Finish." USING SOFTWARE...

  • Page 58: File Screen

    Step 1: Select the model of your printer and click "Add Printer", you are now ready to use INTAM- Suite with your machine type! File Screen On this screen you can perform regular operations like OPEN file, Save G-Code, etc. Edit Screen...

  • Page 59: View Screen

    View Screen Settings Screen Help Screen Load Section...

  • Page 60: Using Software

    USING SOFTWARE Step 1: Load STL. Step 2: Edit STL Make sure your object is laid flat on the platform. You can use the Rotate, Scale and Mirror buttons in the bottom-left corner to modify your objects. The viewing button is located in the top-right corner. You can change the viewing mode to get a better view of the objects.
  • Page 61 the print, you can go to “full settings” by clicking the “switch to full settings” option in the Expert menu. On this page, you can modify each print setting yourself. If you are a professional 3d printer user, there are more setting options available for you in the expert settings.

  • Page 62: Glossary

    GLOSSARY In this section, you can find definitions for various regularly used 3D Printing related terms.

  • Page 63: Glossary

    GLOSSARY Definition Terminology Numerical 3D Bioplotter Well reputed 3D BioPrinting machine from Envisiontec. The process of creating cell patterns in a confined space using 3D 3D Bio-Printing printing technologies, where cell function and viability are preserved within the printed construct. A three-dimensional design usually produced using various 3D 3D Model modeling softwares like CATIA, CREO, SOLIDWORKS.
  • Page 64 Amorphous Without a clearly defined shape or form. Object with physical properties that are different in different Anisotropic directions. Platform on which material gets extruded. A 3D Printing process where binder is jetted after each layer to glue Binder Jetting it to the next layer.
  • Page 65 Catia Popular 3D Modeling software. A type of 3D Printing technology from 3D Systems, primarily for CJP : ColorJetPrinting printing multi- color objects. CLIP Continuous Liquid Interface Production. A process used in the manufacturing sector that involves the use of CNC Machining computers to control machine tools.
  • Page 66 Flowrate The volume of fluid that passes per unit time. The common name for the most widely used numerical control (NC) G-Code programming language. It is used mainly in computer-aided manufacturing to control automated machine tools. Glass Transition Temperature (Tg) is the temperature region where Glass Transition the polymer transitions from a hard, glassy material to a soft, Temperature...
  • Page 67 An object having a physical property which has the same value when Isotropic measured in different directions. Used to hold and guide a workpiece during either a machining operation or some other industrial process. A kind of tape used to avoid product warping during the printing Kapton Tape process, especially for ABS material.
  • Page 68 MJF : MultiJetFusion Proprietary 3D Printing technology developed by HP. MJP : Multi-Jet Printing Another term for Poly Jet Printing. A molecule that can be bonded to other identical molecules to form Monomer a polymer. National Electrical Manufacturers Association offers standards for NEMA various products like Stepper Motors.
  • Page 69 Process of changing the properties of photopolymer by exposing it Photopolymerization to light. PolyJet 3D Printing works similarly to inkjet printing, but instead of PJP : Polyjet Printing jetting drops of ink onto paper, PolyJet 3D Printers jet layers of curable liquid photopolymer.
  • Page 70 to create a strong foundation on which to build the upper layers of your part. RAMPS RepRap Arduino Mega Pololu Shield. A set of techniques used to quickly fabricate a scale model of a Rapid Prototyping physical part or assembly using three-dimensional computer aided design (CAD) data.
  • Page 71 SLM: Selective Laser A rapid prototyping technique designed to use a high power laser to Melting melt and fuse metallic powders together. SLS : Selective Laser A type of 3D Printing process where a laser is used to sinter powder Sintering particles.
  • Page 72 INTAMSYS TECHNOLOGY CO., LTD. www.intamsys.com 021-5846 5932 info@intamsys.com Floor, Building C9, No. 3188 Xiupu Road, Pudong New District, Shanghai, P.R.China 201315...
