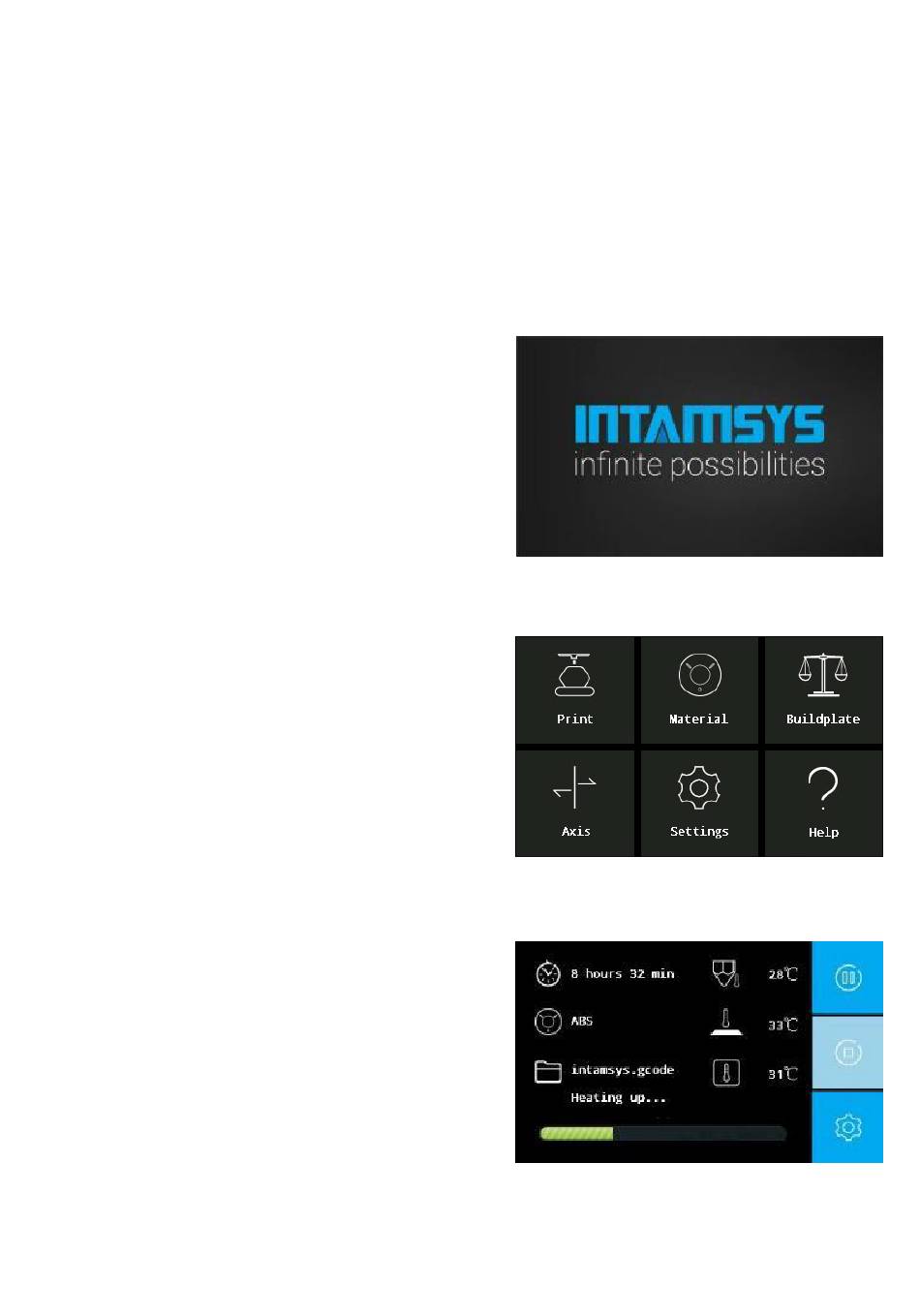

LCD DISPLAY OVERVIEW

LCD Display can be broadly divided into six sections. In this chapter, we can find a brief overview of
the
different sections of the LCD display.

1 WELCOME

This is the screen that gets displayed when you
switch on the machine.

2 MAIN SCREEN

The welcome screen is immediately followed by the
main screen as shown on the right. On the main
screen, there are six sections – (a) Print (b) Material
(c) Buildplate (d) Axis (e) Settings (f) Help.

3 PRINT SCREEN

When you select the "print" option, it will show the
files in your SD card. Once you choose the file, the
screen on the right appears. On this screen, you
can find the temperature of the nozzle, the build
plate, the temperature of the chamber, the
material type being used, the total time remaining
and the print progress.
