QUICK START GUIDE
FUNMAT PRO 410

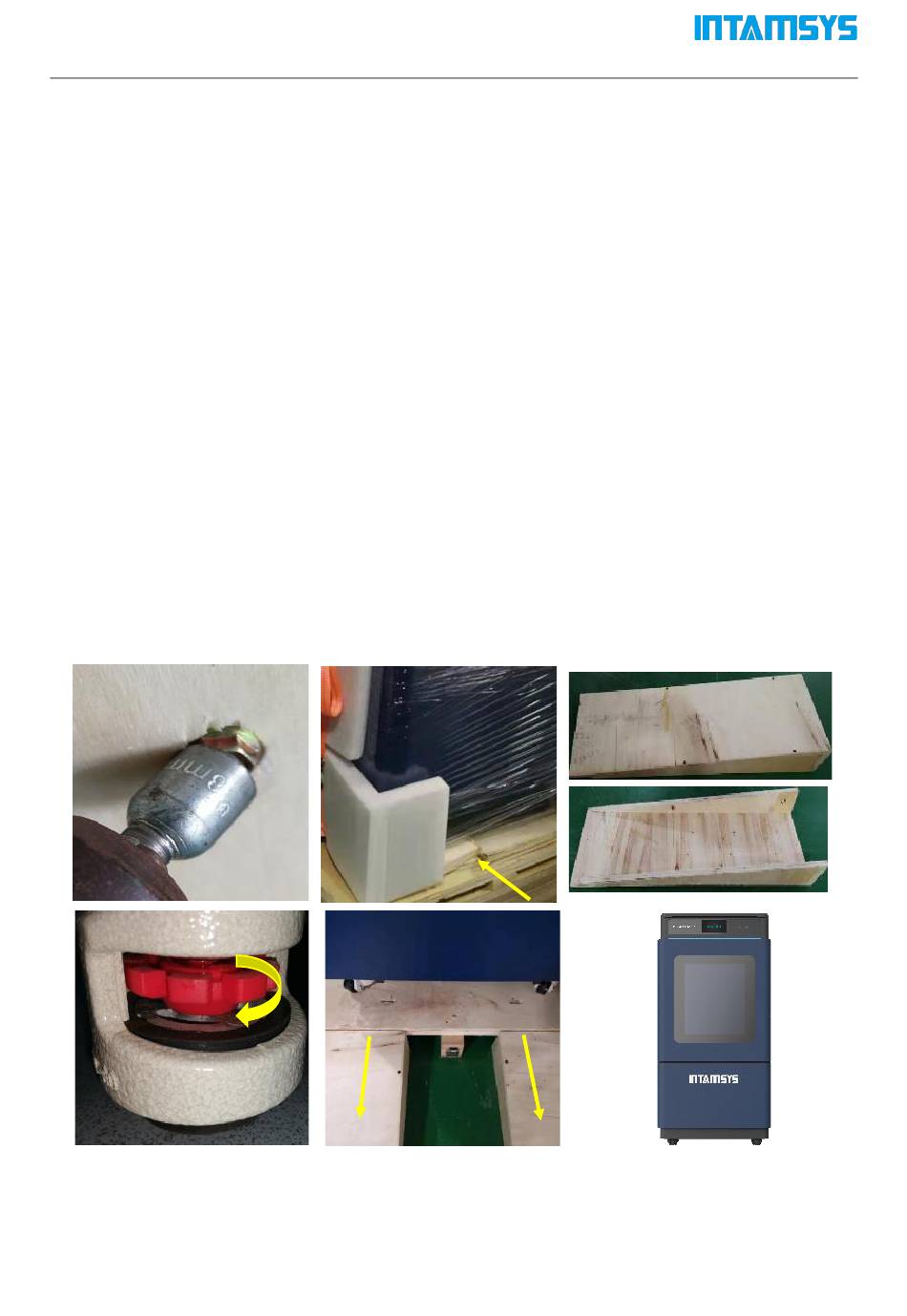

Remove The Packaging
Unscrew the wooden box with an 8mm sleeve, remove all the plates, the ties, the
STEP 1:
stretch film.
Take out the wooden plates under the printer, use a cross screwdriver to assemble
STEP 2:
them into ramps with the nails attached on the plate, then connect the ramps to the
baseplate.
Make sure the ramps are properly and securely mounted together.
Release the caster wheels by rotating clockwise, gently move the printer to a flat,
STEP 3:
solid and sturdy ground.
4: After moving the printer to the right place, remember to tighten the caster wheels
STEP
by rotating anti-clockwise.
PN: 005-0801
QUICK START GUIDE
1 / 13
REV: E04
