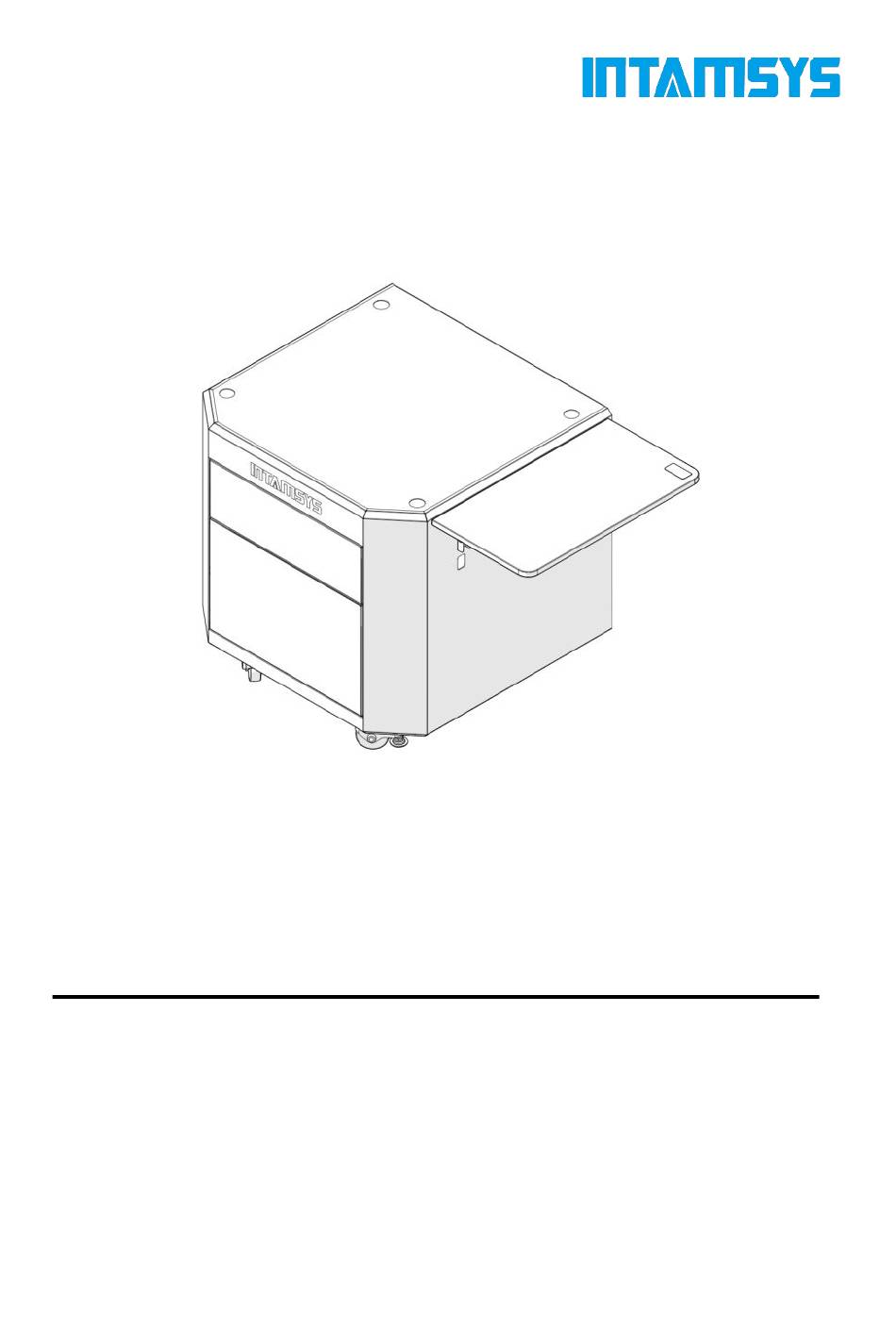

- Page 1 USER MANUAL INTAMCabinet...
-
Page 2: Safety Notice
Support_America@intamsys.com 1.2 Safety Notice 1. If the INTAMCabinet is placed in a fixed place for a long time, be sure to fix 4 casters. How to fix the casters please refer to Section 3. 2. The drawers and pallets must be within the load-bearing range and do... -
Page 3: Specification
User manual ×1 2.3 Components INTAMCabinet provides a support platform for the FUNMAT PRO 310, which is convenient for printer operation. The bottom of cabinet is equipped with 4 casters for easy overall movement. INTAMCabinet has two drawers. The upper can store tools and spare parts, and the lower... - Page 4 Tools drawer Pallet Storage drawer Casters Figure 2.1 Schematic diagram of INTAMCabinet FUNMAT PRO 310 INTAMCabinet Figure 2.2 Schematic diagram of INTAMCabinet with FUNMAT PRO 310...
- Page 5 Tweezer x1 High temperature resistance glove x1 *Printhead x1 Copper brush x1 *Nozzle x6 Allen key with handle x4 *PVP glue x2 Allen key set x2 Cutting pliers x1 Spatula x1 Flash drive x1 Needle-nose plier x1 Figure 2.3 Tools in upper drawer(* Printhead/Nozzle/PVP glue Need to purchase separately) Figure 2.4 Filaments in lower drawer...
-
Page 6: Operation
3 Operation 3.1 Unfold/fold pallet As shown in the picture, counterclockwise rotate the pallet until you hear a “click” to unfold the pallet. Rotate the pallet counterclockwise Figure 3.1 Unfold the pallet Press the quick release buckles on both sides at the same time, rotate the pallet clockwise... - Page 7 Figure 3.2 Fold the pallet 3.2 Casters fixed When the FUNMAT PRO 310 is placed on top of INTAMCabinet and ready to print, in order to avoid printing quality problems or safety problems caused by the shaking of the cabinet, it is recommended to fix the casters before printing, also make sure the 4 feet of the printer are inserted into the grooves.
- Page 8 Figure 3.3 Fix the casters 3.3 Drawer unlock and open The drawer of the cabinet is opened by PUSH-PUSH, first press the drawer inward, and the drawer will pop out automatically, press it again, and the drawer will close. PUSH TO OPEN Figure 3.4 Open the drawer...
-
Page 9: Warranty Instructions
4 Warranty Instructions 4.1 Warranty period Items Warranty duration Body 1 year INTAMCabinet Tools kit 3 months 4.2 Non-warranty regulations 1. Damage caused by improper use, maintenance or storage; 2. Damage caused by natural disasters such as: fire, flood, earthquake;... - Page 10 Address: 11479 Valley View Road Ostfildern Deutschland Eden Prairie, MN 55344 Copyright ©2023 INTAMSYS Technology. All rights reserved. The information at hand is provided as available at the time of printing, INTAMSYS reserves the right to change any information without updating this publication.
