Figure 5-4: Disconnecting The Transducer Cables; Figure 5-5: Removing The Finish Washer - Edgetech 4200 User Hardware Manual

Side scan sonar system
Hide thumbs
Table of Contents

Advertisement

5. Remove the tail cone.
6. Disconnect all transducer cables from the connector end cap.
4200 SIDE SCAN SONAR SYSTEM USER HARDWARE MANUAL

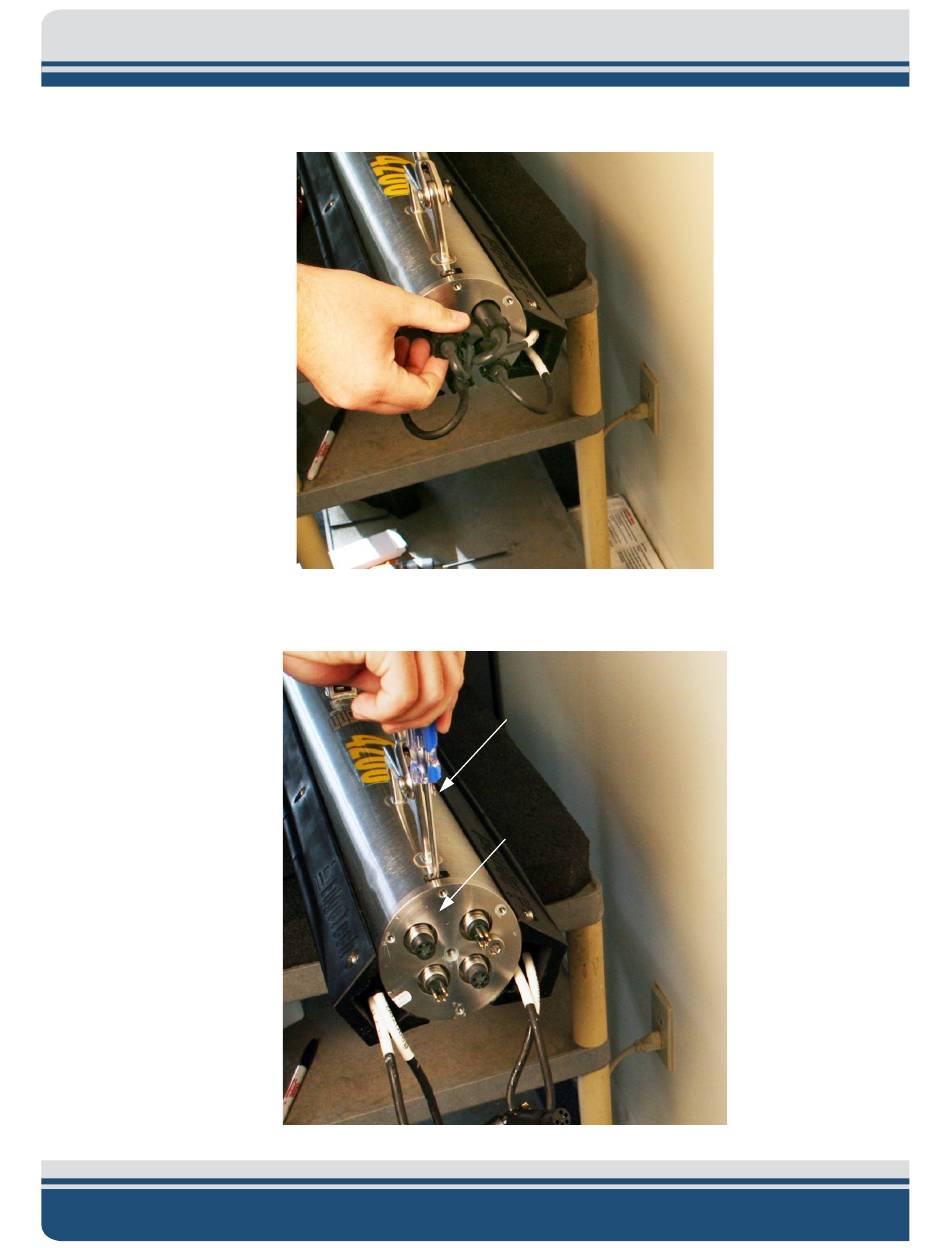

Figure 5-4: Disconnecting the Transducer Cables

Figure 5-5: Removing the Finish Washer

Phillips
screw
driver
Finish
washer
5-4
0004842_REV_N
