Summary of Contents for Edgetech 6205S

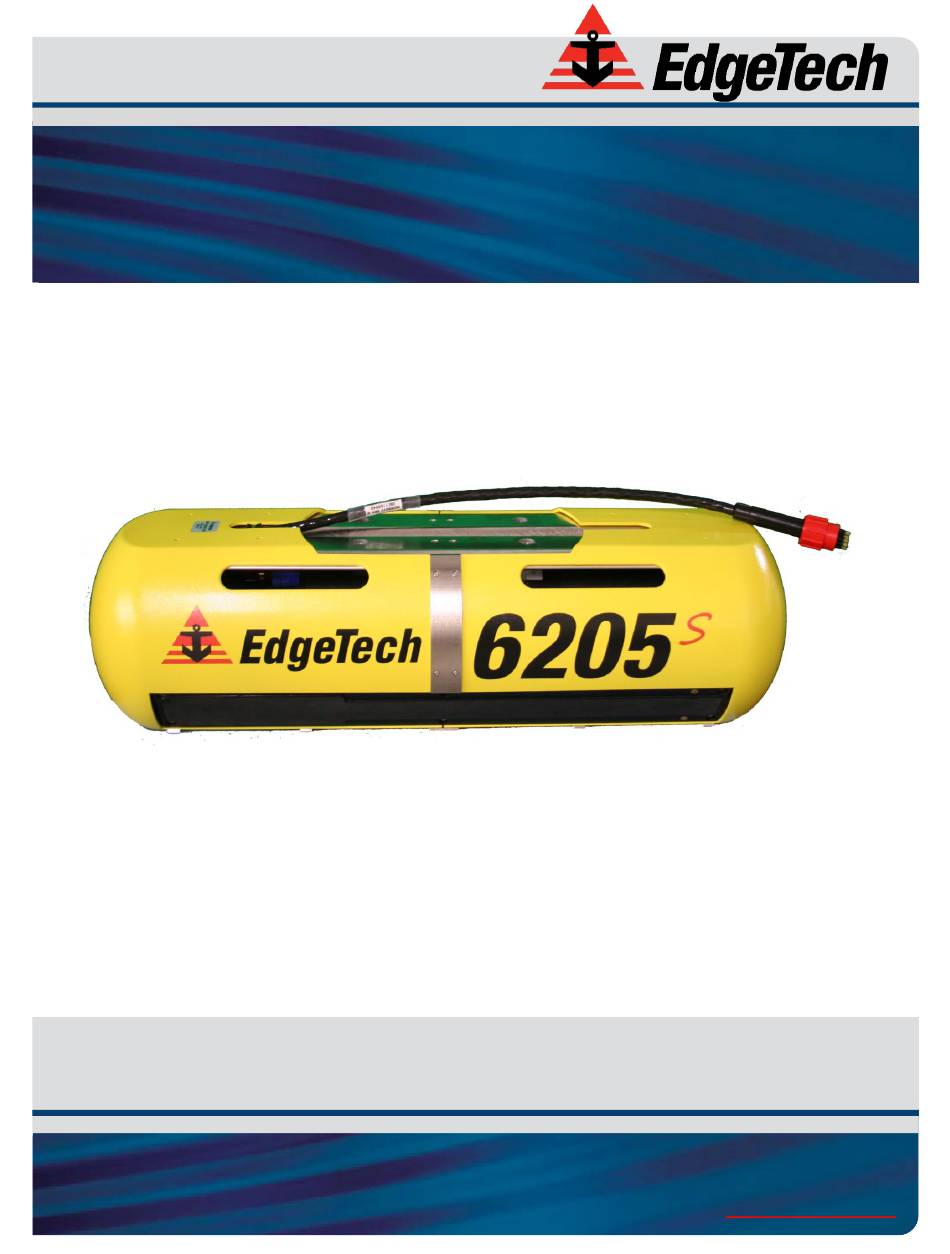

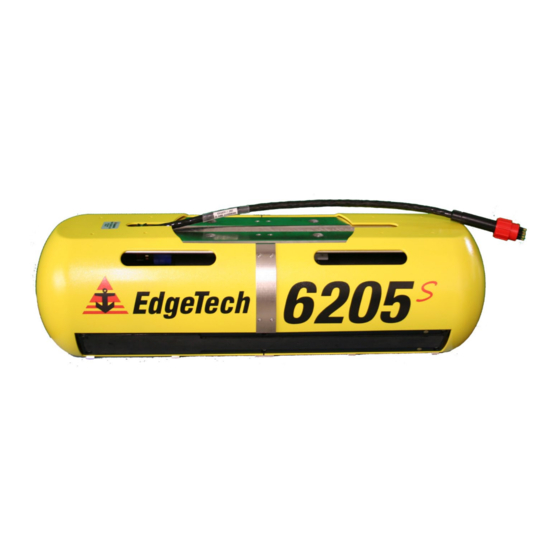

- Page 1 6205S BATHYMETRY & SIDE SCAN SYSTEM U S E R H A R D W A R E M A N U A L 0020300_REV_E 11/6/2020 EdgeTech 4 Little Brook Road West Wareham, MA 02576 Tel: (508) 291-0057 Fax: (508) 291-2491...
- Page 2 The information, figures, and specifications in this manual are proprietary. They are issued in strict confidence on condition that they not be copied, reprinted, or disclosed to a third party, either wholly or in part, without the prior written consent of EdgeTech. Any reproduction of EdgeTech-supplied software or file sharing is strictly prohibited.
-
Page 3: Attention - Read This First
A TT ENTI ON – RE AD T HIS FI RST ! Warnings, Cautions, and Notes Where applicable, warnings, cautions, and notes are provided in this manual as follows: WARNING! Identifies a potential hazard that could cause injury or death. CAUTION! Identifies a potential hazard that could damage equipment or data. -
Page 4: Hardware Variations And Compatibility
HA R DWA RE V AR IA TI ONS AN D CO MPA TI BIL IT Y The 6205s Bathymetry & Side Scan System contains both standard and proprietary hardware. At times, EdgeTech may change the standard components due to their availability or performance improvements. -
Page 5: About This Document
EdgeTech has made every effort to document the 6205s Bathymetry & Side Scan System. However, EdgeTech assumes no liability for errors or for any damages that result from the use of this manual or the equipment it documents. EdgeTech reserves the right to upgrade features of this equipment and to make changes to this manual without notice at any time. -
Page 6: Warranty Statement
All equipment manufactured by EdgeTech is warranted against defective components and workmanship for a period of one year after shipment. Warranty repair will be done by EdgeTech free of charge. Shipping costs are to be borne by the customer. Malfunction due to improper use is not covered in the warranty, and EdgeTech disclaims any liability for consequential damage resulting from defects in the equipment's performance. -
Page 7: Software Service Overview
EdgeTech provides software services free of charge. This software agreement does not address customer- specified modifications or enhancements. These services may be ordered separately. Furthermore, EdgeTech software upgrades are meant for the sole use of EdgeTech customers. Any reproduction of EdgeTech-supplied software or file sharing is strictly prohibited. -
Page 8: Returned Material Authorization
R ET URN ED M A TER IA L AU T HOR I ZA TIO N Prior to returning any equipment to EdgeTech, a Returned Material Authorization (RMA) Number must be obtained from USTOMER ERVICE RMA Purpose The RMA Number identifies returned equipment when it arrives at our receiving dock and enables tracking while at our facility. -
Page 9: Customer Service
CU ST O MER SE RVI CE Customer service personnel at EdgeTech are always eager to hear from users of our products. Your feedback is welcome and is a valuable source of information that we use to improve these products. -
Page 10: Company Background
USBL positioning systems, and bathymetric systems—that have become standards in the industry. EdgeTech has also consistently anticipated and responded to future needs through an active research and development program. Current efforts are focused on the application of cutting-edge CHIRP and acoustic technology. -
Page 11: Table Of Contents
1.4 Discover Software ..........................1-3 1.4.1 Third-Party Software ......................... 1-3 1.5 Optional Equipment ......................... 1-3 1.5.1 Adaptor Flange .......................... 1-3 SYSTEM DESCRIPTION ....................2-4 2.1 The 6205s Sonar Head ........................2-4 2.1.1 Mounting Plate ......................... 2-6 2.1.2 Housing ............................. 2-7 2.1.3 Sonar Processor ........................2-7... - Page 12 3.3 Power Requirements ........................3-14 3.4 Environmental Specifications ......................3-14 3.5 Topside Specifications ........................3-14 3.6 The 6205s Topside Sonar Interface Box ..................3-15 3.6.1 6205s-R Rack Mount Topside Interface .................. 3-16 3.6.2 6205s-P Portable Topside Interface ..................3-16 3.6.3 Topside Computer Requirements Specifications ..............3-17 3.7 Deck Cable ............................
- Page 13 5.4 Field Exchangeable Frequency Operations ..................5-38 CONNECT TO SONAR ....................6-44 6.1 Connecting to Sonar via Remote Desktop ..................6-44 6.1.1 Connecting with the 6205s-R ....................6-44 6.1.2 Connecting with the 6205s-P ....................6-45 6.2 Confirming Supporting Data is Present ..................6-45 MAINTENANCE ......................
-
Page 14: List Of Figures
Figure 2-4: 6205s Electronics Housing and Arrays Installed ..............2-8 Figure 2-5: Acoustic Center Location in X, Y, and Z and Bolt Pattern of Standard 6205s – 0019604 ..2-10 Figure 2-6: Acoustic Center Location in X, Y, and Z Dimensions and Bolt Pattern with Adaptor Flange –... - Page 15 Figure 5-12: Remove the Existing Transducer ..................5-42 Figure 5-13: Mount the New Transducer....................5-43 Figure 6-1: Manual Remote Desktop Credentials for Customer Supplied Computer ......6-44 Figure 6-2: Sonar 192.9.0.101 Remote Desktop Connection Window ............ 6-45 Figure 6-3: Sonar 192.9.0.101 Remote Desktop Connection Window ............ 6-46 Figure 6-4: Serial Port Information Window ....................
- Page 16 Figure 8-29: Eth1 data output ........................8-75 Figure 8-30: Data packets required, but at 25Hz or 50Hz, not 1Hz ............8-76 Figure 8-31: 1PPS settings example, Falling Edge and 1msec duration ........... 8-77 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E...
- Page 17 L IS T OF T A BL ES Table 3-1: Physical Specifications ......................3-12 Table 3-2: Acoustic Specifications ......................3-13 Table 3-3: Power Requirements ......................3-14 Table 3-4: Environmental Specifications ....................3-14 Table 3-5: 6205s Topside Interface Specifications ................... 3-14...
-
Page 18: Overview
EdgeTech’s Full Spectrum® CHIRP technology, the 6205s exceeds IHO SP-44, NOAA, and USACE specifications for feature detection and bathymetric point data uncertainty. EdgeTech’s MPES technology enables the 6205s to produce a wider and cleaner swath (over 200º) than current technologies, resulting in superior coverage enabling faster and safer survey completion. The 6205s concurrently rejects multipath effects, reverberation, and acoustic noise commonly encountered in shallow water environments. -
Page 19: Applications
550 / 1600 kHz Dual Frequency Side Scan with 550 kHz Bathymetry Data The modular design of the 6205s allows for multi-frequency bathymetry options in a single sonar head. The field exchangeable array capability allows both shallow and deep-water operations but is only available with 230 / 550 kHz Side Scan systems. -
Page 20: Discover Software
• Spares Kit 1.5.1 Adaptor Flange An adaptor flange is available if the standard 6205s hole pattern will not mate to a customer’s static pole- mount. The Adaptor Flange is attached to the 6205S and a customer’s pole mount by... -
Page 21: System Description
The frequency sets listed above were chosen to provide optimum results for any given water depth up to 200m (660ft) below the transducer. The 6205s is for water depths between 5m – 50m (15ft – 164ft). Optimal frequency depends on survey requirements. -
Page 22: Figure 2-1: 6205S Sonar Head Components
OUNTING LATE (SVS) OUND ELOCITY ENSOR OUSING (PORT and STBD) ONAR RRAYS ONAR ROCESSOR (PORT and STBD) ONAR RRAYS OUSING Figure 2-1: 6205s Sonar Head Components NOTE: Figure 2-1 The terms used in are referenced throughout this manual. -
Page 23: Mounting Plate
2-3. IGURE EdgeTech advises mounting the 6205s Sonar Head to the bow of a survey vessel. By placing the system at the bow, the sonar should be far enough away from most interference, such as hull echoes, propeller noise, and wake. -
Page 24: Housing
2.1.4 Sound Velocity Sensor The 6205s Sonar Head has a flooded section used to house an AML Sound Velocity Sensor (SVS), which provides a response time of 47 μs, a resolution of 0.001 m/s, and a theoretical accuracy of ±0.025 m/s. A closer look at the SVS is presented in 2-4. -
Page 25: Figure 2-4: 6205S Electronics Housing And Arrays Installed
Figure 2-4: 6205s Electronics Housing and Arrays Installed 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 26: Sonar Arrays
The side-scan sonar operates at 230/550 kHz, 540/850, or 550/1600 kHz and collects simultaneously on both frequency channels. Bathymetry is obtained on either the 230 kHz or the 550 kHz. The 6205s utilizes two arrays (port and starboard) to map the seafloor, much like a dual-head multi-beam system. Each 6205s array is constructed using ten independent longitudinal PZT elements and two multi-segment PZT strings. -
Page 27: Figure 2-5: Acoustic Center Location In X, Y, And Z And Bolt Pattern Of Standard 6205S - 0019604
2-10 Figure 2-5: Acoustic Center Location in X, Y, and Z and Bolt Pattern of Standard 6205s – 0019604... -
Page 28: Figure 2-6: Acoustic Center Location In X, Y, And Z Dimensions And Bolt Pattern With Adaptor Flange - 0021206
2-11 Figure 2-6: Acoustic Center Location in X, Y, and Z Dimensions and Bolt Pattern with Adaptor Flange – 0021206... -
Page 29: Specifications
3-12 S PE CI FI CATIO NS This section details the 6205s system specifications. 3.1 Physical Specifications PHYSICAL Size Without Adapter Flange: 75.9 L x 24.4 W x 20.8 H cm (29.8 L x 9.6 W x 8.2 H in) With Adapter Flange: 75.9 L x 24.4 W x 25.5 H cm... - Page 30 3-13 Sonar Frequency 230 kHz 550 kHz Beamwidths 1° x 0.7° 1° x 0.5° (Across Track x Along Track) Across track resolution expressed as a beamwidth at nadir Max Sounding 100 m 50 m Depth Dependent on environmental conditions Max Swath Width 400 m 200 m Assumes a flat seafloor...
-
Page 31: Power Requirements
Operating 0 to 80%, Non-Operating 0 to 100% Non-Operating 0 to 100% Table 3-4: Environmental Specifications 3.5 Topside Specifications Detailed specifications for 6205s Topside Interfaces and Sonar Heads are provided in INTERFACE MODEL 6205S – RACK MOUNT 6205S - PORTABLE PHYSICALS Size L: 48.3cm x W: 52.1cm x H: 8.9cm... -
Page 32: The 6205S Topside Sonar Interface Box
(3) RS232 serial ports to intake navigation, heading, and altitude data from the supporting sensors. The 6205s Topside Sonar Interface Box serial ports are configured to meet specific requirements. The first two RS232 serial ports are configured for high speed and high accuracy, while the third RS232 serial port is configured for standard serial connections. -
Page 33: 6205S-R Rack Mount Topside Interface
Minimum computer requirements are found in sub-section 3.6.3 of this manual. If the 6205s-R Rack Mount Topside Interface Box does not turn on, check the on/off switch on the back panel. It is located next to the power plug. 3.6.2 6205s-P Portable Topside Interface The 6205s-P Portable Topside Interface is a splash-proof design of the 6205s-R Rack Mount Interface box. -
Page 34: Topside Computer Requirements Specifications
Figure 3-3: 6205s-P Portable Topside Interface Box, Side View 3.6.3 Topside Computer Requirements Specifications The topside computer must be able to run EdgeTech’s Discover Bathymetric Acquisition Software and any additional third-party software. To do so, it must include the following minimum requirements: •... -
Page 35: Deck Cable
Cat 5e 4-pair stranded conductors that meet or exceed TIA 568-B and is suitable for 10Base-T and 100Base-T. The deck cable is terminated with a Subconn 16 pin wet mate connector on both ends, has a breaking strength of 545 kg (1200 lbs), and provides power and telemetry to 6205s Sonar Head. CAUTION! DO NOT use Deck Cables for towing. -
Page 36: Mechanical Drawings
3-19 3.8 Mechanical Drawings This section contains supporting drawings for the 6205s Swath Bathymetry and Dual Frequency Side Scan Sonar System: Figure 3-4: 6205s Exploded View... -
Page 37: Figure 3-5: 6205S Exploded View With Adaptor Flange
3-20 Figure 3-5: 6205s Exploded View with Adaptor Flange... -
Page 38: Figure 3-6: 6205S Transducer
3-21 Figure 3-6: 6205s Transducer... -
Page 39: Figure 3-7: 6205S Array Color Codes Diagram
3-22 The 6205s Arrays have been color-coded based on their operating frequency. The color code is shown and described below: COLOR CODES Color Code: Blue = 230/550SS– 230 Bathy Red = 230/550SS – 550 Bathy Yellow = 550/850SS – 550 Bathy Green = 550/1600SS –... -
Page 40: Figure 3-8: 6205S Wiring Diagram - 0019627
3-23 Figure 3-8: 6205s Wiring Diagram – 0019627... -
Page 41: Connections And Formats
CO NNE CT I ONS A ND F O RM A TS The 6205s System relies on specific data formats and connections to produce high-quality images and measurements. This section describes these data formats and connections and provides diagrams to better understand the system's hardware and data flow. -
Page 42: System Connections And Data Flow
4.2.1 Ethernet LAN Connections The Ethernet LAN connection from the sonar head to the 6205s topside interface is made using a physical wired connection via a 1m (40inch) pigtail extension and the standard 20m (65 ft) Deck Cable. The 6205s sonar interface then connects to a topside computer via a standard RJ-45 ethernet plug. -
Page 43: Serial Port Connections
4-26 4.2.2 Serial Port Connections There are three RS-232 serial ports provided on the 6205s Sonar Interface box. COM1 and COM2 have been configured for high speed and high accuracy). COM3 is configured for standard RS-232 serial connections. Typical latencies for the high speed/high accuracy ports are less than 100us, whereas the standard serial port has up to 100ms. -
Page 44: Serial Port Configuration Examples
These processed navigation and attitude data are transmitted (along with the raw side-scan data) with a common timestamp up the deck cable to the 6205s sonar interface. They are then passed to the topside computer through an Ethernet cable and via the 100Mbps link on an Ethernet port (IP Address: 192.9.0.99). -
Page 45: Ethernet Port Configuration Examples
CONFIGURING COM PORTS. 4.2.3.2 Ethernet Port Configuration Examples The 6205s can receive navigation and altitude data from supporting sensors via the Ethernet connection utilizing UDP. Refer to 8.3.4 UDP C for more information on configuring 6205s for UDP... -
Page 46: Pps Port Configuration
The output rate of the POS-MV should be set to 50Hz. The POS-MV must also be set to Falling (Negative) Edge or Active Low for the 1PPS as the 6205s defaults to sync on the falling edge. The POS-MV must also be set to UTC (default), not GPS, for the main time frame. -
Page 47: Sonar Data Flow
4-30 Figure 4-3: Figure 4 3: 6205S System Is Optimized To Work With A Falling Edge 1PPS Signal If a falling edge trigger is not available, a rising edge trigger can be used. There are no software or hardware adjustments required. However, a latency equivalent to the input trigger’s pulse width will be generated. -
Page 48: Figure 4-4: Sonar Data Flowchart
IGURE 1. The auxiliary sensors provide time, heading, position (latitude/longitude), and motion (roll, pitch, and heave) data to the 6205s Sonar Interface Box via the provided RS-232 serial ports or UDP connections over the ethernet link. 2. Auxiliary data is then relayed without additional latency to the 6205s Sonar Head via the deck cable. - Page 49 8. Finally, the third-party saves native data files that contain every piece of information to post- process the data and generate final hydrographic products. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E...
-
Page 50: Topside Provided Isolation
The two most common sources of noise are power supplies and poor grounding on survey vessels. Edgetech’s proprietary signal conditioning and isolation board is shipped with every topside to protect against the noise fluctuations on the ground line of the subsea electronics. This board isolates the sensitive subsea electronics from potentially noisy grounds provided by the trigger and serial port inputs. -
Page 51: Installation
OMPONENTS 5.2 Sonar Head Installation Installing the 6205s System on the survey vessel is the customer’s responsibility, but it is important to keep the following considerations in mind. 1. The sonar head can be mounted on the side of a vessel, but it is recommended to secure the 6205s to the boat's bow. -
Page 52: Over-The-Bow Deployment
5-35 5.2.1 Over-the-Bow Deployment Edgetech’s recommended option is to mount the 6205s sonar head to the bow of the survey vessel. An example of an over-the-bow deployment is depicted in the photographs in 5-1. If help is needed IGURE with this type of installation, do not hesitate to contact... -
Page 53: Over-The-Side Deployment
5-36 5.2.2 Over-the-Side Deployment An alternative to the bow mount is to secure the 6205s sonar head over the survey vessel's side via a pole. An example of an over-the-side deployment is illustrated in the images in 5-2. If help is needed... -
Page 54: Positioning The Topside Interface Box
R 19-in Rack Mount version should be located and set up in a dry, sheltered area on the survey vessel that is protected from weather and water spray. The 6205s-P portable design is a bit more versatile since it is watertight when closed and can be set up anywhere on the survey vessel. -
Page 55: Field Exchangeable Frequency Operations
3/16-inch Allen Wrench Tube of Thread Lock • 1. Place the 6205s on a stable and level platform, such as a workbench or boat deck. Figure 5-4: Unit on Stable Platform 2. Removing the [8] cap screws using a ” Allen key on the right and left sides of the housing. -
Page 56: Figure 5-5: Removing The Cap Screws
5-39 Figure 5-5: Removing the Cap Screws 3. Flip the 6205s over so the bottom of the unit is upright to expose the remaining brackets. Figure 5-6: Top Housing and Deck Cable Removed 4. Remove the [4] screws in the widest, center bracket. -
Page 57: Figure 5-7: Remove The Center Bracket
You DO NOT have the remove the front shell. 6. Slide the shell off the housing. Figure 5-8: Remove the Portion of the Shell ‘EdgeTech’ and the Logo 7. Unplug the bathymetry and side scan sonar cables on the transducer you’re replacing. -
Page 58: Figure 5-9: The Disconnected Bathymetry And Side Scan Sonar Cables
5-41 Figure 5-9: The Disconnected Bathymetry and Side Scan Sonar Cables 8. Remove all six ” – 20 x 1.5” cap screws using the same ” Allen key. Figure 5-10: Remove the [6] Cap Screws... -
Page 59: Figure 5-11: All Cap Screws Removed
Take care not to damage the side scan and bathymetry cables out of the frame. Figure 5-12: Remove the Existing Transducer 10. To mount the new transducer, insert the side scan and bathymetry cables into the housing and through the frame. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 60: Figure 5-13: Mount The New Transducer
11. Place the transducer onto the frame and align the screw holes. To keep the transducer in place, insert two screws on the top and bottom of opposing corners. NOTE EdgeTech suggests using a reputable thread lock product to secure all bolts on the arrays and housing. Contact USTOMER ERVICE to learn what product EdgeTech currently uses. -
Page 61: Connect To Sonar
(Sonar.exe) to check the status of the supporting data if a device is not connected properly. If this is the case, Discover Bathymetric will display its diagnostic window and show which serial port is causing the error. It is not recommended to connect to the sonar without EdgeTech support, except for the Instructions Below. -
Page 62: Connecting With The 6205S-P
6-45 2. Connect to the 6205s Sonar using an IP address of 192.9.0.101 and the User name, Administrator. 3. When prompted for a password, input admin. Once logged on, the following window will appear on the desktop or minimized: Figure 6-2: Sonar 192.9.0.101 Remote Desktop Connection Window This window represents the main firmware running on the embedded CPU located in the bottle of the sonar head. -
Page 63: Figure 6-3: Sonar 192.9.0.101 Remote Desktop Connection Window
Sound velocity is extremely important for the system to operate correctly. If sound velocity measurements are not present (i.e., the port is reporting no data), use SECTION 7: TROUBLESHOOTING to go through the troubleshooting process. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 64: Figure 6-4: Serial Port Information Window
6-47 Figure 6-4: Serial Port Information Window 4. Click on Menu > File > Show Status. The System Status window will appear. 5. At the bottom of the window, click the Config bullet, then the dropdown menu item named Config Item. -
Page 65: Figure 6-5: Sensor Usage Percentage Check
7. If they are not, increase the baud rates of the sensors until these percentages drop. Make sure to change the baud rate accordingly in Sonar. 8. When satisfied with the incoming data, press OK in the System Status window and close the Sonar - 192.9.0.101 - Remote Desktop Connection window. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 66: Figure 6-6: System Status Window
Figure 6-6: System Status Window RTK Tide measurements can be incorporated into the 6205s System. Most third-party software packages can set up a device driver to acquire these data. A 1PPS sync is needed in this case, as these measurements... -
Page 67: Maintenance
7-50 M A INTEN ANCE The 6205s Sonar Head is not designed for long-term deployments, and it is not recommended to keep the system in water for more than two weeks at a time, especially in warm, salty waters. After each mission, the system should be rinsed thoroughly with fresh water, making sure to rinse the SVS, which is mounted onto the connector endcap, and connectors at the back using the carry slots located on the sonar housing. -
Page 68: Troubleshooting
8-51 T R OU B LES HO OTI NG 8.1 Troubleshooting the SV Sensor In some cases, the sound velocity sensor may not boot properly. If this occurs, Discover Bathymetric will show a Port 4: Error on its Diagnostic Window, indicating that no sound velocity measurements are being reported to the sonar head. -
Page 69: Figure 8-3: Closing The Sonar.exe Application
8-3, red arrow. IGURE Figure 8-3: Closing the Sonar.exe Application 9. Double-click the “EdgeTech Shortcut” and navigate to Utilities/Teraterm folder. Launch ttermpro.exe. 10. Select Serial, choose COM4 from the dropdown menu, as shown in 8-4, and click OK. IGURE Figure 8-4: Connecting to COM4 using TeraTerm... -
Page 70: Figure 8-5: Com4 Port Settings
8-53 11. Now, choose Setup from the top menu and then Serial port. 12. Configure the serial port options, as shown in 8-5, and click OK. IGURE Figure 8-5: COM4 Port Settings 13. Input the following commands: Press <Enter> to start communications to SV sensor. Type in “SET STARTUP NOHEADER”... -
Page 71: Configuring Auxiliary Sensors For Redundant Information
ERVICE 8.2 Configuring Auxiliary Sensors for Redundant Information Auxiliary sensors can input redundant auxiliary information into the 6205s that can cause a significant data alignment problem as the sequential sonar data packets will be inconsistently stuffed from multiple sources. This manual defines redundant auxiliary information as multiple sources of the same class of auxiliary information (e.g., roll, pitch, heading). -
Page 72: Figure 8-7: Configuration Menu
8-55 1. Open the Auxiliary Sensors control dialog box (Configuration menu > Auxiliary Sensors), as shown 8-8. IGURE IGURE Figure 8-7: Configuration Menu Figure 8-8: Auxiliary Sensors... -
Page 73: Two Sensors Output Same Information With Different Messages
Some motion sensors cannot turn off specific fields within their output strings. For example, a sensor that outputs an OCTANS message delivers roll, pitch, heading, and heave to the 6205s Sonar Head with no way for the particular sensor to turn off any of these specific fields. If a sensor like this is paired with another sensor that outputs the same information but in a different message format (i.e., NMEA HDT), then there... -
Page 74: Figure 8-10: Sonarser-All.ini
Heading and heave are currently the only fields that can be enabled/disabled in the SonarSerial.ini file. To disable heave: ParserParameters=DISABLEHEAVE 5. Save the file and exit. 6. Power cycle the 6205s Sonar Head, allowing at least 15 seconds between switching off and on. -
Page 75: Configuring Com Ports
To configure the COM ports for one sensor: 1. Turn on Topside PC and connect the 6205s via the deck cable to the 6205s Topside Interface Box. 2. Turn on the 6205s Sonar Head and run the Remote Desktop Application, named Sonar. The main... -
Page 76: Figure 8-12: Finding The Sonarserial.ini File
8-59 Figure 8-12: Finding the SonarSerial.ini File Figure 8-13: SonarSerial.ini File 6. Under [Serial2] and [Serial3] set Create = 0, select File > Save, and close the file. -
Page 77: Figure 8-14: Diagnostic Window, Reporting Ports Inactive Error
7. Close the SonarSerial.ini file and reboot the Sonar Firmware by double-clicking on the Sonar icon 8-15, in the main Sonar Remote Desktop Screen, as shown in designated by the green FIGURE arrow. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 78: Figure 8-15: Rebooting Sonar From The Main Screen
8-61 Figure 8-15: Rebooting Sonar from the Main Screen 8. Plug the device into COM 1. 9. Click Misc. at the top of the Sonar screen, as shown in 8-16, then Serial Port Information. FIGURE 10. Check COM1 and set the correct baud rate for that device using the dropdown menu, shown with a blue arrow in 8-16. -
Page 79: Figure 8-16: Checking Serial Port Information
8-62 Figure 8-16: Checking Serial Port Information 11. Click File > Show Status in the sonar window, as shown circled in red in 8-17. FIGURE Figure 8-17: Checking Sensor Status 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 80: Figure 8-18: Closing The System Status Window
8-63 Figure 8-18: Closing the System Status Window 12. On the right-hand side of the window, click on the Config bullet under Update Button (green arrow in 8-18) and then on the dropdown menu named Config Item (green arrow IGURE IGURE 8-18). -
Page 81: Two Sensors
COM1 and COM 2 to parse the necessary sensor information. Therefore, Discover will not throw up any errors if a sensor is not connected to COM3. Figure 8-19: SonarSerial.ini File 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... - Page 82 8-65 3. Reboot the Sonar Firmware by double-clicking on the Sonar icon in the main Sonar Remote Desktop Screen, as shown in 8-15, designated by green arrow. FIGURE 4. Now, plug in the devices into COM 1 and COM 2. Which device is connected to which COM port does not matter, as long as their respective ports and baud rates are set in Sonar.
-
Page 83: Three Sensors
The following steps should be carried out to configure the COM ports for the three sensors. 1. Follow steps (1.) through (6.) as stated previously under appendix sub-section ENSOR 2. Make sure Create=1 under each [Serial#], as shown in 8-21. FIGURE 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 84: Figure 8-21: All Sensors Set
8-67 Figure 8-21: All Sensors Set 3. Select File > Save and close the file. CAUTION! Do not touch anything else, or the system’s configuration files could be seriously compromised, and functionality may suffer. 4. Close the SonarSerial.ini file and reboot the Sonar Firmware by double-clicking on the Sonar icon in the main Sonar Remote Desktop Screen, as shown in 8-15, designated by the green... - Page 85 This is because the remote desktop application uses a large amount of the link capacity to stay open. So it is always a good idea to close the remote desktop application when finished with the configurations. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E...
-
Page 86: Figure 8-22: Checking All Com Ports
8-69 Figure 8-22: Checking all COM Ports... -
Page 87: Udp Connections
Note that 1PPS functionality must be utilized when operating with attitude / NAV being transferred with UDP messages. All messages detailed in Section 3.1 can also be sent to the 6205s over the Ethernet connection via UDP. The below example shows the same configuration detailed in 8-23 but with UDP functionality. -
Page 88: Applanix Posmv Configuration
1. Set the ethernet real-time output data to groups 3,7,10, and 102. The output rate of the POSMV data should be set to 50Hz. 2. The POSMV must also be set to Falling (Negative) Edge or Active Low for the 1PPS as the 6205s defaults to sync on the falling edge. -
Page 89: Figure 8-24: Posmv Udp Configuration
Locate the [Main] section and take note of the .ini file being called out. As an example: the below file specifies the system is a 520kHz / 1600kHz Side Scan with 520kHz Bathymetry and, as such, utilizes the sonar_520B_1610.ini. 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 90: Figure 8-25: Sonarconfig.ini Example
Sonar.exe shortcut on the embedded CPU desktop. Once the configuration of both the 6205s and the POSMV is completed, the Sonar Serial Port Viewer can be utilized to confirm data is being accepted correctly. To access this, select the Misc. tab in the Sonar.exe GUI (as shown in 8-16), then Serial Port Information. -
Page 91: Sbg Ekinox/Apogee Configuration
ERVICE 8.3.6 SBG Ekinox/Apogee Configuration The 6205s is compatible with the Ekinox / Apogee systems from SBG Systems. Follow the below steps to configure the 6205s and the SBG for communication over the Ethernet interface via UDP. Required: All selected outputs at the same rate, recommended 25Hz or maximum 50Hz •... -
Page 92: Figure 8-28: Udp Broadcast Settings Example
8-75 Figure 8-28: UDP broadcast settings example Figure 8-29: Eth1 data output... -
Page 93: Figure 8-30: Data Packets Required, But At 25Hz Or 50Hz, Not 1Hz
8-76 Figure 8-30: Data packets required, but at 25Hz or 50Hz, not 1Hz 6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E... -
Page 94: Figure 8-31: 1Pps Settings Example, Falling Edge And 1Msec Duration
8-77 Figure 8-31: 1PPS settings example, Falling Edge and 1msec duration... -
Page 95: System Restore
8-78 8.4 SYSTEM RESTORE This section outlines the procedures for backing up and restoring the optional EdgeTech supplied Laptop crash. If the user experiences any issues, contact immediately to help restore USTOMER ERVICE the system and get the survey back up and running as soon as possible. -
Page 96: Compatible Software
Dual-Frequency Side Scan Sonar data. Data is presented in a color waterfall display and stored in the binary EdgeTech JSF file format on the hard disk of the Topside Processor. The JSF file format has been in use for 10+ years and has new public extensions to support the additional Bathymetry data messages. Refer to... -
Page 97: Qinsy
Beamworx’s suite constitutes a multipurpose suite of software products for multi-beam operations. From online data acquisition (NavAq) to offline post-processing (AutoClean) and also automated Patch Test (AutoPatch), the suite is fast and friendly. For more information on Beamworx and, visit: http://www.beamworx.com 6205s BATHYMETRIC AND SIDE SCAN SONAR...
