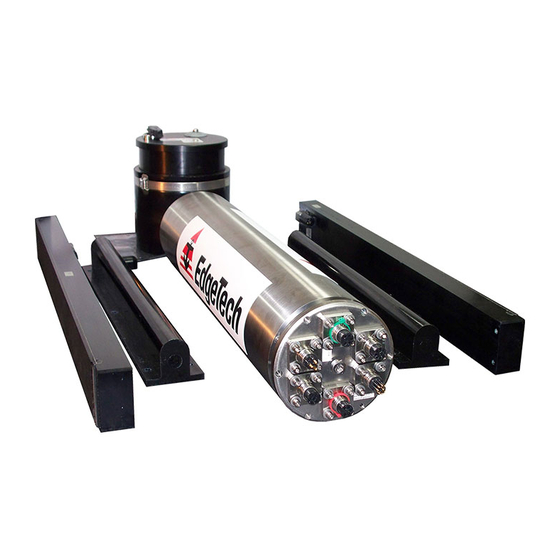

Full spectrum system tri-freq ss with 4xdw106 sb 2000m aluminum bottle
Hide thumbs
Table of Contents

Advertisement

Quick Links

FULL SPECTRUM SYSTEM
2205 T
G
ECHNICAL
UIDE
SYSTEM TECHNICAL & USER'S GUIDE
T
-F
SS
4
DW106 SB
RI
REQ
WITH
X
2000
ALUMINUM BOTTLE
M
D
S
D
ELIVERY
PECIFIC
OCUMENT
Document No: 0022175 REV A 05 November 2019
Product ID: 2205
4 Little Brook Road
West Wareham, MA 02576 - USA
Tel: 508-291-0057 / Fax: 508-291-2491
info@EdgeTech.com
Email:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edgetech 2205

Summary of Contents for Edgetech 2205

  • Page 1 SYSTEM TECHNICAL & USER’S GUIDE DW106 SB WITH 2000 ALUMINUM BOTTLE ELIVERY PECIFIC OCUMENT Document No: 0022175 REV A 05 November 2019 Product ID: 2205 4 Little Brook Road West Wareham, MA 02576 - USA Tel: 508-291-0057 / Fax: 508-291-2491 info@EdgeTech.com Email:...

  • Page 2: Table Of Contents

    2205 System Technical and User’s Guide TABLE OF CONTENTS ERRATA ............................4 OVERVIEW ............................ 5 POWER REQUIREMENTS ......................5 SYSTEM BLOCK DIAGRAM ...................... 6 CONNECTOR/INTERNAL CABLE CONFIGURATION ............7 – P J1 C , 10/100 E .............7 ONNECTOR OWER RIGGER THERNET –...
  • Page 3 2205 System Technical and User’s Guide SIDE SCAN & SUB-BOTTOM PULSE CHARACTERISTICS ..........19 TRANSDUCER CHARACTERISTICS ..................23 10.1 .................23 RANSDUCER APACITANCE 10.2 ..................23 OTTOM ECEIVER APACITANCE 10.3 ..................24 RANSDUCER MPEDANCE MECHANICAL CONFIGURATION ..................24 11.1 ..........................24 LECTRONICS 11.2 .....................24...

  • Page 4: Errata

    Overheating when conducting noise analysis or Rub Tests. CAUTION The 2205 utilizes a Push – Pull amplifier design for Side Scan transmission. You can NOT adjust the transmit level in the same manner as a linear amp (utilized on the 2200 series). DO NOT attempt to adjust the transmit power with JStar/Discover/Third Party Software to anything other than 100% (ON) or 0% (OFF).

  • Page 5: Overview

    4.3A at 36Vdc. The average worst case operational current of the system is 3.05A at 36Vdc. Cable losses between the user’s power source and the EdgeTech 2205 electronics must be accounted for to ensure that 36-60Vdc is present at the J1 bulkhead during the peak demands at initial turn-on and when transmitting.

  • Page 6: System Block Diagram

    The typical 2300 tri-frequency pressure housing assembly is depicted in drawing 0021987. While the bottle is built for the 2300 system, the interior electronics are standard 2205. Figure 4-1 depicts the internal system components found in the pressure housing. There are no user serviceable components within the pressure housing.

  • Page 7: Connector/Internal Cable Configuration

    2205 System Technical and User’s Guide 5. Connector/Internal Cable Configuration A typical electronics block diagram is provided in drawing 0021984 where it identifies the internal cabling and how it relates to the external connectors. The end cap configuration is depicted in Figure 5-1 and in drawing 0021985.

  • Page 8: J2 Connector - Sound Velocity Device (Optional)

    2205 System Technical and User’s Guide Connector J1 10/100 Base-T Default Wiring (DBH13M) Signal +Vdc for 2205 Elex 0Vdc for 2205 Elex Ethernet (Brown) Trigger 0/A Ethernet (White/Brown) Trigger 0/A GND Ethernet (Blue) Trigger 2/C Ethernet (White/Blue) Trigger 2/C GND...

  • Page 9: J3 & J11 Connectors - Bathymetric Receivers

    SONAR interface commands. Alternatively, without the Digital I/O interface, the 2205 can be used to generate Triggers A & C to pass to the 2300 multiplexer. These triggers are not synchronized to the FSK trigger and are hosted with the 2205 as the Trigger Master.

  • Page 10: Solid State Drive

    The triggers can sink or source a TTL/CMOS compatible signal. It is recommended that the user consult EdgeTech Customer Service if a different configuration is required so that this value may be updated and compared against the hardware configuration to insure there are no incompatibilities.

  • Page 11: Sonar Ini Setting

    2205 System Technical and User’s Guide accuracy unless a Network Time Server is utilized. Configuration of the 1pps sync is covered under the Trigger subsection 5.7. 6.2 Sonar.ini Setting The following is a typical SONAR configuration file. Different Tri-Frequency combinations will reference different pulse folders or calibration files, but their naming format will be consistent with the entries shown below.
  • Page 12 2205 System Technical and User’s Guide ;====================================================================== [SUB_SSL] PulseDirectory=..\2300_DDPA_230Q\ TriggerInputLine=0 ADCs= 4 5 DACs= 5 VGADacs=2 AllowDifferentPortAndStarboardMatchFilters=0 ;====================================================================== ;Options for SS Mid (540Khz) SIM Low ;====================================================================== [SUB_SSH] PulseDirectory=..\2300_540Q\ TriggerInputLine=0 ADCs= 0 1 DACs= 1 2 VGADacs=0 ; VGA Gain remap AllowDifferentPortAndStarboardMatchFilters=1 ;======================================================================...

  • Page 13: Sonarserial.ini Setting

    Factory software configuration and is based on the software and hardware interface requirements. EdgeTech uses the Machine ID that relates to the native Network Port on the CPU carrier board. If a USB based network port is introduced by the user, its Machine ID will not correlate to the Factory derived password.
  • Page 14 CPU/Network Port, the SONAR system will continue to function when used with any of EdgeTech’s software products but features, such as external control by a party software package, will no longer function. The same is true if a CPU is replaced, with no changes to the SATADOM/USB boot device, as the password-based MAC address will not match the new CPU/Network Port.

  • Page 15: Remote Desktop File Operations

    2205 System Technical and User’s Guide Figure 6-2. SONAR Status Window Access Under the Config Item “Summary” (figure 6-3), the user should scroll through the Status window to confirm that all required Options are Installed/Activated. “Public Net” is required for any 3 Party control of SONAR.

  • Page 16: Edgetech Folder Reset

    Folders. Expand DATA (F:) and you should see a folder called EdgeTech Backup. Enter this folder and copy the EdgeTech Folder. 9. Return to Folders select SONAR (D:), delete the current EdgeTech folder. Right click on screen and paste the newly copied EdgeTech folder from DATA (F:).
  • Page 17 2205 System Technical and User’s Guide 8) Right click on Default FTP Site and select Properties 9) Go to home directory tab and change the local path to SONAR (D:) click ok, click apply and then ok. 10) Right click on Default FTP Site and select Start.

  • Page 18: Topside Hardware/Software

    A 2300 Starmux IV Power and Telemetry rackmount hardware suite is provided as the communications and power interface to the 2300 Subsea Multiplexer and 2205 SONAR system. A network interface is provided to go between the Starmux IV and a Topside PC to control the data acquisition and display the resulting data.

  • Page 19: Side Scan & Sub-Bottom Pulse Characteristics

    Bathymetric systems share the same pulses. A ‘Q’ follows the SS frequency identifier to indicate that the pulse has been quantized to a series of digital pulses to improve the 2205 amplifier’s push-pull amplifier drive. A simultaneous Side Scan and Sub-Bottom system generates acoustic transmissions such that all pings end at the same time …...
  • Page 20 2205 System Technical and User’s Guide Ping Max Ping Ping Name Freq Rate Range (kHz) (ms) (kHz) (Hz) 2300_DDPA_SS125Q_14BW_2MS 50635 15.0 48.5 2300_DDPA_SS125Q_12BW_3MS 50637 10.0 72.8 2300_DDPA_SS125Q_12BW_4MS 50636 97.0 2300_DDPA_SS125Q_10BW_6MS 50639 145.5 2300_DDPA_SS125Q_10BW_10MS 50638 242.5 2300_DDPA_SS125Q_8BW_16MS 50640 1.88 388.0 Table 9-2. 120kHz (SSL) Pulse Characteristics...
  • Page 21 2205 System Technical and User’s Guide Ping Max Ping Ping Name Freq Rate Range (kHz) (ms) (kHz) (Hz) 2300_SS410Q_60BW_0_40MS 50642 75.0 2300_SS410Q_60BW_0_60MS 50641 50.0 14.6 2300_SS410Q_50BW_1_40MS 50643 21.43 34.0 2300_SS410Q_40BW_2_20MS 50644 13.64 53.4 2300_SS410Q__30BW__3_2MS 50645 9.38 77.6 2300_SS410Q_25BW_4_90MS 50646 6.12 118.8...
  • Page 22 2205 System Technical and User’s Guide Ping Max Ping Ping Name Freq Rate Range (kHz) (ms) (kHz) (Hz) 2300_SS850_0_75BW_0_40MS 50942 75.0 2300_SS850_75BW_0_80MS 50943 37.5 19.4 2300_SS850_75BW_1_60MS 50944 18.75 38.8 2300_SS850_65BW_2_00MS 50945 15.0 48.5 2300_SS850_65BW_2_40MS 50946 12.5 58.2 2300_SS850_55BW_2_8MS 50947 10.71 67.9...

  • Page 23: Transducer Characteristics

    2205 System Technical and User’s Guide Transducer Characteristics 10.1 Side Scan Transducer Capacitance Capacitance measurements were made using a LCR meter at 1kHz (table 10-1). Similar measurements can be made with a capacitance measurement capable DVM. Note that these measurements should be used as a guide and not an absolute as to a transducer’s status.

  • Page 24: Side Scan Transducer Impedance

    2205 System Technical and User’s Guide 10.3 Side Scan Transducer Impedance The measurement of a transducer’s impedance is affected by several external factors such as radiation loading (measurement performed in air or water), how the transducer is positioned (relative to other objects) and type of measurement device used.

  • Page 25: Sea Ground

    It is not possible to calculate the actual proper spacing without knowledge of the installation platform or user requirements. Spacing between the side scan arrays is left to customer discretion but should be kept to a minimum. EdgeTech can provide guidance as needed.

  • Page 26: Periodic Maintenance

    Doing so has the potential to cause the boot to tear and/or damage the transducer. Periodic Maintenance Maintenance on the 2205 Series Systems should be performed after each deployment or following the vehicle’s recovery cycle. 12.1 Inspecting and Cleaning the Bottle and Transducers after Use After retrieving the vehicle from the water, use a hose to wash the bottle and transducers with clean, fresh water.

  • Page 27: Attached Documents

    0009855 ASSY SUB CABLE 2205 MCBH8F SIM2 TRI-FREQUENCY 0019609 SIDESCAN AL ASSY SUB CABLE 2205 AUV SBP RX 03 POS MALE TO J562 AL 0012112 CABLE EXTENSION PVDF 2205 SB RX MCIL3F MCIL3M 2950MM 0015756 DOC DRAWING ICD 2205 230/540/850 4xSB ELECTRONICS...
  • Page 28 REVISIONS REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE DESCRIPTION DESCRIPTION DATE DATE APPROVED APPROVED ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION.
  • Page 29 UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION.
  • Page 30 REVISIONS REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE DESCRIPTION DESCRIPTION DATE DATE APPROVED APPROVED ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION.
  • Page 31 REVISIONS REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND DESCRIPTION DESCRIPTION DATE DATE APPROVED APPROVED SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION. COPYRIGHT @ 2017 EDGETECH INC.
  • Page 32 UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION. COPYRIGHT @ 2017 EDGETECH INC.
  • Page 33 REVISIONS REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE DESCRIPTION DESCRIPTION DATE DATE APPROVED APPROVED ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION.
  • Page 34 DESCRIPTION DATE APPROVED OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE Initial release 05/28/19 BASIS F OR THE MANUFACTURE OR SALE OF APPARAT US WITHOUT PERMISSION. COPYRIGHT @ 2011 EDGETECH INC.
  • Page 35 REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE DESCRIPTION DATE APPROVED BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION. COPYRIGHT @ 2015 EDGETECH INC.
  • Page 36 REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE DESCRIPTION DATE APPROVED BASIS F OR THE MANUFACTURE OR SALE OF APPARAT US WITHOUT PERMISSION. COPYRIGHT @ 2010 EDGETECH INC.
  • Page 37 DRAWN: DRAWN: 05/24/17 05/24/17 Email: info@EdgeTech.com CHECKED: CHECKED: CHECKED: ASSY SUB CABLE 2205 MCBH8F SIM2 ASSY SUB CABLE 2205 MCBH8F SIM2 1. Label cables with proper Frequency notation TRI-FREQUENCY SIDESCAN AL TRI-FREQUENCY SIDESCAN AL ENG: ENG: ENG: 2. Cable should be 8”...
  • Page 38 REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE DESCRIPTION DATE APPROVED BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT PERMISSION. COPYRIGHT @ 2012 EDGETECH INC.
  • Page 39 REVISIONS UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE DESCRIPTION DATE APPROVED BASIS F OR THE MANUFACTURE OR SALE OF APPARAT US WITHOUT PERMISSION. COPYRIGHT @ 2011 EDGETECH INC.
  • Page 40 REVISIONS THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDGEONE LLC DBA EDGETECH (OR ORE) AND ARE ISSUED IN STRICT CONFIDENCE. THEY SHALL NOT BE REPRODUCED, COPIED OR USED ECR# DESCRIPTION DATE APPROVED IN ANY WAY WITHOUT THE EXPRESS WRITTEN PERMISSION OF EDGEONE LLC.
  • Page 41 REVISIONS THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDGEONE LLC DBA EDGETECH (OR ORE) AND ARE ISSUED IN STRICT CONFIDENCE. THEY SHALL NOT BE REPRODUCED, COPIED OR USED ECR# DESCRIPTION DATE APPROVED IN ANY WAY WITHOUT THE EXPRESS WRITTEN PERMISSION OF EDGEONE LLC.
  • Page 42 REVISIONS THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDGEONE LLC DBA EDGETECH (OR ORE) AND ARE ISSUED IN STRICT CONFIDENCE. THEY SHALL NOT BE REPRODUCED, COPIED OR USED DESCRIPTION ECR# DATE APPROVED IN ANY WAY WITHOUT THE EXPRESS WRITTEN PERMISSION OF EDGEONE LLC.
  • Page 43 REVISIONS THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDGEONE LLC DBA EDGETECH (OR ORE) AND ARE ISSUED IN STRICT CONFIDENCE. THEY SHALL NOT BE REPRODUCED, COPIED OR USED ECR# DESCRIPTION DATE APPROVED IN ANY WAY WITHOUT THE EXPRESS WRITTEN PERMISSION OF EDGEONE LLC.
