Connecting Power

Extron recommends the Extron PI 140 power injector (see figure 3). Your power injector
may look different.
Use an Ethernet cable to connect the network input of the power injector to a
1.
network switch or router. This cable carries network information from the switch or
router to the power supply input.
Use an Ethernet cable to connect the LAN/PoE+ port of the TLSI 201 to the power
2.
output of the 802.3at, class 4 compliant PoE+ power injector. This cable carries the
network information and power from the power supply to the TLSI 201.
Connect the IEC power cord to a convenient 100 VAC to 240 VAC, 50-60 Hz power
3.
source.
100-240V
0.4A MAX
To network switch

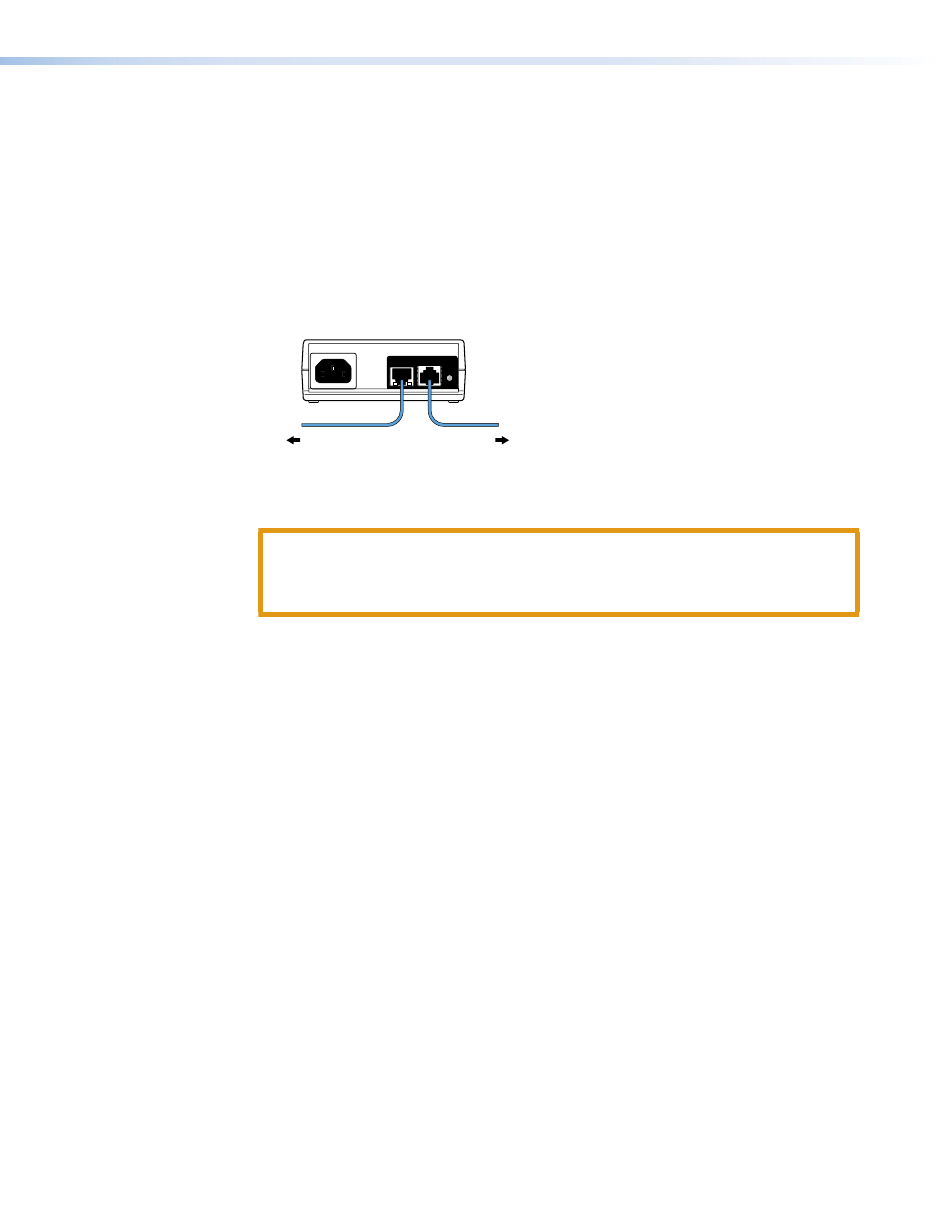

Figure 3.
Alternatively, use an Ethernet cable to connect the LAN/PoE+ port of the TLSI 201 to a
PoE+ switch.
CAUTION:
used batteries according to the instructions.
ATTENTION
Débarrassez-vous des piles utilisées selon le mode d'emploi.
~
50-60Hz
XTP XTP PWR
PWR
To TLSI 101
Connecting the Power Injector
Risk of Explosion if the battery is replaced by an incorrect type. Dispose of
:
Risque d'explosion. Ne pas remplacer la pile par le mauvais type de pile.
