- Page 1 User Guide TouchLink ® TLSI 201 Interactive Wayfinding Interface 68-3514-02 Rev. A 06 20...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING This symbol, , when used on the product, is intended to avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within all’interno del contenitore del prodotto che può...
- Page 3 All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks®, registered service marks(SM), and trademarks(TM) are the property of RGB Systems, Inc. or Terms of Use www.extron.com Extron Electronics (see the current list of trademarks on the page at Registered Trademarks ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide In this user guide, the following are used: Notifications WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: Risk of property damage.
-
Page 7: Table Of Contents
Contents Introduction ............1 Configuration Software .......16 About the TLSI 201 ..........1 Configuration Software ........16 Features ...............1 Downloading Software ........16 Application Diagram ..........2 Using the Software .........17 TLSI 201 Web Page ...........18 Updating the Firmware ........19 Installation Overview ........3 Downloading Firmware ........19 Updating Firmware Using the Touchpanel Web Page .............20 Panel Features... - Page 8 TLSI 201 • Contents viii...
-
Page 9: Introduction
Introduction This guide describes the function, installation, and operation of the TLSI 201. Unless otherwise stated, the terms “interface” and “TouchLink Pro interface” also refer to this model. This section provides an overview of the TLSI 201: About the TLSI 201 •... -
Page 10: Application Diagram
Application Diagram Interactive Display Extron TLSI 201 TouchLink Scheduling Interface for TLS Panels TCP/IP Network Extron OCS 100W Occupancy January 10:33am Sensor January 10:33am LAPTOP DISPLAY MUTE SCREEN SCREEN DOWN :3 3a , 10 y 10 10:33am January LAPTOP MUTE Extron DISPLAY SCREEN... -
Page 11: Installation Overview
Installation Overview Before starting, download and install the latest version of the following software. Room Agent — For customizing the TLSI 201 and TLS scheduling panels to … display specific meeting information obtained from multiple calendar services. Configuration Software on page 16. Obtain the following network information from your network administrator: DHCP setting (On or Off). - Page 12 Set up the interface for Network Communication: Connect the PC that you will use for setup and the TLSI 201 to the same … Ethernet subnetwork. Use the Setup Menu (see page 10) to set the DHCP status and, if necessary, …...
-
Page 13: Panel Features
Panel Features This section describes: TLSI 201 Rear Panel Features and Connections • TLSI 201 Front Panel Features • TLSI 201 Rear Panel Features and Connections LAN/PoE + INPUT OUTPUT DEVICE A A A B B B C C C D D D Figure 2. -
Page 14: Connecting Power
Connecting Power Extron recommends the Extron PI 140 power injector (see figure 3). Your power injector may look different. Use an Ethernet cable to connect the network input of the power injector to a network switch or router. This cable carries network information from the switch or router to the power supply input. - Page 15 ATTENTION: The TLSI 201 is intended for connection to a Power over Ethernet circuit for intra- • building use only and is considered to be part of a Network Environment 0 per IEC TR62101. Le TLSI 201 est conçu pour une connexion à un circuit PoE pour une utilisation •...
-
Page 16: Securing The Hdmi Connector
Securing the HDMI Connector Use a HDMI cable to connect the HDMI output to the female HDMI ports on the front panel of the interface (figure , on page 5). Use the provided LockIt HDMI lacing bracket to secure the HDMI connector: Plug the HDMI cable into the panel connection (see figure 4, Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it (... -
Page 17: Tlsi 201 Front Panel Features

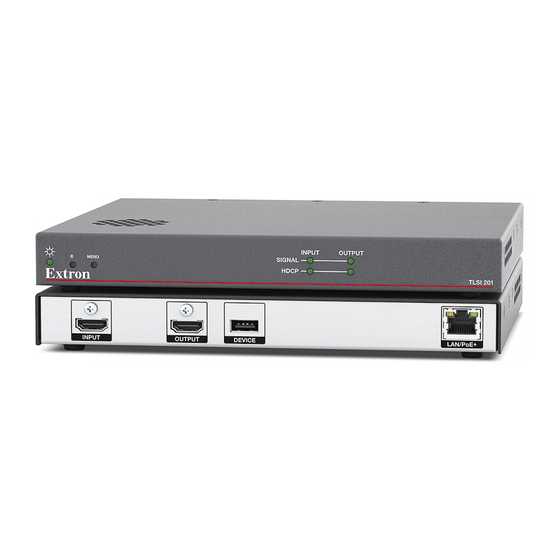

TLSI 201 Front Panel Features INPUT OUTPUT SIGNAL MENU HDCP TLSI 201 Figure 5. TLSI 201 Plus Front Panel Power LED — Indicates the power status and the reset status of the unit. Reset button (recessed) — Allows the unit to be reset in any of three different modes. -
Page 18: On-Screen Menus
On-screen Menus On-screen menus allow initial configuration of the TLSI 201. Setup Menu • Calibration Screen • Setup Menu To access the setup menus, press the recessed front-panel Menu button (see figure 5, , on page 9). The menu opens at the Status screen. There are five different screens: Status Audio •... -
Page 19: Network
Network Verify with your network administrator whether the IP address for the TLSI is assigned by Dynamic Host Configuration Protocol (DHCP) or set manually. If they are set manually, you need to obtain an IP Address, Subnet Mask, Gateway Address, and Domain Name Server (DNS) IP address from the network administrator. - Page 20 If DHCP is disabled, set the unit IP address, subnet mask, gateway address, and DNS server address. Press the button for the address to be edited. A screen opens, showing the address and a numerical keypad. IP Address Clear 1 9 2 1 6 8 2 5 4 2 5 1...
-
Page 21: Display
Display The Display screen is used to set the Sleep Timer. Status Network Audio Advanced Display Exit Sleep Timer min. Figure 11. Output Screen Sleep timer The Sleep Timer determines how long the panel is inactive before it enters sleep mode, when the screen goes dark to save power. -
Page 22: Advanced
Advanced The Advanced window allows the user to set a PIN for access to the setup menu and to adjust the mouse pointer size and speed. Status Network Display Audio Advanced Exit Menu Pin Mouse Pointer Size Medium Large Change Speed Figure 13. -
Page 23: Calibration Screen
Calibration Screen Touch crosshair to calibrate 1920x1080 Figure 15. Touch Calibration Screen Press and hold down the recessed front-panel Menu button (see figure 5, , on page 9) for at least 3 seconds. Release the button. The calibration screen opens to show cross-hairs in the top left corner of the screen (see figure 15). -
Page 24: Configuration Software
Configuration Software This section of the user guide provides information about: Configuration Software • Downloading Software • TLSI 201 Web Page • Updating the Firmware • Configuration Software The TLSI 201 uses Room Agent to design and configure the graphical user interface. Downloading Software Room Agent can be downloaded from www.extron.com. -
Page 25: Using The Software
1 1 1 2 2 2 3 3 3 3 3 3 4 4 4 Figure 17. Downloading Software You may see the product immediately, for example Global Configurator Plus and Professional (see figure 17, ). You may need to use the left and right arrows ( ) to scroll through all the highlighted products. -
Page 26: Tlsi 201 Web Page
TLSI 201 Web Page To access the TLSI 201 default web page, enter the IP address of the unit into the web browser of a PC connected to the same subnet. A dialog opens asking for your user name and password. NOTES: The factory configured passwords for all accounts on this device have been set •... -
Page 27: Updating The Firmware
Updating the Firmware Normally the Room Agent software automatically pushes firmware updates to the TLSI 201. If it becomes necessary to update firmware yourself, follow these instructions. Downloading Firmware On the Extron website, click Download (see figure 19, Click Firmware ( Figure 19. -
Page 28: Updating Firmware Using The Touchpanel Web Page
Go to the Downloads folder and click on the file to install the firmware on the PC. By default, it is stored at C:\\Program Files (x86)\Extron\Firmware\<product name>\<firmware version>. Upload the firmware to the TLSI 201, using the TLSI 201 web page. Updating Firmware Using the Touchpanel Web Page If you have not already done so, download the firmware file to a computer on the same network as the touchpanel (see... -
Page 29: Mounting
Mounting This section outlines the various options for mounting the TLSI 101. Wall Mounting • Rack Mounting • Tabletop Placement • Under-desk Mounting • Wall Mounting The TLSI 201 can be discretely mounted to the wall behind a flat panel display. See the TLSI 201 product page at www.extron.com for suitable mouting kits and follow the... -
Page 30: Tabletop Placement
Tabletop Placement Attach the four provided rubber feet to the bottom of the unit and place the TLSI 201 in any convenient location. Under-desk Mounting Mount the unit under a desk or podium, using an Extron under-desk mounting kit (not provided). -
Page 31: Reference Material
Reference Material This section describes: Network Port Requirements and Licensed Third-Party Software • Reset Modes • Secure Sockets Layer (SSL) Certificates • IEEE 802.1X Certificates • Network Port Requirements and Licensed Third-Party Software For information about network port requirements and licensed third-party software for the touchpanels described in this guide, please refer to the Pro Series Control Product Network Ports and Licenses Guide, which is available at www.extron.com. -
Page 32: Use Factory Firmware
Use Factory Firmware Activation To start the Use Factory Firmware reset mode and replace firmware: On the TLSI 201, hold down the recessed Reset button while applying power to the unit. Hold the button down until the Power LED blinks twice. The TLSI 201 enters factory firmware mode, and the LED flashes quickly. -
Page 33: Reset To Factory Defaults
Reset to Factory Defaults Activation To reset the unit to all factory default settings: Hold down the Reset button for about 9 seconds until the Power LED blinks three times (once at 3 seconds, again at 6 seconds, and again at 9 seconds). Release and press Reset momentarily (for <1 second) within 1 second. -
Page 34: Secure Sockets Layer (Ssl) Certificates
Secure Sockets Layer (SSL) Certificates Extron TouchLink Pro control system products ship with factory-installed SSL certificates created by Extron. The factory default SSL Certificate is a self-signed SSL Certificate, seen on products in the factory default state. If you want or are required to use a different SSL certificate at your installation site, please contact your IT department to obtain a valid signed SSL Certificate. -
Page 35: Certificate File Requirements
NOTES: You must run Toolbelt as an administrator. • Machine certificates require a private key file, which can be encrypted. • Certificate File Requirements PEM (Privacy-enhanced Electronic Mail) file types are ASCII encoded, and they are the required format for 802.1X authentication for the TouchLink Pro control systems. DER (Distinguished Encoding Rules) file types are binary encoded and can typically have several file extension variations, such as .crt and .cer. - Page 36 In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with...
