PCIe IP Prototyping Kit Installation Guide
1.1

Contents of PCIe IP Prototyping Kit

This section provides details about the contents of the prototyping kits.
Attention

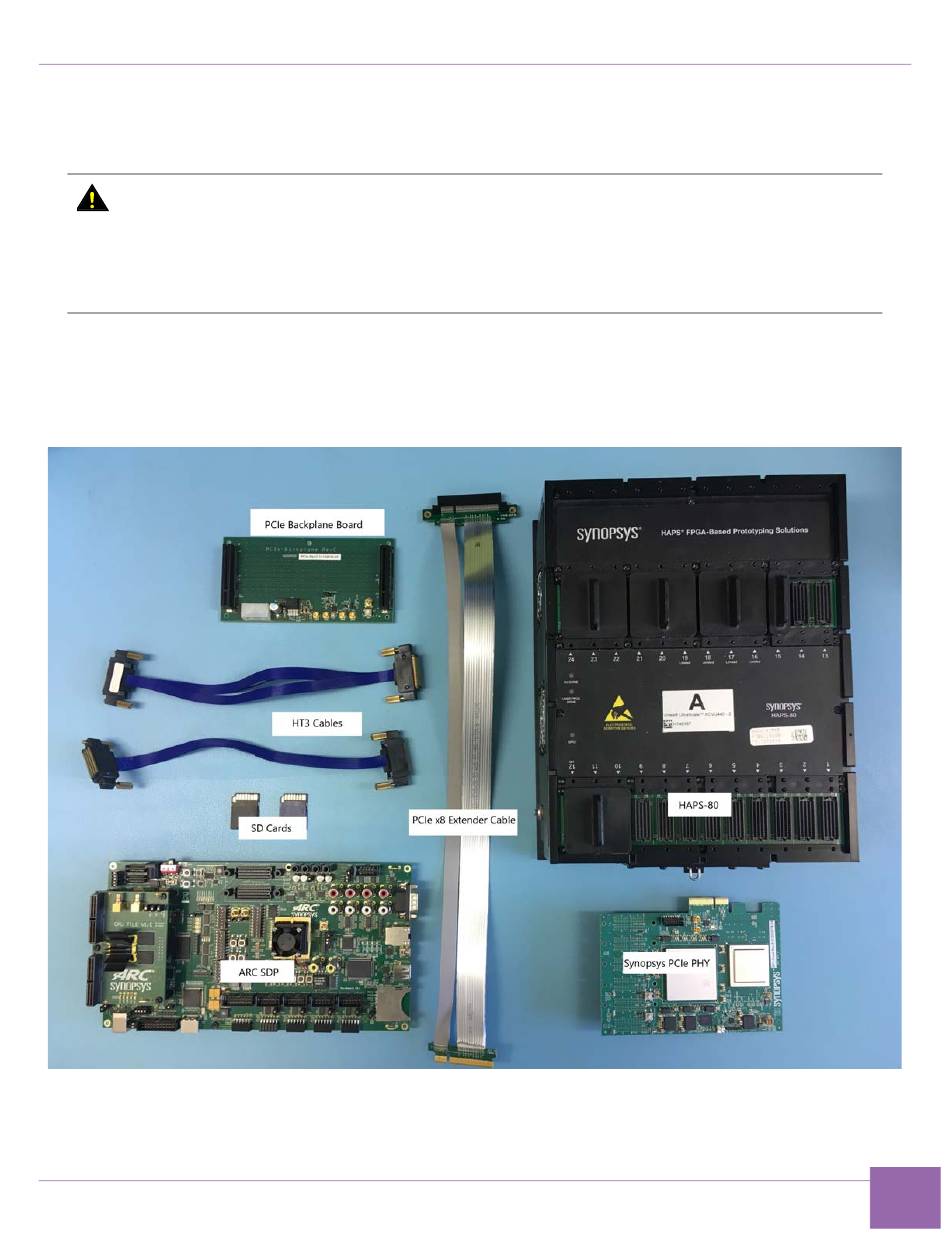

Figure 1-1 shows PCIe Root Complex IP Prototyping Kit recommended components for the kits using
Synopsys PHY on HAPS-80
Figure 1-1 PCIe Root Complex IP Prototyping Kit Components with Synopsys PHY on HAPS-80
5.60a
March 2020
All PCIe IP Prototyping Kits were developed for use with HAPS FPGA board.
The HAPS, ARC SDP Mainboard and the PHY Daughter Card contain static sensitive
.
devices Handle with care.
Electrostatic discharge (ESD) can damage the IP Prototyping Kit components. Perform
the procedures described in this section at an ESD workstation using an anti-static wrist
strap and a conductive foam pad.
