PCIe IP Prototyping Kit Installation Guide

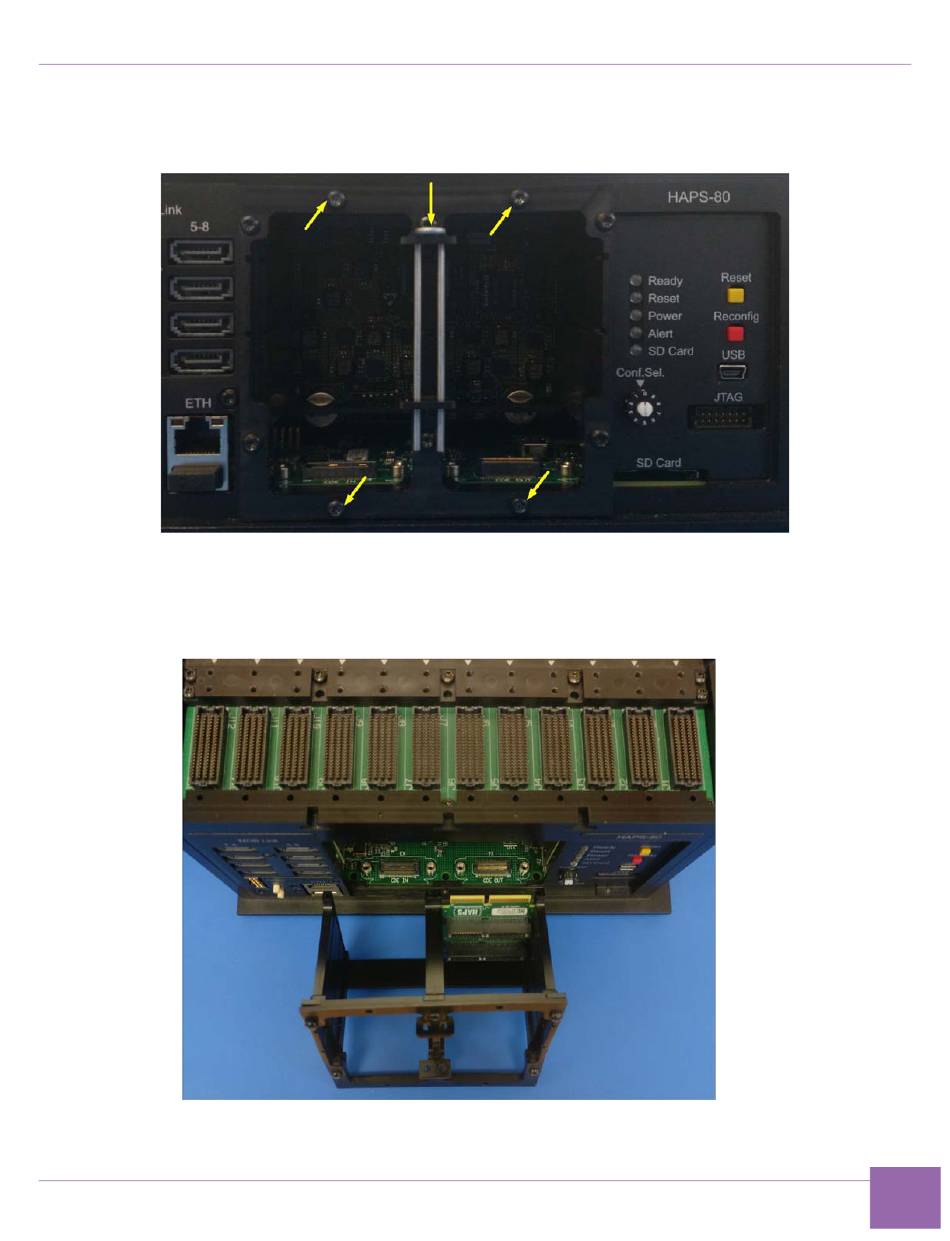

3. Remove the locker pin, and the four screws holding the MGB shelves, see
Figure 1-8 Detail of the HAPS-80 MGB Shelves
4. Remove the MGB Shelves from the HAPS-80 and insert the RISER1_MGB card in the MGB Shelves,
as shown in
Figure 1-9 Detail of the RISER1_MGB and HAPS-80
5.60a
March 2020
Figure 1-9.
Synopsys, Inc.
Setting Up Hardware Components
Figure 1-8.
