Setting Up Hardware Components
1.2

Hardware Setup

This section provides instructions for the following:

Setting Up HAPS-80

■
Setting Up PCIe Root Complex IP Prototyping Kits
■
Setting Up PCIe Endpoint IP Prototyping Kits
■
1.2.1 Setting Up HAPS-80
To set up the HAPS-80, perform the following tasks.
1. Insert the SD card containing the FPGA build files in the HAPS-80 board. The SD card slot is located
in the Front Panel, see

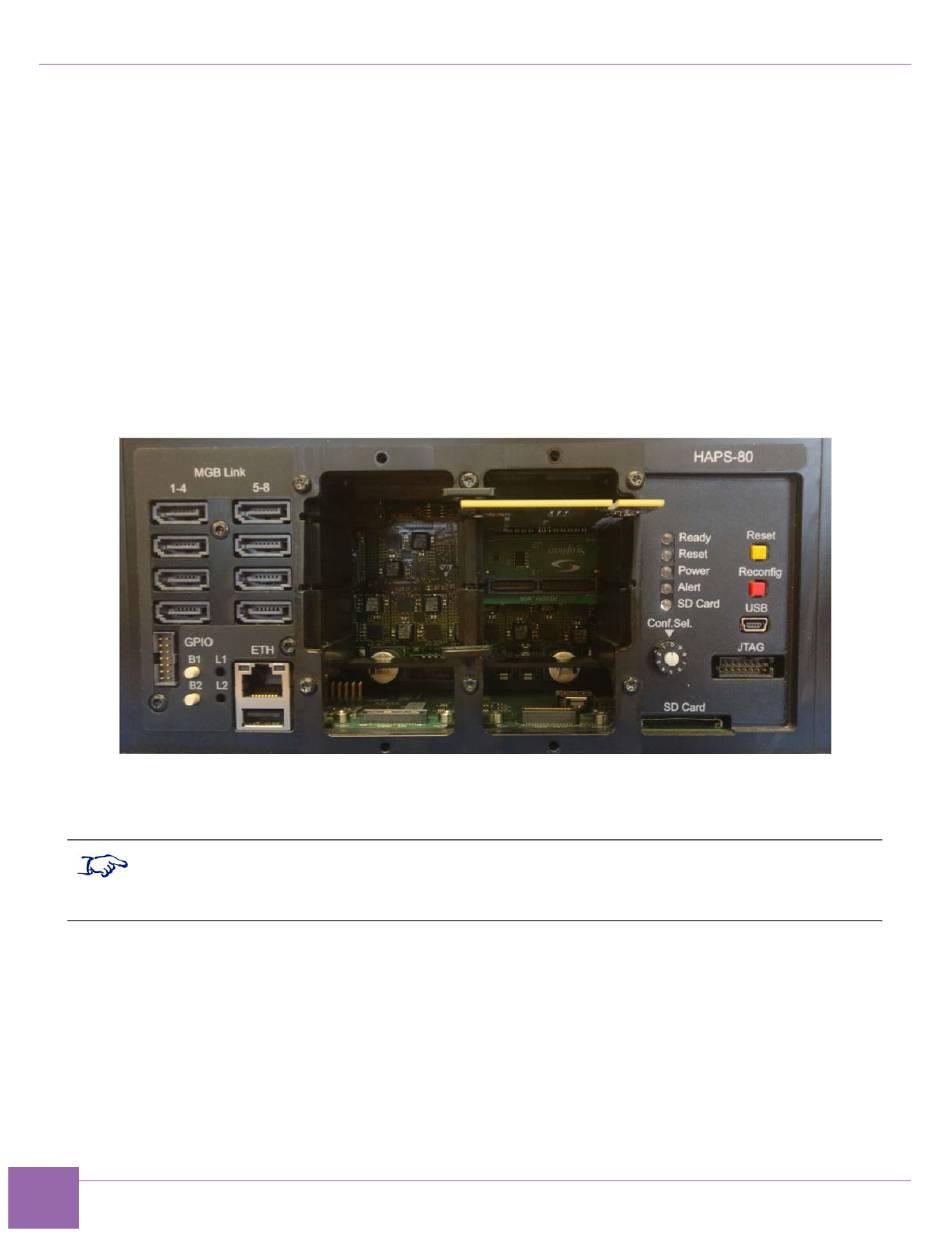

Figure 1-7 Detail of the HAPS-80 Front Panel
2. Use the HAPS-80 Conf. Sel. wheel to select the project you want to load. Conf. Sel. wheel position 0
targets the project within the autorun file on the SD card.
■
Note Note Note Note
■
16
SolvNetPlus
DesignWare
Figure 1-7.
If you are using the IP Prototyping Kit with the Xilinx PHY, follow the steps
If you are using the IP Prototyping Kit with the Synopsys PHY (E16, C10 or E32 PHY),
jump to step 8.
