PCIe IP Prototyping Kit Installation Guide
c. Take note of the USB Serial Port number (for example, COM4 as shown in

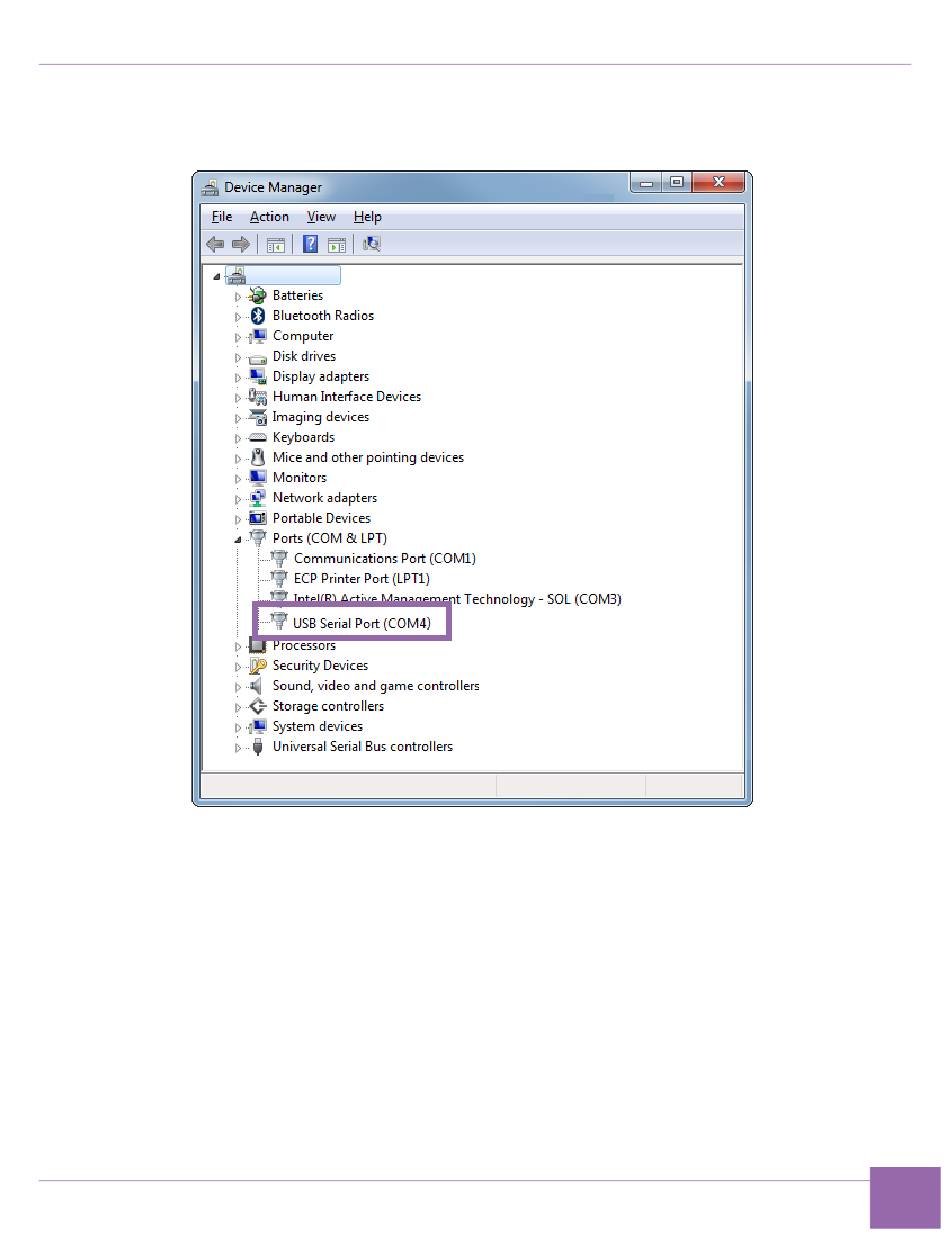

Figure 3-1 Device Manager Window
3. In the PuTTY configuration window, use the following configuration parameters. Before typing the
configuration parameters, change the connection type to "Serial".
Serial line: Use the USB Serial Port number (COM4 is used in this example)
❑
Speed: 115200
❑
5.60a
March 2020
Synopsys, Inc.
Installing Software Drivers
Figure 3-1).
