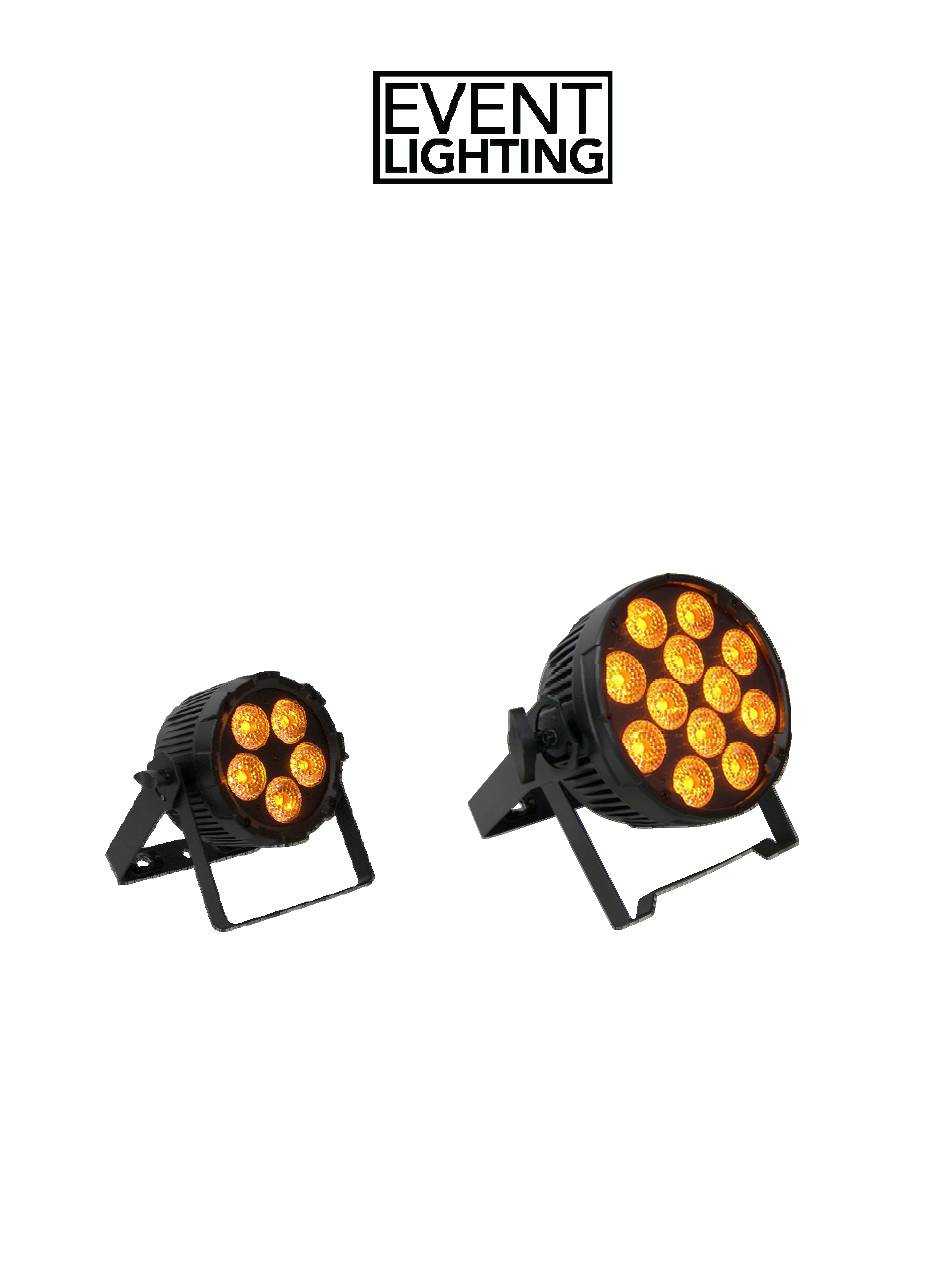

LED Pro Par with CW / WW / A LEDs
PAR5VW, PAR12VW
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.eventec.com.au
Ver 3.1 (02.05.2025)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PAR5VW
Summary of Contents for Event Lighting PAR5VW
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www. eventec.com.au CONTENTS Safety Instructions..................2 Product Installation ..................2 Diagrams......................3 Control Board Operation ................5 DMX chart....................... 6 Technical specifications.................. 8 Warranty......................8... -
Page 3: Safety Instructions
www. eventec.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
Lux Chart PAR5VW PAR12VW... - Page 5 Dimensions PAR5VW PAR12VW...
-
Page 6: Control Board Operation
www.eventec.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> Set DMX address DMX Cha <02> <03> <04> <06> <10> Select DMX channel mode Dim Mode <01> <02> <03> <04> <05> Select dimmer curve Manual Warm White<001>-<255> Set intensity of each colour separately for color mixing and Cool White <001>-<255>... -
Page 7: Dmx Chart
www.eventec.com.au Auto Run Mode Function Pr 01 White, Cool White, Amber colour switching Pr 02 Warm White Cool White switching Set auto run Pr 01 - Pr 02 Entered "Auto Pro" mode, use “Up” and “Down” button to select the built-in programs. Press “Enter" and use “Up” and “Down”... - Page 8 www.eventec.com.au 10 channels Mode Channel Value Function 000-255 Dimmer Coarse 000-255 Dimmer Fine 000-255 Warm White: 0% ~ 100% 000-255 Cool White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-015 No function (Shutter On) 016-119 Strobe Slow -> Fast(1-25HZ) 120-127 No function (Shutter On) 128-183...
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Model PAR5VW PAR12VW Dimensions and Weight Overall size LxWxH (mm) 207x227x120 263x293x98 Weight (kg) Power Power Supply 100~240V AC, 50/60 Hz Power Consumption (w) Power I/O Seetronic True 1 input connector Seetronic True 1 input/output connector Fuse...
