Product Appearance - Phocos Any-Grid Series User And Installation Manual

Product Appearance

No. Name
1 Cover
2 LED display / operational panel
3 DC switch
4 DC input port
5 Communication port
6 AC terminal
7 Cooling chamber
8 Back panel mounting screws
9 Name plate
10 Fan
www.phocos.com

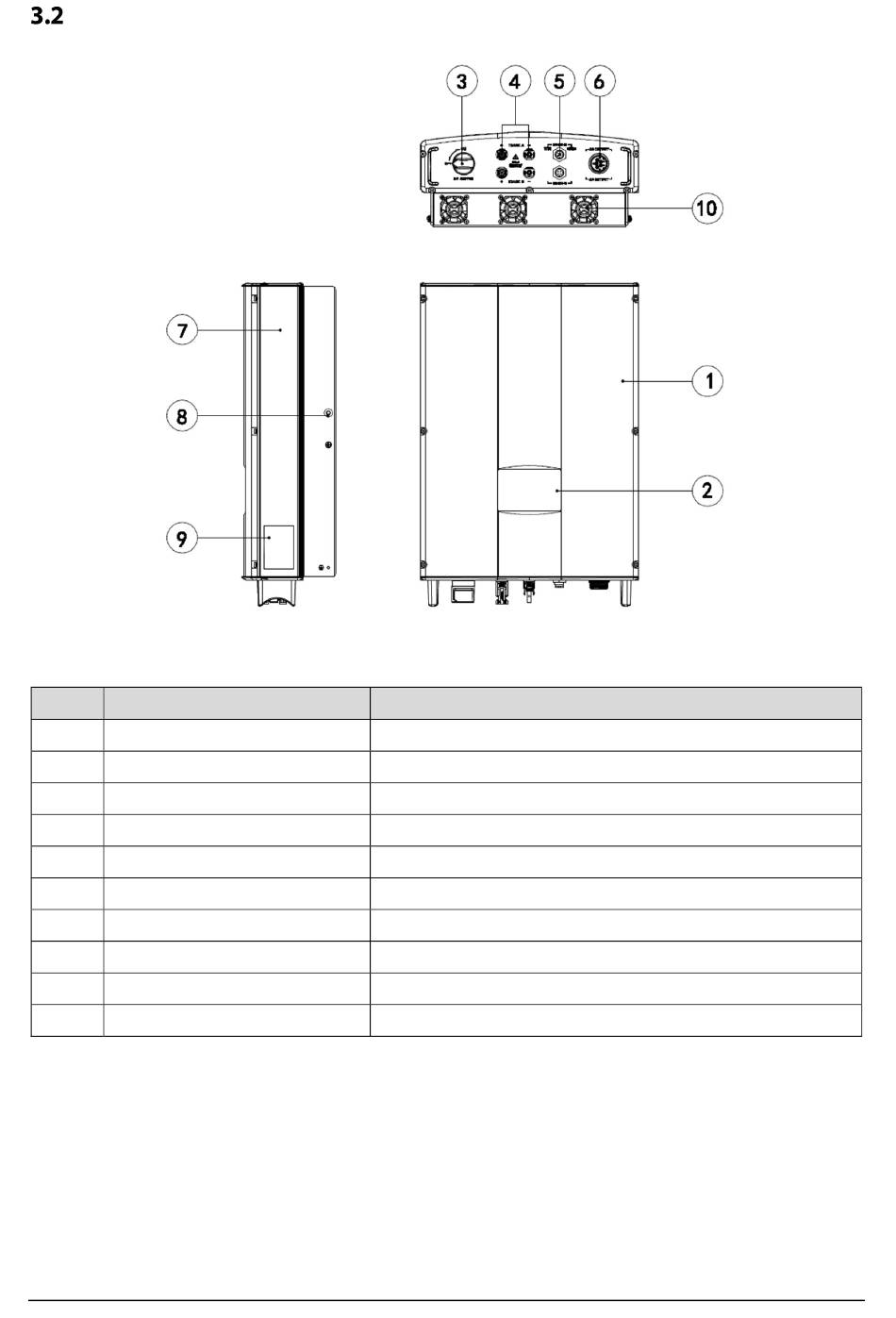

Figure 3: Product appearance
Description
LED indicators, LCD and keypad
On –Off of the DC input
For the connection of solar modules
RS485 and EXT communication port
For the connection of AC output
For rated parameters and safety precautions of the inverter
Only applicable for 8 and 10 kW nominal power units
