The main interface of the LCD screen is shown as the Figure above:
1.
The curve graph display area displays the power generation curve of current day.
2.
Text parameter display area displays the key running parameters of current inverter operation, which
displays three rows of parameters every time. Under running or sleep state of the inverter, the displayed
content rolls up per screen at 3s interval; press "UP" or "DOWN" to look through the displayed content.
3.
State display area displays current running state of the inverter, which can display "self-inspection", "grid-
connected power generation", "alarm", "fault", "OFF" state.
4.
Dynamic fault code and menu entrance. When the state display area displays "alarm" or "fault", the dynamic
fault code area will display corresponding fault code (displays up to 8 fault codes).
Functions Operation
Most of the parameters can be viewed and set through the LCD screen and operation panel.
Monitoring Parameters
Press "UP" and "DOWN" in the main interface to select "Monit Param", and then press "ENTER" to view the parameters
shown in Figure 27. Go the front or next page with "UP" and "DOWN" and return with "ESC".
History
Press "UP" and "DOWN" in the main interface to select "History", and then press "ENTER" to view the parameters which
are shown in Figure 28.
www.phocos.com

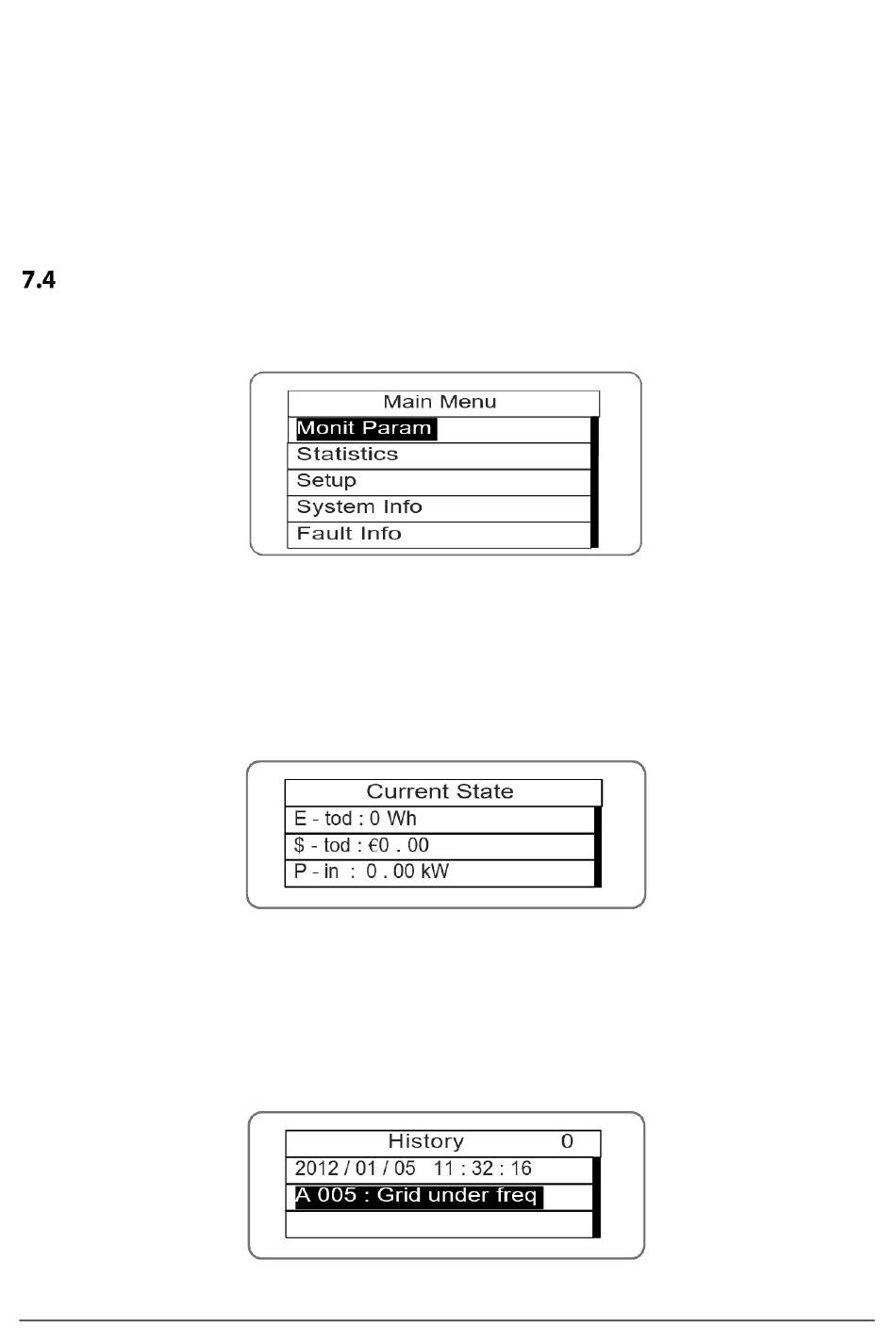

Figure 26: Main menu
Figure 27: Monitoring parameters
Figure 28: History parameters
