Optional Communication - Phocos Any-Grid Series User And Installation Manual

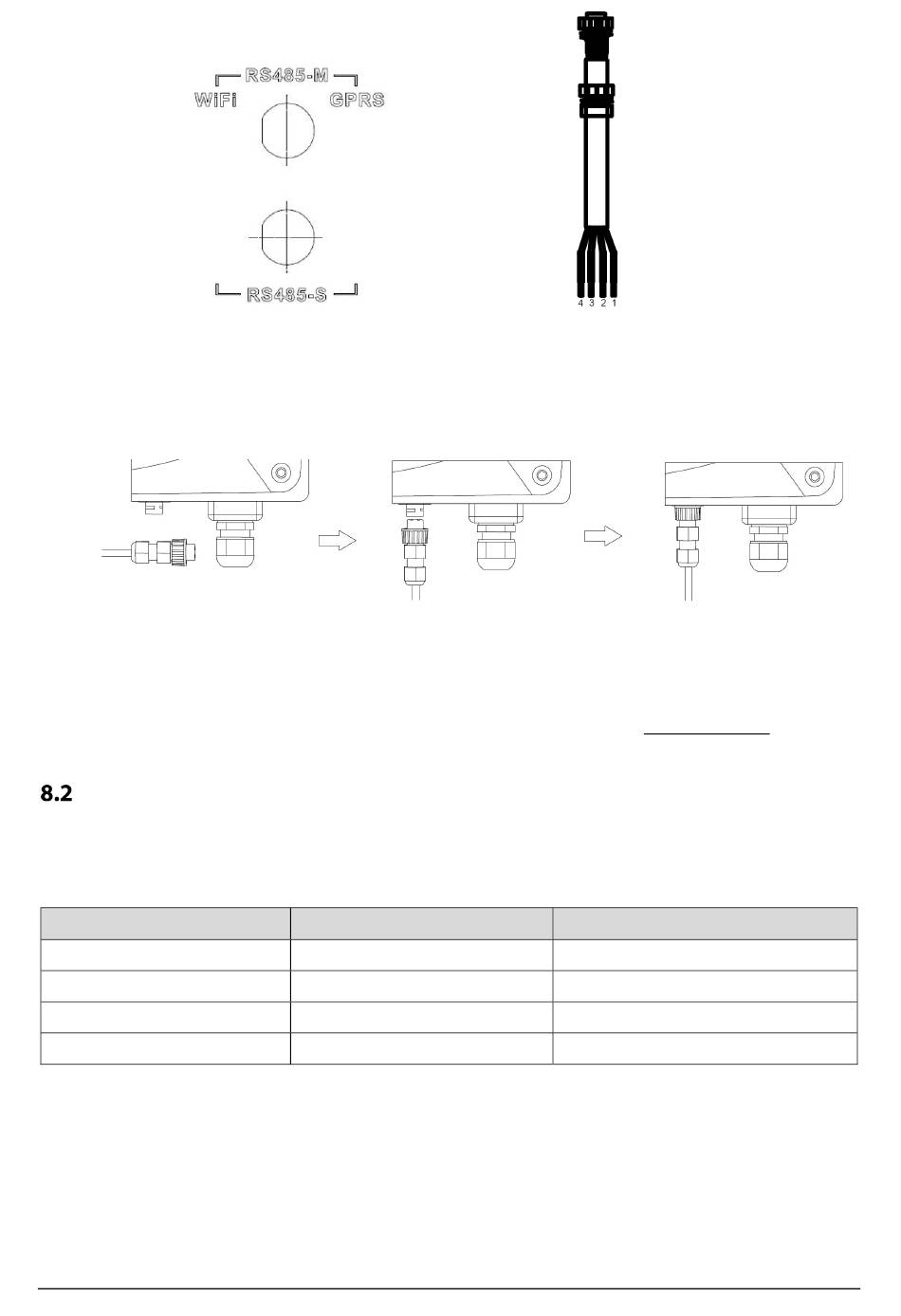

Figure 39: RS485 ports on inverter
Connection steps :
1. Connect the communication connector configured for the inverter to the RS485 terminal of the inverter, as
shown in Fig 41:
2. According to above, connect the communication connector pinout and the user's device, make sure the
connection is correct.
3. Please download the monitoring software and its operation instructions from www.phocos.com.

Optional Communication

The optional communication modes include Ethernet, WiFi, GPRS and ENET, which also need corresponding
communication parts and components as shown in the table below (sold separately). All operation parameters of the
inverter are output from port "RS485-M" to the communication devices, and finally transmitted to the monitoring
system as standard Ethernet, WiFi, GPRS and ENET signals.
Optional Accessory
Ethernet converter
WiFi converter
GPRS
ENET
Please ask for further instructions and how to purchase and use these accessories separately from your dealer.
www.phocos.com
Figure 40: Communication connector
Figure 41: RS485 cable connection
Inverter Port
RS485-M
RS485-M
RS485-M
RS485-M
Final Communication Type
RJ45 Ethernet port
WiFi signal
GPRS signal
Ethernet port
36 | P a g e
