Product Appearance; Nameplate - Phocos Any-Grid Series User And Installation Manual

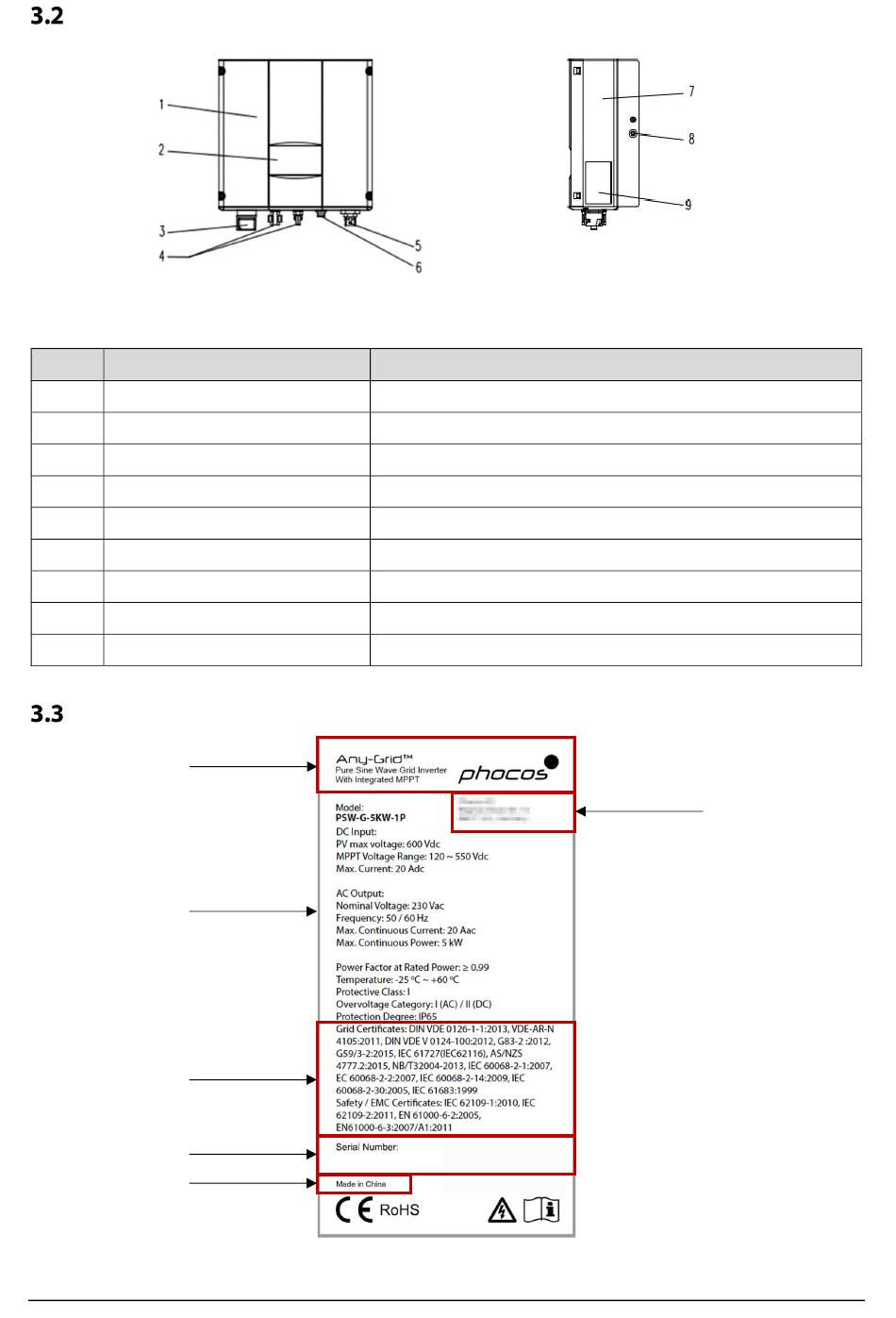

Product Appearance

No. Name
1 Cover
2 LED display panel
3 DC switch
4 DC input port
5 AC terminal
6 Communication port
7 Cooling chamber
8 Radiator
9 Name plate

Nameplate

1
3
4
5
6
www.phocos.com
Figure 3: Product appearance
Description
LED indicators
On –Off of the DC input
For the connection of solar modules
For the connection of AC output
RS485 and EXT communication port
For rated parameters and safety precautions of the inverter
Figure 4: Inverter nameplate
