Phocos Any-Grid Series User And Installation Manual page 16


Electrical connection must be carried out by professional technicians as wrong operation may
cause damage to the device, physical injuries or even death during system operation.

All the electrical installation must conform to the national and local electrical safety regulations.

Ensure all the cables are installed firmly according to the specified safety requirements and free
from any damage.

It is not allowed to close the AC and DC breakers before the inverter is electrically connected.

Read and follow the instructions provided in this section. Strictly follow the requirements when
operating.
Note

Always note the rated voltage and current defined in this manual. Never exceed the limits.
Connection of Solar Panels

PV strings can be connected to inverter only after protection measures which conform to local
electrical regulations are taken and the technical parameters in this manual are fulfilled.
www.phocos.com

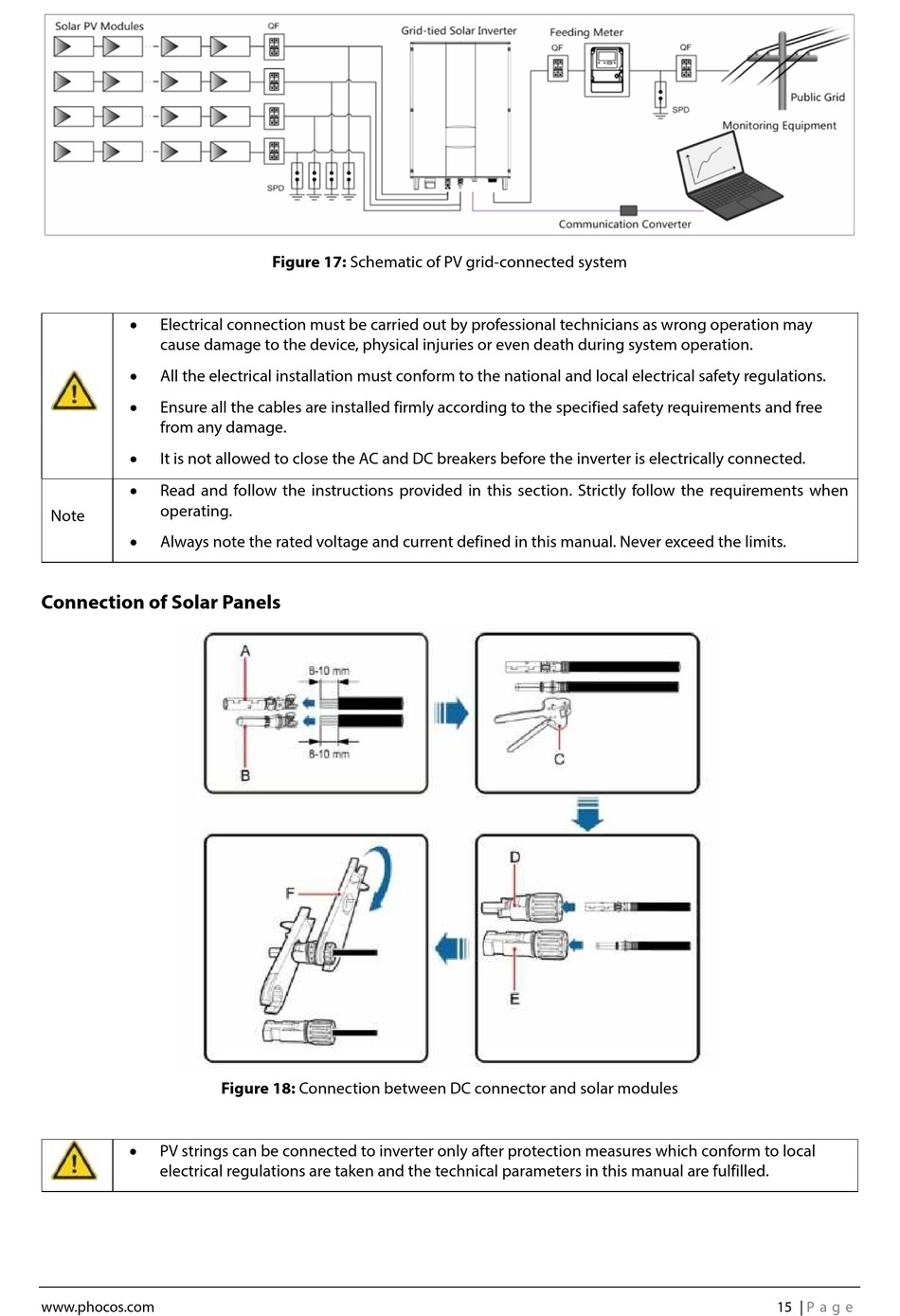

Figure 17: Schematic of PV grid-connected system
Figure 18: Connection between DC connector and solar modules
15 | P a g e
